1690563 - Simplicity Engine Driven Vacuum Collector Engine Driven Vacuum Collector (Single Wheel Model) Parts Diagram

Engine Driven Vacuum Collector

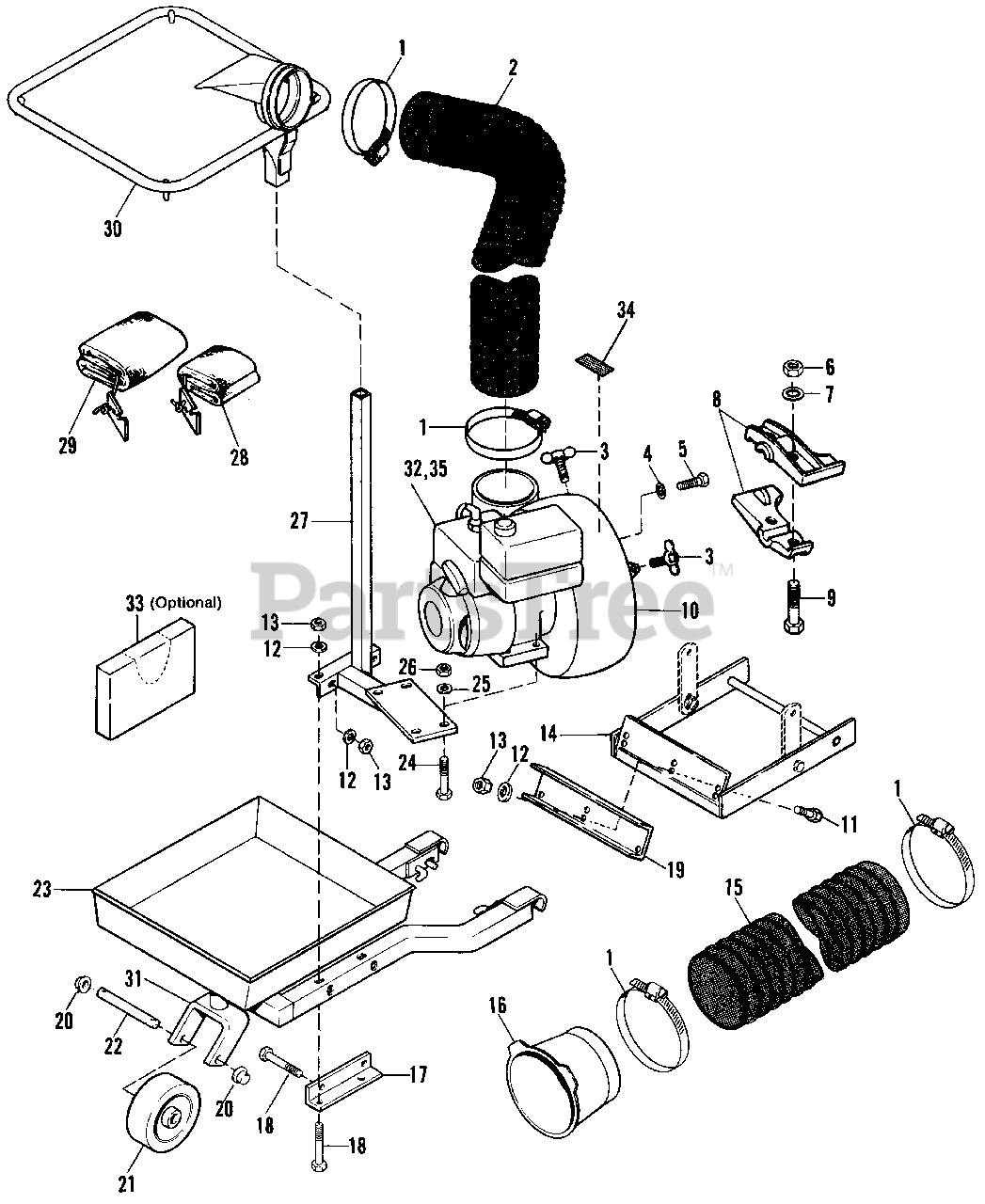

Engine Driven Vacuum Collector (Single Wheel Model) Parts Diagram

  • Title

1

Simplicity 921919

CLAMP, Hose

$

$

Not available

2

Simplicity 1678490SM

HOSE, Flexible

$216.99

$

Usually ships in 2-12 days

0

3

Simplicity 1960318SM

BOLT, Wing, 5/16-18 x 2

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 1923300SM

LOCKWASHER, Int. Tooth, 5/16

$3.99

$

In Stock, only 4 left!

0

5

Simplicity 1921515SM

CAPSCREW, Hex Hd. 5/16-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1916951SM

NUT, Hex, Full, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

7

Simplicity 1909589SM

LOCKWASHER, Int. Tooth, 1/2

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 1665665SM

BLADES, Blower (Pair)

$

$

Not available

9

Simplicity 1920328SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0

10

Simplicity 1667639

HOUSING, Blower

$

$

Not available

11

Simplicity 1921210SM

LOCKWASHER, 3/8
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

12

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1667631

HITCH ASSY.

$

$

Not available

15

Simplicity 1667646

HOSE, Lower

$

$

Not available

16

Simplicity 1667647SM

CONE, 7"

$159.99

$

Usually ships in 2-12 days

0

17

Simplicity 1667637

ANGLE, Reinforcing

$

$

Not available

18

Simplicity 1921972SM

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

19

Simplicity 1668405

CLAMP, Mount

$

$

Not available

20

Simplicity 1678563

PUSH NUT

$

$

Not available

21

Simplicity 1705342

WHEEL, Caster

$

$

Not available

22

Simplicity 1705341

AXLE, Caster

$

$

Not available

23

Simplicity 1678014

TRAY & SUPPORT ASSY.

$

$

Not available

24

Simplicity 1921221SM

CAPSCREW, Hex Hd. 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

25

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1667636

ENGINE MOUNT & UPRIGHT

$

$

Not available

28

Simplicity 1667644SM

TOP, Canvas Bag

$

$

Not available

29

Simplicity 1665673SM

BAG, Canvas

$

$

Not available

30

Simplicity 1667638

RING, Bag Support

$

$

Not available

31

Simplicity 1705343

FORK ASSY., Caster

$

$

Not available

32

ENGINE, 4 H.P., Briggs & Stratton

$

$

Not available

33

Simplicity 1685595

LINERS, Plastic Bag (Pkg. of 18)

$

$

Not available

34

DECAL, Warning

$

$

Not available

35

Simplicity 123104

MUFFLER

Note: Ref. No. 35 only used on models with serial numbers from 1101-1121 Model 100212 engine.

$

$

Not available
