1690531 - Simplicity 36" Mower Deck 36" Mower Deck & Arbor Group Parts Diagram

36" Mower Deck

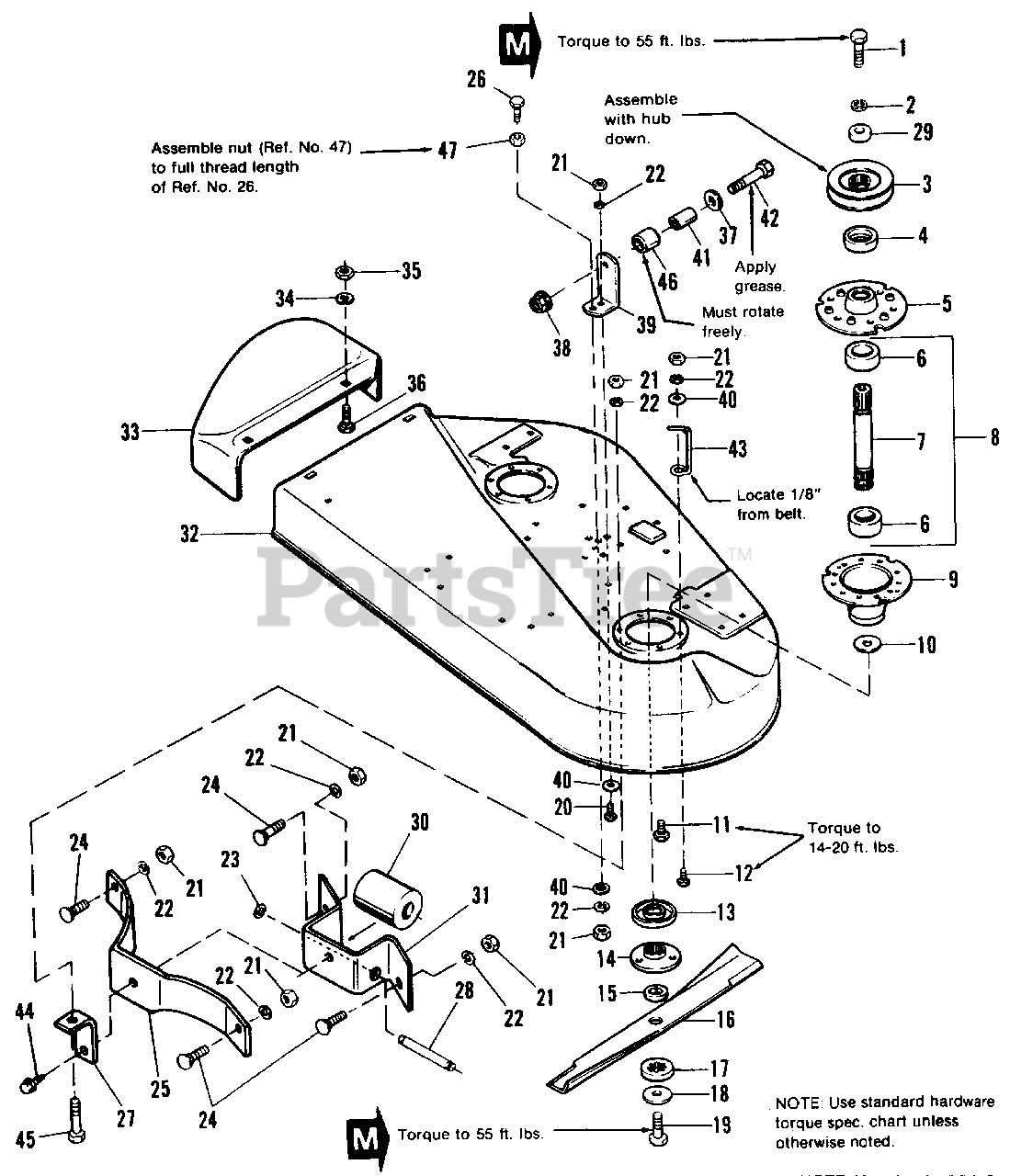

36" Mower Deck & Arbor Group Parts Diagram

  • Title

1

Simplicity 2823451

CAPSCREW, Hex, 7/16-14 x 1-1/2

$

$

Not available

2

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

3

Simplicity 1664858SM

DRIVE PULLEY ASSY.
(Superseded to 1664858ASM)

$76.99

$

Usually ships in 2-12 days

0

4

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

5

Simplicity 1655729ASM

HOUSING, Top

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

7

Simplicity 1685245SM

SHAFT

$74.99

$

In Stock, Qty 7

0

8

Simplicity 1685251SM

SHAFT & BEARING ASSY. (Incl. Ref. Nos. 6, 7 & 15)

$99.99

$

In Stock, Qty 13

0

9

Simplicity 1655728A

HOUSING, Bottom

$

$

Not available

10

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 2827477

SCREW, Taptite, 5/16-18 x 1

$

$

Not available

13

Simplicity 1700229SM

SHIELD, Lower Grass

$10.99

$

In Stock, Qty 20+

0

14

Simplicity 1655777SM

ADAPTOR, Blade

$25.99

$

In Stock, Qty 20+

0

15

Simplicity 1672132SM

COLLAR, Mower Arbor

$12.99

$

In Stock, Qty 5

0

16

Simplicity 1657589ASM

BLADE

$25.99

$

In Stock, Qty 5

0

17

Simplicity 1656927SM

WASHER, Spline

$8.99

$

In Stock, Qty 17

0

18

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

19

Simplicity 2823491

CAPSCREW, Hex, 7/16-14 x 1
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 2821333

CAPSCREW. Hex, 5/16-18 x 1

$

$

Not available

21

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

Note: Ref. Nos. 21 & 22 (Qty. 1 each), 25, 27, 31 & 45 included in Baffle Kit Mfg. No. 1685188 for service.

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

Note: Ref. Nos. 21 & 22 (Qty. 1 each), 25, 27, 31 & 45 included in Baffle Kit Mfg. No. 1685188 for service.

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 2827793SM

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

24

Simplicity 2820562

BOLT, Carriage. 5/16-18 x 3/4

$

$

Not available

25

Simplicity 1685239SM

BAFFLE

Note: Ref. Nos. 21 & 22 (Qty. 1 each), 25, 27, 31 & 45 included in Baffle Kit Mfg. No. 1685188 for service.

$111.99

$

Usually ships in 2-12 days

0

26

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

27

Simplicity 1668500A

BRACKET, Mower
(Superseded to 1668500SM)

Note: Ref. Nos. 21 & 22 (Qty. 1 each), 25, 27, 31 & 45 included in Baffle Kit Mfg. No. 1685188 for service.

$19.99

$

In Stock, only 1 left!

0

28

Simplicity 1603205SM

SHAFT, Center Roller

$29.99

$

Usually ships in 2-12 days

0

29

Simplicity 1933263SM

WASHER, 29/64
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

30

Simplicity 1668513SM

ROLLER, Small

$10.99

$

In Stock, Qty 20+

0

31

Simplicity 1668361

BRACKET, Roller, Center

Note: Ref. Nos. 21 & 22 (Qty. 1 each), 25, 27, 31 & 45 included in Baffle Kit Mfg. No. 1685188 for service.

$

$

Not available

32

Simplicity 1685102SM

HOUSING, 36"

$

$

Not available

33

Simplicity 1702190SM

DEFLECTOR
(Superseded to 1702190ASM)

$112.99

$

Usually ships in 2-12 days

0

34

Simplicity 1916965SM

LOCKWASHER. 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

35

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 6

0

36

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

37

Simplicity 2156065

WASHER, Plain

$

$

Not available

38

Simplicity 2830645

LOCKNUT, Hex, Flange, 3/8-16

$

$

Not available

39

Simplicity 1667153SM

SUPPORT, Up-Stop

$9.99

$

Usually ships in 2-12 days

0

40

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

41

Simplicity 1669585SM

SPACER

$6.49

$

Usually ships in 2-12 days

0

42

Simplicity 2822606

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4

$

$

Not available

43

Simplicity 1657660SM

STOP, Belt

$22.99

$

Usually ships in 2-12 days

0

44

Simplicity 2824856

SCREW, Taptite, 5/16-18 x 1/2

$

$

Not available

45

Simplicity 2821977

CAPSCREW. Hex Hd., 5/16-18 x 1-1/4

Note: Ref. Nos. 21 & 22 (Qty. 1 each), 25, 27, 31 & 45 included in Baffle Kit Mfg. No. 1685188 for service.

$

$

Not available

46

Simplicity 1667154SM

ROLLER

$20.99

$

Usually ships in 2-12 days

0

47

Simplicity 2820161

NUT, Hex, Jam, 5/16-18

$

$

Not available
