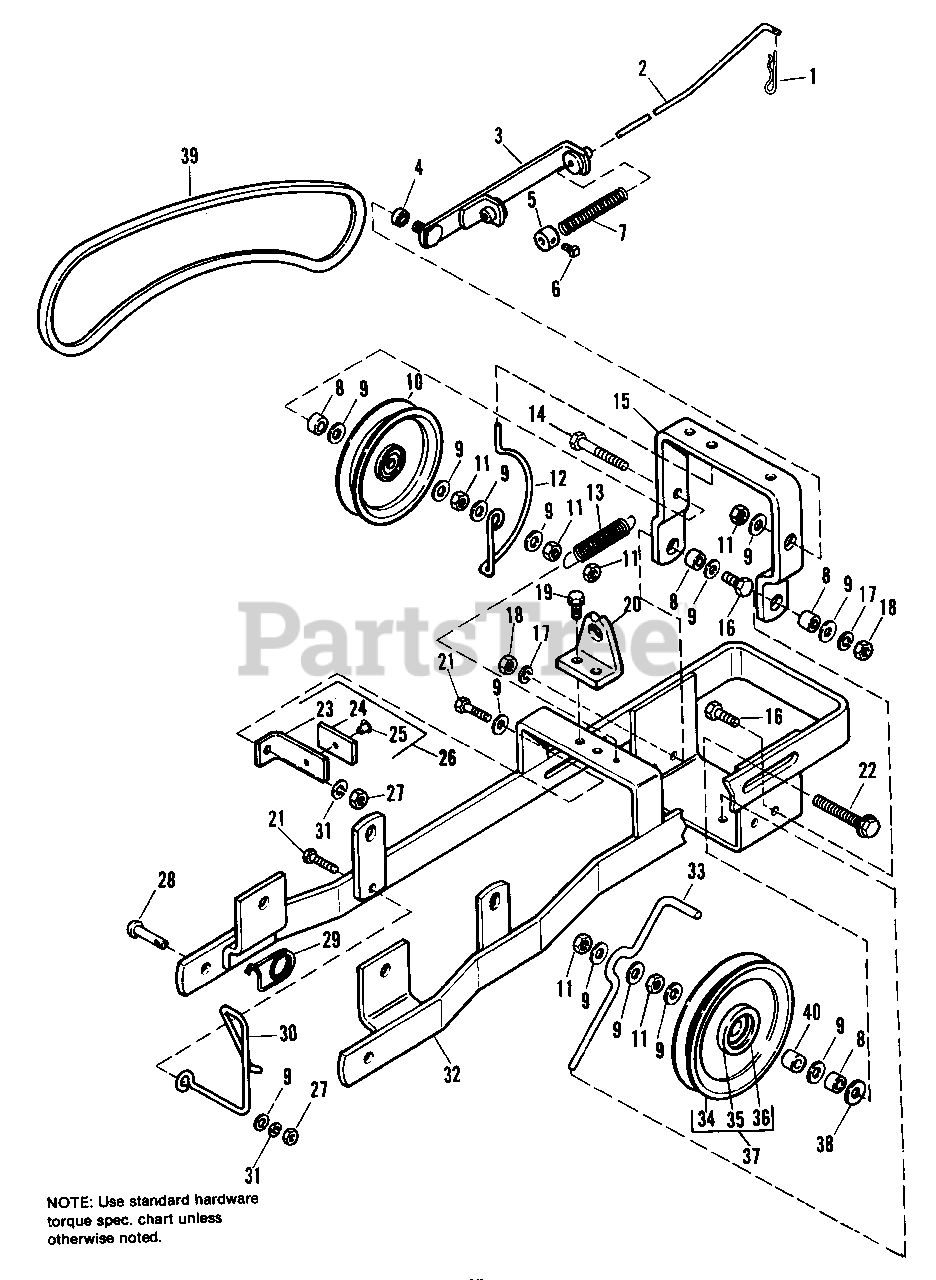

1690513 - Simplicity 42" Snow Thrower Attachment 36" & 42" Hitch & PTO Group Parts Diagram

42" Snow Thrower Attachment

36" & 42" Hitch & PTO Group Parts Diagram

  • Title

1

Simplicity 1960074SM

CLIP, Spring
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 1674193SM

ROD

$22.99

$

Usually ships in 2-12 days

0

3

Simplicity 1665194SM

ROD GUIDE ASSY.

$80.99

$

Usually ships in 2-12 days

0

4

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 1 left!

0

5

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

6

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

7

Simplicity 2163103SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

8

Simplicity 2158227SM

SPACER

$32.99

$

In Stock, only 1 left!

0

9

Simplicity 2817642

WASHER, 5/16

$

$

Not available

10

Simplicity 2171247SM

PULLEY

$51.99

$

In Stock, Qty 20+

0

11

Simplicity 2828731

LOCKNUT, Hex, Jam, 3/8-16

$

$

Not available

12

Simplicity 1667820SM

STOP, Belt

$

$

Not available

13

Simplicity 2159106SM

SPRING, Tension
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

14

Simplicity 2833685

CAPSCREW, Hex, 3/8-16 x 2-1/2

$

$

Not available

15

Simplicity 1704731

BRACKET, Pivot
(Superseded to 1704731ASM)

$38.99

$

Usually ships in 2-12 days

0

16

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

18

Simplicity 2816950SM

NUT, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

19

Simplicity 2825359

SCREW, Taptite, 5/16- 18 x 3/4

$

$

Not available

20

Simplicity 1665193SM

PIVOT

$7.99

$

Usually ships in 2-12 days

0

21

Simplicity 2821977

CAPSCREW, Hex, 5/16-18 x 1-1/4

$

$

Not available

22

Simplicity 2834653

SCREW, Whizlock, 3/8-16 x 23

$

$

Not available

23

Simplicity 1665195SM

BRACKET, Brake

$4.49

$

Usually ships in 2-12 days

0

24

Simplicity 1610590SM

PAD, Brake

$48.99

$

Usually ships in 2-12 days

0

25

Simplicity 2825160SM

RIVET

$4.49

$

In Stock, Qty 8

0

26

Simplicity 1666188SM

BRACKET ASSY., Brake (Incl. Ref. Nos. 23, 24 & 25)

$

$

Not available

27

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 14

0

29

Simplicity 2176012SM

CLIP, Spring, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1666149SM

STOP, Belt

$28.99

$

Usually ships in 2-12 days

0

31

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1665199SM

PUSH BAR ASSY.

$292.99

$

Usually ships in 2-12 days

0

33

Simplicity 1666191SM

STOP, Belt

$16.99

$

Usually ships in 2-12 days

0

34

PULLEY (Order Ref. No. 37)

$

$

Not available

35

Simplicity 2827695SM

RING, Retaining

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

37

Simplicity 1666287ASM

PULLEY ASSY., w/Bearings (Incl. Ref. Nos. 34, 35 & 36)

$91.99

$

Usually ships in 2-12 days

0

38

Simplicity 2822755

WASHER, 13/32 x 1 x 10 Ga.
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

39

Simplicity 1703466SM

BELT, V (Drive)

$64.99

$

In Stock, only 1 left!

0

40

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0
