1690513 - Simplicity 42" Snow Thrower Attachment 36" & 42" Drive Group Parts Diagram

42" Snow Thrower Attachment

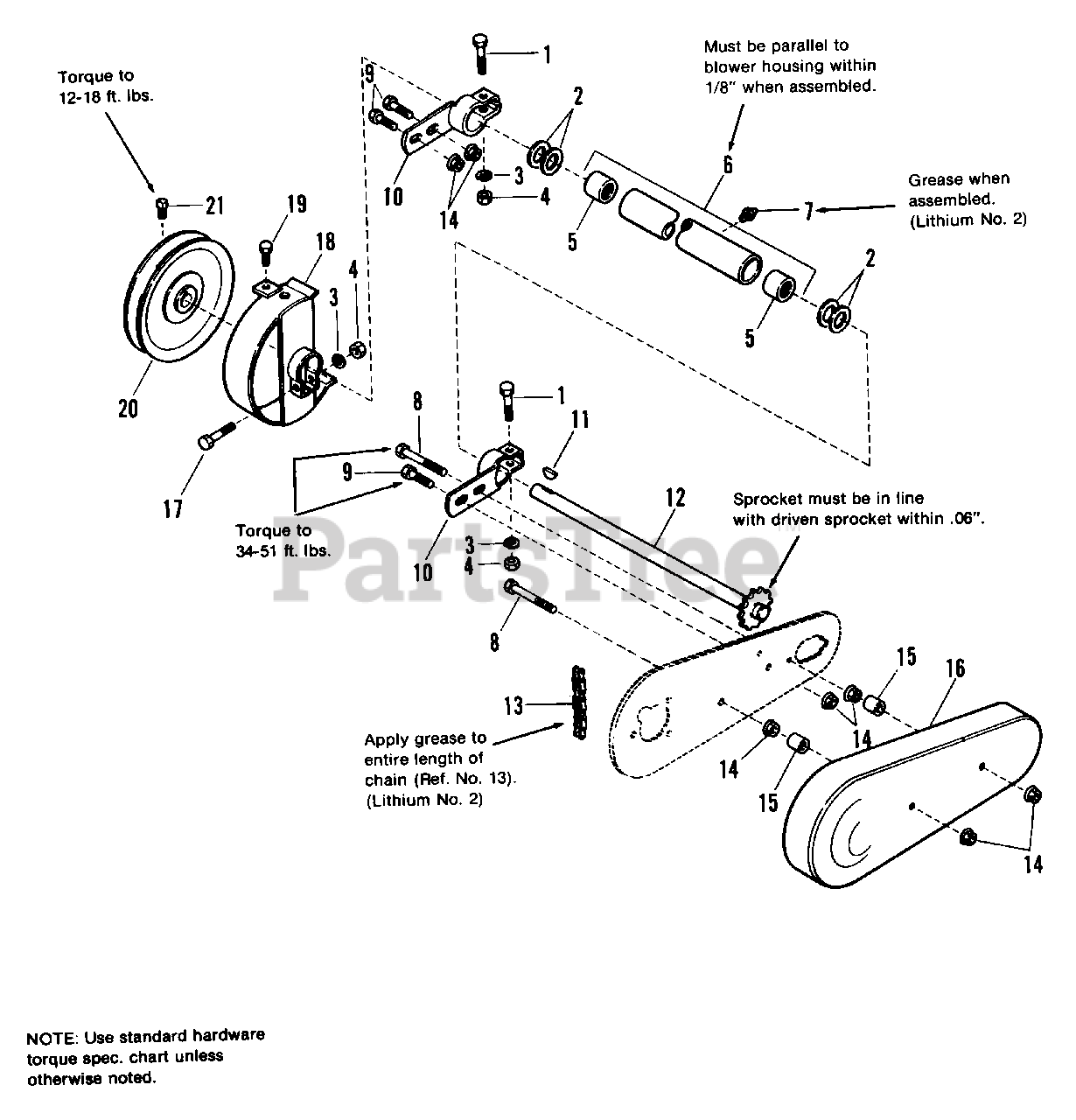

36" & 42" Drive Group Parts Diagram

  • Title

1

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 7

0

3

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1917372SM

NUT, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, Qty 8

0

6

Simplicity 1651084

BEARING & HOUSING ASSY. (1690403 Only)

$

$

Not available

6

Simplicity 1650955SM

BEARING & HOUSING ASSY. (1690513 Only)

$164.99

$

Usually ships in 2-12 days

0

7

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

8

Simplicity 933254

SCREW, Whizlock, 3/8-16 x 2-1/4

$

$

Not available

9

Simplicity 2828728

SCREW, Whizlock, 3/8-16 x 1

$

$

Not available

10

Simplicity 1666145ASM

CLAMP, Housing

$38.99

$

Usually ships in 2-12 days

0

11

Simplicity 2805123SM

KEY, Woodruff, #9, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

12

Simplicity 2106860SM

SHAFT ASSY. (1690403 Only)

$70.99

$

Usually ships in 2-12 days

0

12

Simplicity 2106757SM

SHAFT ASSY. (1690513 Only)

$240.99

$

Usually ships in 2-12 days

0

13

Simplicity 2171242SM

CHAIN

$66.99

$

Usually ships in 2-12 days

0

14

Simplicity 2828352

LOCKNUT, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

15

Simplicity 2121121

SPACER

$

$

Not available

16

Simplicity 2171220

GUARD, Chain

$

$

Not available

17

Simplicity 2821221

CAPSCREW, Hex Hd, 5/16-18 x 1-1/2

$

$

Not available

18

Simplicity 1668100SM

BELT GUARD ASSY.

$

$

Not available

19

Simplicity 2824856

SCREW, Tapping, 5/16-18 x 1/2

$

$

Not available

20

Simplicity 2171248SM

PULLEY

$103.99

$

Usually ships in 2-12 days

0

21

Simplicity 2828721

SETSCREW, Sq. Hd., 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 10

0
