1690503 - Simplicity PTO Driven Vacuum Collector P.T.O. Driven Vacuum Collector - Mounting Group Parts Diagram

PTO Driven Vacuum Collector

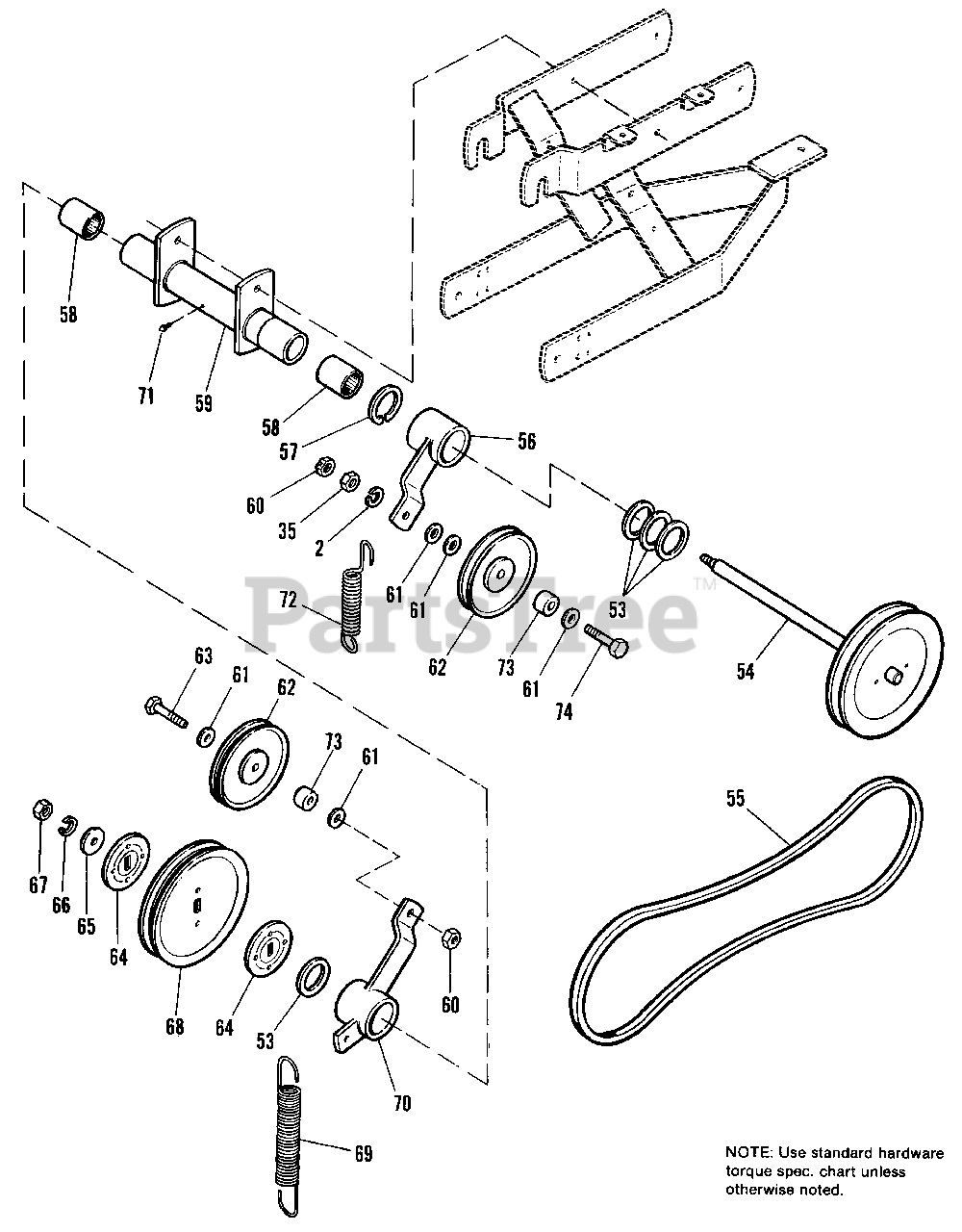

P.T.O. Driven Vacuum Collector - Mounting Group Parts Diagram

  • Title

53

Simplicity 1960061SM

WASHER

$7.99

$

Usually ships in 2-12 days

0

54

Simplicity 1669157

SHAFT ASSY.

$

$

Not available

55

Simplicity 1713549SM

V-BELT
(Superseded to 1727773SM)

$34.99

$

In Stock, only 3 left!

0

56

Simplicity 164199

ARM ASSY., Tension

$

$

Not available

57

Simplicity 2832726SM

RING, Retaining

$2.99

$

Usually ships in 2-12 days

0

58

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, Qty 8

0

59

Simplicity 1669155

HOUSING ASSY., Bearing (Incl. Ref. No. 58, Qty. 2)

$

$

Not available

60

Simplicity 2823428

LOCKNUT, Hex, 3/8-16

$

$

Not available

61

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

62

Simplicity 1685150SM

PULLEY ASSY., Idler

$34.99

$

In Stock, Qty 20+

0

63

Simplicity 1921969SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

64

Simplicity 2158196SM

WASHER, Special

$5.49

$

Usually ships in 2-12 days

0

65

Simplicity 1924361SM

WASHER, Plain, 7/16
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

66

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

67

Simplicity 1918213SM

NUT, Hex, Full, 7/16-14

$4.99

$

In Stock, only 2 left!

0

68

Simplicity 158195

PULLEY

$

$

Not available

69

Simplicity 2159106SM

SPRING, Tension
(Superseded to 703144)

$5.99

$

In Stock, Qty 5

0

70

Simplicity 164195

ARM ASSY., Idler

$

$

Not available

71

Simplicity 2814687

FITTING, Grease

$

$

Not available

72

Simplicity 2159159SM

SPRING

$37.99

$

In Stock, only 1 left!

0

73

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

74

Simplicity 1923701SM

CAPSCREW, Hex Hd., 3/8-16 x 2
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0
