1690413 - Simplicity 48" Mower Deck Arbor Group (42" & 48" Mower) Parts Diagram

48" Mower Deck

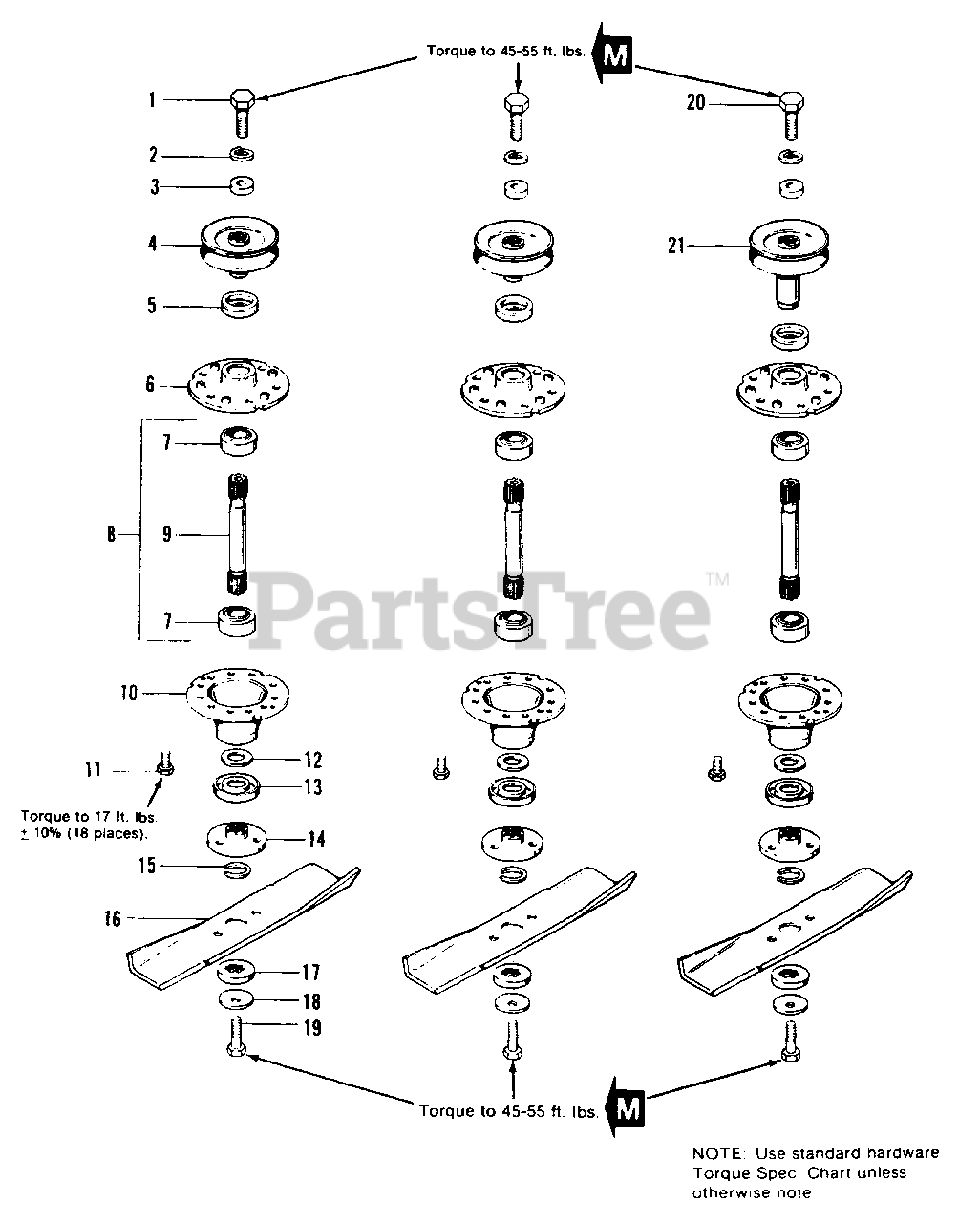

Arbor Group (42" & 48" Mower) Parts Diagram

  • Title

1

Simplicity 2821212

CAPSCREW, Hex, 7/16-14 x 1-1/2

$

$

Not available

2

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

3

Simplicity 1933263SM

WASHER, Plain, 29/64 x 1-1/4 x 1/4
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

4

Simplicity 1665476SM

PULLEY ASSY.
(Superseded to 1665476ASM)

$90.99

$

Usually ships in 2-12 days

0

5

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

6

Simplicity 1655729ASM

HOUSING TOP

$14.99

$

Usually ships in 2-12 days

0

7

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

8

Simplicity 1685251SM

SHAFT & BEARING ASSY.

$99.99

$

In Stock, Qty 13

0

9

SHAFT, Arbor (See Ref. No. 8)

$

$

Not available

10

Simplicity 1655728A

HOUSING, Bottom

$

$

Not available

11

Simplicity 1664847SM

SCREW, Hex, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1700229SM

SHIELD, Grass

$10.99

$

In Stock, Qty 20+

0

14

Simplicity 1655777SM

BLADE, Adapter

$25.99

$

In Stock, Qty 20+

0

15

Simplicity 1657528SM

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1656146ASM

BLADE, 48" Mower

$27.99

$

In Stock, only 3 left!

0

16

Simplicity 1656147ASM

BLADE, 42" Mower

$21.99

$

In Stock, only 3 left!

0

17

Simplicity 656927

WASHER, Spline

$

$

Not available

18

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

19

Simplicity 2820676SM

CAPSCREW, Hex, 7/16-14 x 1

$4.49

$

In Stock, Qty 6

0

20

Simplicity 2826111

CAPSCREW, Hex, 7/16-14 x 3-1/2

$

$

Not available

21

Simplicity 1665347ASM

PULLEY ASSY

$104.99

$

In Stock, only 1 left!

0
