1690392 - Simplicity Power Lift Kit Power Lift Kit Parts Diagram

Power Lift Kit

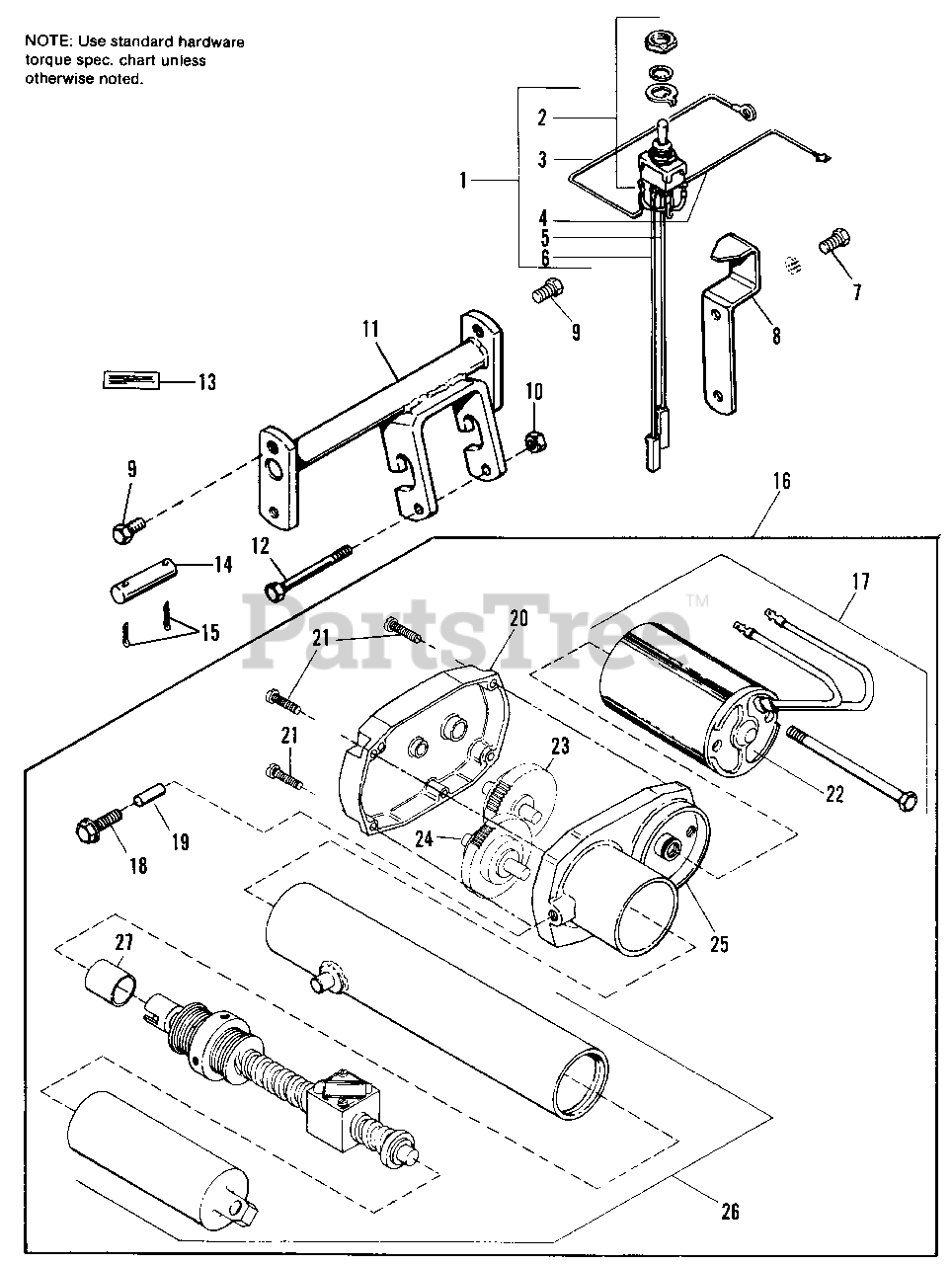

Power Lift Kit Parts Diagram

  • Title

1

Simplicity 1651166

HARNESS ASSY., Electric Lift

$

$

Not available

2

Simplicity 2171683SM

SWITCH ASSY., Electric

$106.99

$

Usually ships in 2-12 days

0

3

Simplicity 2171969

WIRE, Switch-to-Ground

$

$

Not available

4

Simplicity 1651165

WIRE, Switch-to-Ignition

$

$

Not available

5

Simplicity 171950

WIRE, Switch-to-Lift

$

$

Not available

6

Simplicity 171951

WIRE, Switch-to-Lift

$

$

Not available

7

Simplicity 1922586SM

CAPSCREW, Hex, 3/8-16 x 5/8

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 172430

STOP, Pointer

$

$

Not available

9

Simplicity 1923683SM

SCREW, Hex Hd., Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

10

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

11

Simplicity 172145

SUPPORT ASSY., Pump

$

$

Not available

12

Simplicity 1926106SM

CAPSCREW, Hex Hd., 5/16-18 x 3-1/4

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 175527

DECAL, Lift Control

$

$

Not available

14

Simplicity 171025

PIN

$

$

Not available

15

Simplicity 1918447SM

COTTER PIN, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1704922SM

POWER ACTUATOR ASSY.

$1481.99

$

Usually ships in 2-12 days

0

17

Simplicity 1663966

12 VOLT, D.C. MOTOR KIT

$

$

Not available

18

Simplicity 1605773

CAPSCREW, Thread Forming

$

$

Not available

19

Simplicity 1605778SM

PIN, Drive

$6.99

$

Usually ships in 2-12 days

0

20

Simplicity 1664757

COVER, Housing

$

$

Not available

21

Simplicity 1928589

SCREW, Phillips Hd., #10-24 x 1

$

$

Not available

22

Simplicity 1664756SM

BRUSH, w/Spring, 3/8 x 1/4 x 1/4 (For new style motor)

Note: Take note of size of brushes before ordering required parts. For old style motors, spring and brush must be ORDERED SEPARATELY.

$26.99

$

Usually ships in 2-12 days

0

22

Simplicity 1663249SM

BRUSH, 3/8 x 7/32 x 7/32 (For old style motor)

$

$

Not available

22

Simplicity 1663250SM

SPRING (For old style motor)

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 1704924SM

GEAR ASSY., 2nd & 3rd
(Superseded to 1704922SM)

$1481.99

$

Usually ships in 2-12 days

0

24

Simplicity 1704922SM

OUTPUT GEAR & SLIP CLUTCH ASSY.

$1481.99

$

Usually ships in 2-12 days

0

25

Simplicity 1664758

HOUSING, Motor

$

$

Not available

26

Simplicity 1664759

BALL SCREW ASSY.

$

$

Not available

27

Simplicity 1605779

SLEEVE

$

$

Not available
