1690388 - Simplicity Hitch & Lift Kit Hitch & Lift Group Parts Diagram

Hitch & Lift Kit

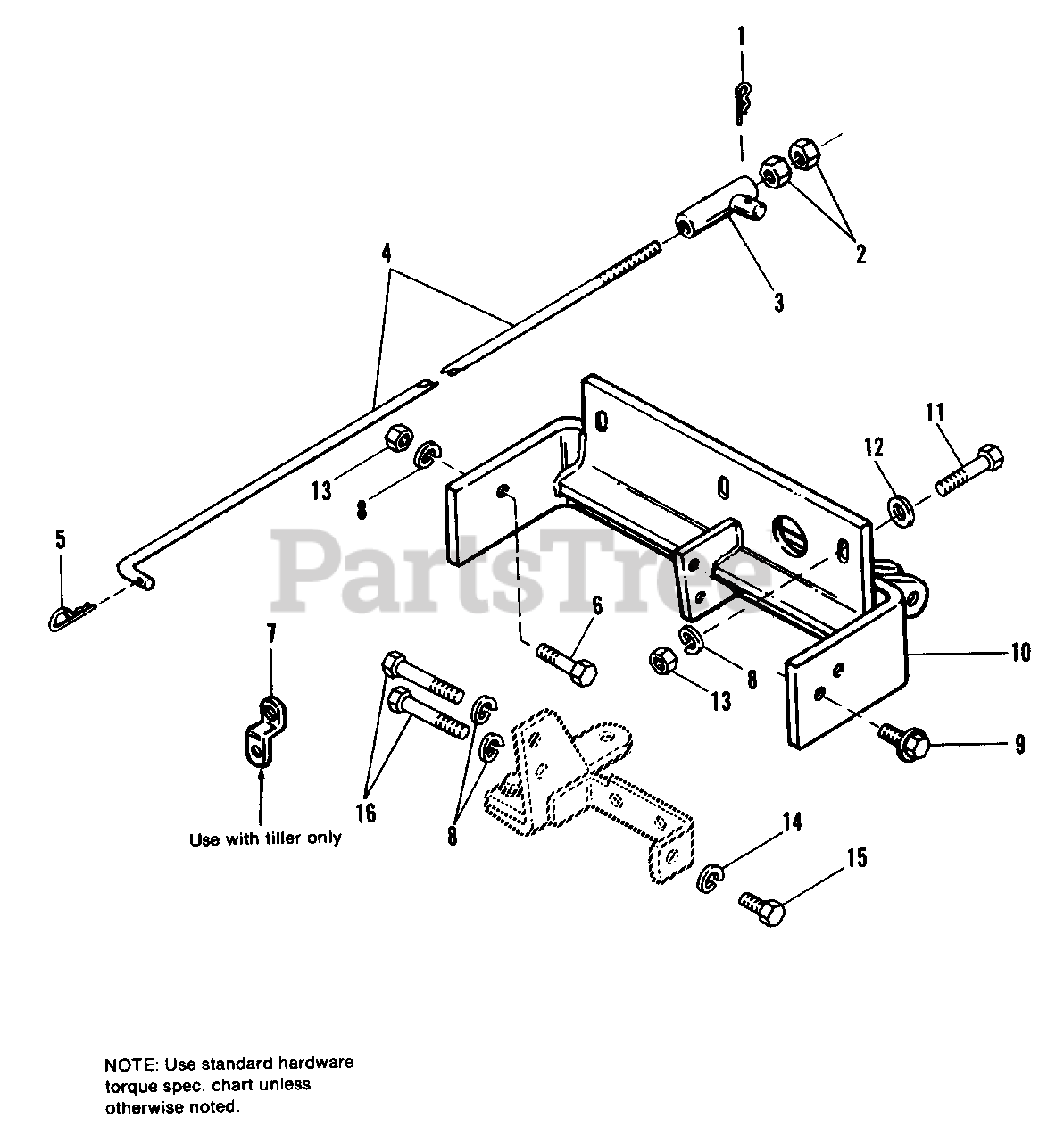

Hitch & Lift Group Parts Diagram

  • Title

1

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 2819262

NUT, Hex, Jam, 1/2 x 20

$

$

Not available

3

Simplicity 1669868

TUBE ASSY., Guide (6200 only)

$

$

Not available

4

Simplicity 1665499

ROD, Lift

$

$

Not available

5

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8 (Qty. 1 on 62030)

$

$

Not available

7

Simplicity 174893

CLIP, Spring (6200 only)

$

$

Not available

8

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Simplicity 2828727

CAPSCREW, Hex, Whizlock, 3/8-16 x 1-1/4

$

$

Not available

10

Simplicity 1672091

HITCH ASSY.

$

$

Not available

11

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1 (6200 Only)

$

$

Not available

12

Simplicity 1924940SM

WASHER, 3/8 (6200 only)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 2816950SM

NUT, Hex, 3/8-16 (6200 only)
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16 (6200 only)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2 (6200 only)

$

$

Not available

16

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4 (6200 only)
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0
