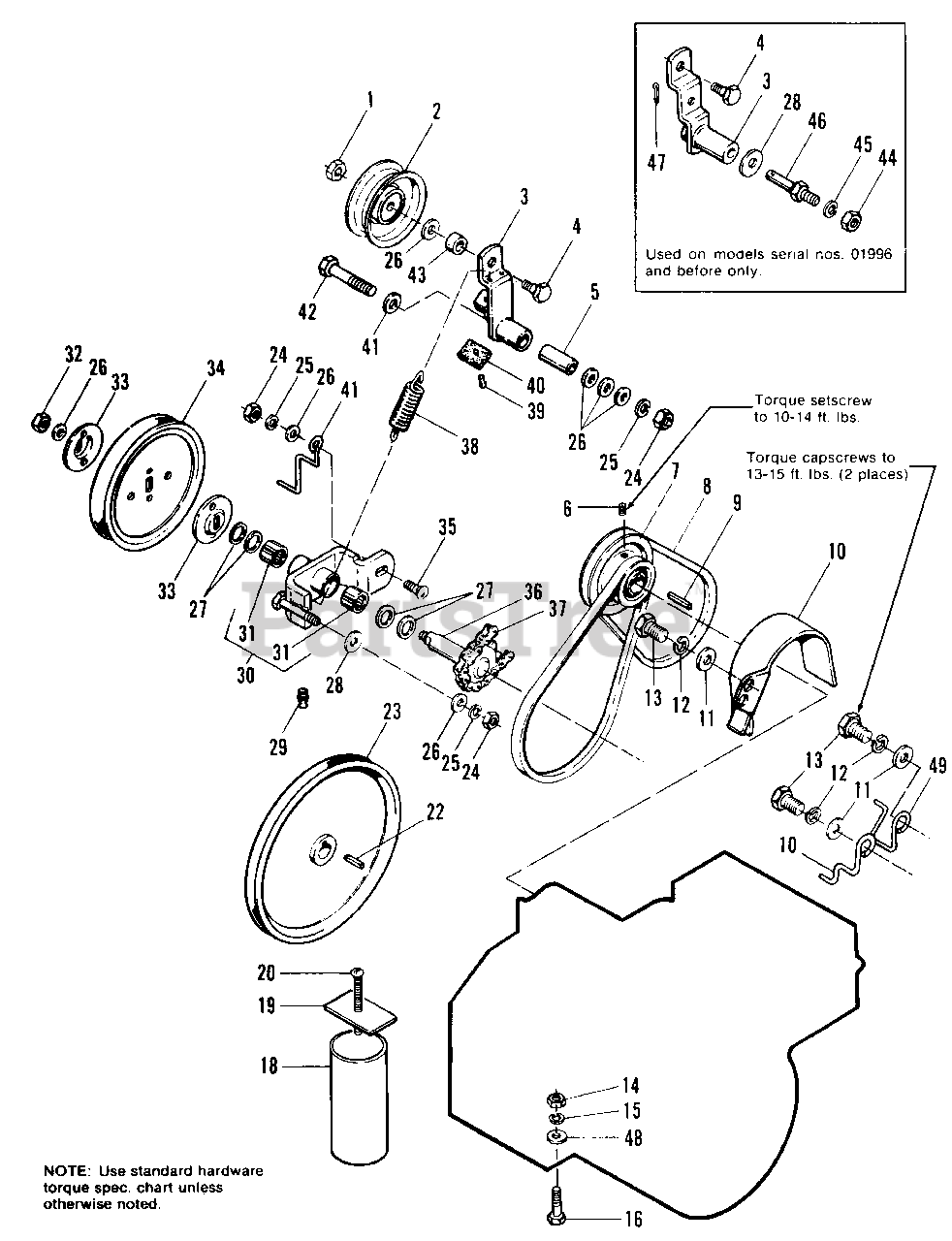

1690383 - Simplicity Snowbuster 28" Snow Thrower, 8hp Engine, Pulley & Drive Group Parts Diagram

Snowbuster 28" Snow Thrower, 8hp

Engine, Pulley & Drive Group Parts Diagram

  • Title

1

Simplicity 2830645

NUT, Flange, Whizlock, 3/8-16

$

$

Not available

2

Simplicity 1657827

PULLEY, Idler

$

$

Not available

3

Simplicity 1685069

IDLER LEVER & BRAKE KIT

Note: Ref. No. 3 includes Part Nos. 1657861, 8061058, 921972, 917642, 916965 & 916950.

$

$

Not available

4

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

5

Simplicity 1729261SM

SPACER

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 2830544

SETSCREW, 5/16-18 x 3/8

$

$

Not available

7

Simplicity 106939

PULLEY, Engine

$

$

Not available

7

Simplicity 173941

PULLEY, Engine (1690255 Only)

$

$

Not available

8

Simplicity 2161098SM

V-BELT, Auger Drive (1690209 Only)

$

$

Not available

8

Simplicity 1664457SM

V-BELT, 40"

Note: (1690379, 1690380 & 1690442 Only)

$29.99

$

In Stock, only 2 left!

0

8

Simplicity 2108300

V-BELT, Auger Drive (1690255 Only)

$

$

Not available

9

Simplicity 9221042

KEY

$

$

Not available

9

Simplicity 2159129

KEY (1690255 Only)

$

$

Not available

10

Simplicity 171063

STOP, Belt

$

$

Not available

11

Simplicity 2816960

WASHER, Plain, 1/2 (1690209 & 1690255 Only)

$

$

Not available

11

Simplicity 2817642

WASHER, Plain, 5/16 (1690379, 1690380 & 1690442 Only)

$

$

Not available

12

Simplicity 2816966

LOCKWASHER, 1/2 (1690209 & 1690255 Only)

$

$

Not available

12

Simplicity 2824086

CAPSCREW, Hex Hd., 1/2-20 x 3/4 (1690209 & 1690255 Only)

$

$

Not available

12

Simplicity 2821515

CAPSCREW, Hex Hd., 5/16-24 x 3/4 (1690379, 1690380 & 1690442 Only)

$

$

Not available

14

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

15

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

16

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

16

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

16

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4 (1690380 Only)

$

$

Not available

17

ENGINE, 5, 7 & 8 HP, Briggs & Stratton, Model 130202, Type 0670-01

$

$

Not available

18

Simplicity 171688

TUBE (1690209 Only)

$

$

Not available

18

Simplicity 171441

TUBE (1690255 Only)

$

$

Not available

19

Simplicity 171684

CLAMP (1690209 & 1690255 Only)

$

$

Not available

20

Simplicity 930529

SCREW, Machine, #10-32 x 3 (1690209 & 1690255 Only)

$

$

Not available

21

Simplicity 2118488

V-BELT, Transmission Drive (1690209 Only)

$

$

Not available

21

Simplicity 2118494

V-BELT, Transmission Drive (1690379, 1690380 & 1690442 Only)

$

$

Not available

21

Simplicity 2170771SM

V-BELT, Transmission Drive (1690255 Only)

$23.99

$

Usually ships in 2-12 days

0

22

Simplicity 2805850SM

KEY

$

$

Not available

23

Simplicity 176213

PULLEY, Transmission

$

$

Not available

24

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, only 2 left!

0

25

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

27

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

28

Simplicity 1666295

SPACER, (1690379, 1690380 & 1690442 Only)

$

$

Not available

28

Simplicity 2860207SM

SPACER

$3.49

$

Usually ships in 2-12 days

0

29

Simplicity 1924940SM

WASHER, Plain, 3/8 (1690209 & 1690255 Only)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 2814687

FITTING, Grease (1690209 & 1690255 Only)

$

$

Not available

30

Simplicity 2821133SM

FITTING, Grease (1690379, 1690380 & 1690442 Only)
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

31

Simplicity 1654566

HOUSING ASSY. (1690209 & 1690255 Only)

$

$

Not available

31

Simplicity 1664139

HOUSING ASSY. (1690379, 1690380 & 1690442 Only)

$

$

Not available

32

Simplicity 2156072SM

BEARING, Roller

$25.99

$

In Stock, only 1 left!

0

33

Simplicity 2828731

LOCKNUT, Jam, 3/8-16 (1690209 & 1690255 Only)

$

$

Not available

34

Simplicity 2158378SM

WASHER, Special

$

$

Not available

35

Simplicity 2158377SM

PULLEY (Use after 01688) (1690255 Only)

$

$

Not available

35

Simplicity 2173940

PULLEY (Use before 01689) (1690255 Only)

$

$

Not available

36

Simplicity 2822109

BOLT, Carriage, 3/8-16 x 1-1/4

$

$

Not available

37

Simplicity 2106925SM

SHAFT ASSY.

$219.99

$

Usually ships in 2-12 days

0

38

Simplicity 2105336SM

CHAIN

$29.99

$

Usually ships in 2-12 days

0

39

Simplicity 2121037SM

SPRING

$

$

Not available

40

Simplicity 921429

RIVET, #7 x 3/8 (Brass)

$

$

Not available

41

Simplicity 1654500

PAD, Brake

$

$

Not available

42

Simplicity 1656938

STOP, Belt

$

$

Not available

43

Simplicity 2821972

CAPSCREW, Hex hd., 3/8-16 x 2-1/2

$

$

Not available

44

Simplicity 2174870SM

SPACER

$48.99

$

Usually ships in 2-12 days

0

45

Simplicity 2818213

NUT, Hex, Full, 7/16-14 (1690209 & 1690255 Only)

$

$

Not available

46

Simplicity 2818199

LOCKWASHER, 7/16 (1690209 & 1690255 Only)

$

$

Not available

47

Simplicity 106928

STUD (1690209 & 1690255 Only)

$

$

Not available

48

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4 (1690209 & 1690255 Only)

$

$

Not available

49

Simplicity 2819381

WASHER, Plain, Special, 5/16 (1690379, 1690380 & 1690442 Only)

$

$

Not available

50

Simplicity 1664500

STOP, Belt (1690379, 1690380 & 1690442 Only)

$

$

Not available

51

Simplicity 1664499

STOP, Belt (1690379, 1690380 & 1690442 Only)

$

$

Not available
