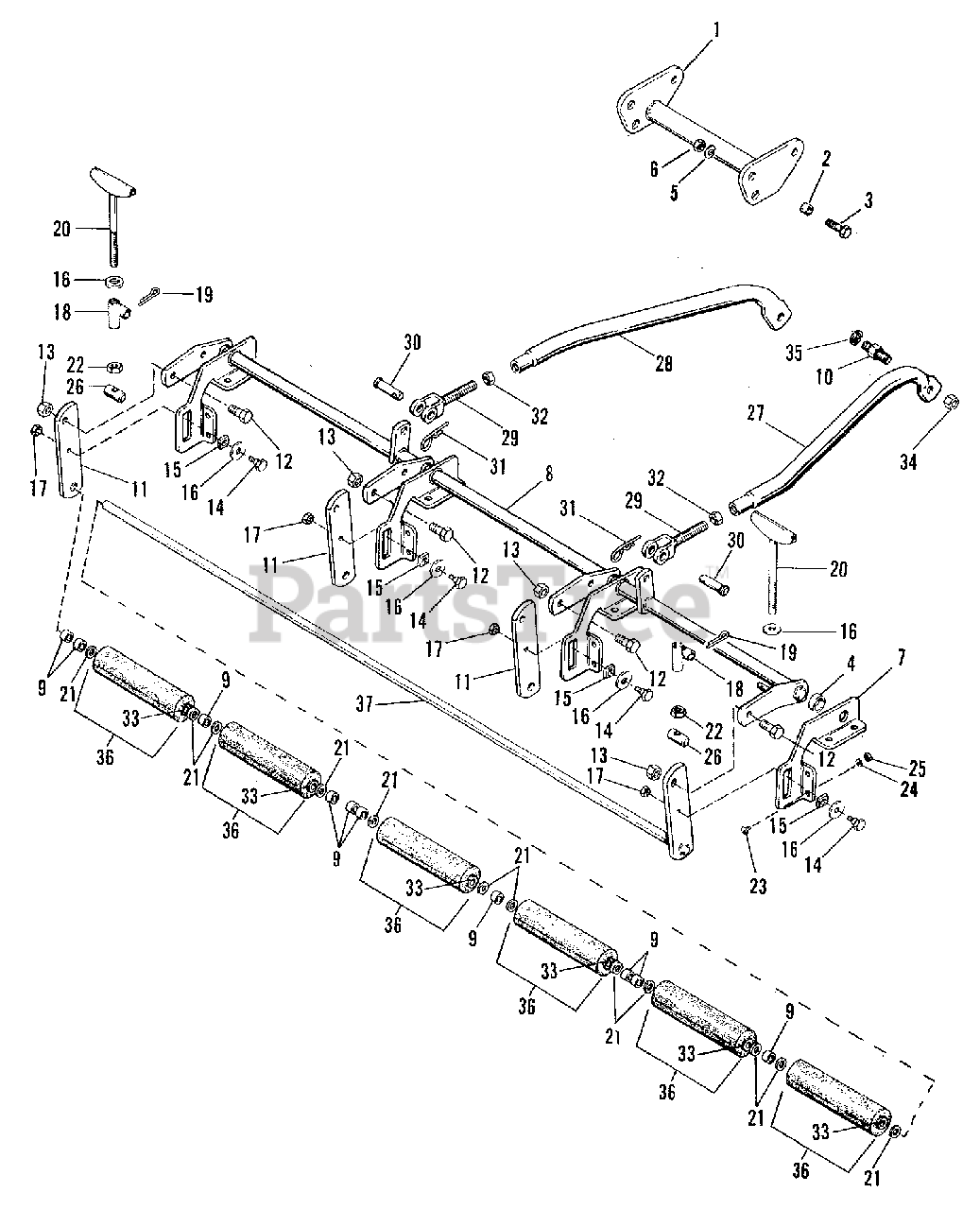

1690373 - Simplicity 60" Mower Deck, Center-Mounted Rocker Arm & Roller Assembly Group (3482I60) Parts Diagram

60" Mower Deck, Center-Mounted

Rocker Arm & Roller Assembly Group (3482I60) Parts Diagram

  • Title
1

Simplicity 2028739-7

ROCKER ARM ASSEMBLY

$

$

Not available

$

$

Not available

3

Simplicity 0921525-2

CAPSCREW, Hex Head, 1/2NC x 1-3/4

$

$

Not available

$

$

Not available

5

Simplicity 0916966-5

LOCKWASHER, Spring, 1/2

$

$

Not available

6

$

$

Not available

$

$

Not available

8

Simplicity 1664592-1

ROCKER ARM ASSEMBLY

$

$

Not available

$

$

Not available

10

Simplicity 2028754-6

BOLT, Shoulder, Special

$

$

Not available

11

Simplicity 2028745-4

BAR, Roller

$

$

Not available

12

Simplicity 0921176-4

CAPSCREW, Hex Head, 1/2NC x 1-1/4

$

$

Not available

13

Simplicity 0922134-2

LOCKNUT, Hex, 1/2NC

$

$

Not available

14

Simplicity 2028746-2

BOLT, Shoulder

$

$

Not available

$

$

Not available

16

Simplicity 0918431-8

WASHER, Plain, 1/2

$

$

Not available

17

Simplicity 0928731-9

LOCKNUT, Hex, Jam, 3/8NC

$

$

Not available

18

Simplicity 2028748-8

PIVOT ASSEMBLY

$

$

Not available

19

Simplicity 0918458-1

PIN, Cotter, 3/16 x 1

$

$

Not available

20

Simplicity 2028749-6

ADJUSTING SCREW ASSEMBLY

$

$

Not available

$

$

Not available

22

Simplicity 0924650-5

LOCKNUT, Hex, Full, Jam, 1/2NC

$

$

Not available

23

Simplicity 0920562-6

CARRIAGE BOLT, 5/16NC x 3/4

$

$

Not available

24

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

25

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

26

Simplicity 2028750-4

PIN, Clevis

$

$

Not available

27

$

$

Not available

28

$

$

Not available

$

$

Not available

30

$

$

Not available

31

Simplicity 9002801-0

CLIP, Hairpin

$

$

Not available

32

Simplicity 0918241-1

NUT, Hex, Jam, 5/8NC

$

$

Not available

$

$

Not available

34

Simplicity 0930631-7

LOCKNUT, Hex, Full, Jam, 5/8NC

$

$

Not available

35

Simplicity 0927794-8

E-RING, External

$

$

Not available

36

Simplicity 2029656-2

ROLLER, w/Bushings

$

$

Not available

37

Simplicity 1664718-2

ROLLER SHAFT ASSEMBLY

$

$

Not available
