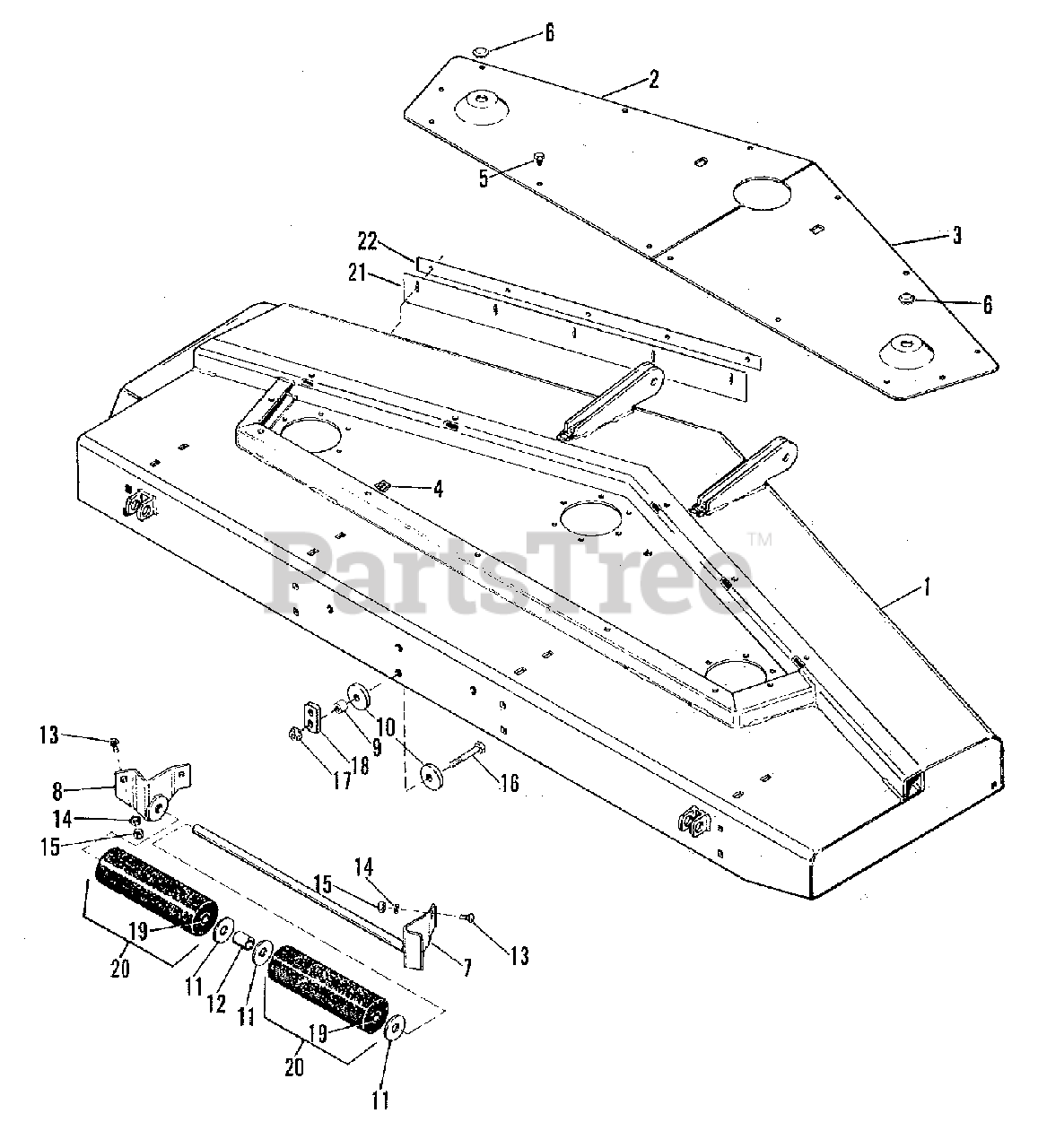

1690373 - Simplicity 60" Mower Deck, Center-Mounted Deck & Cover Assembly Group (3482I59) Parts Diagram

60" Mower Deck, Center-Mounted

Deck & Cover Assembly Group (3482I59) Parts Diagram

  • Title

1

Simplicity 1664584-8

DECK ASSEMBLY, 60" (L.H. Discharge)

$

$

Not available

2

Simplicity 2028730-6

PLATE, Cover, R.H.

$

$

Not available

3

Simplicity 2028729-8

PLATE, Cover, L.H.

$

$

Not available

4

Simplicity 0930663-0

NUT, Speed, Tinnerman

$

$

Not available

5

Simplicity 0930617-6

SCREW, Tapping, 5/16NC x 7/8

$

$

Not available

6

Simplicity 2028732-2

BUTTON, Plug

$

$

Not available

7

Simplicity 2028733-0

BRACKET & SHAFT ASSEMBLY

$

$

Not available

8

Simplicity 2028734-8

BRACKET ASSEMBLY

$

$

Not available

9

Simplicity 2028279-4

SPACER (L.H. Discharge)

$

$

Not available

10

Simplicity 2028572-2

WASHER, Special (L.H. Discharge)

$

$

Not available

11

Simplicity 2025420-7

WASHER

$

$

Not available

12

Simplicity 2028736-3

SPACER

$

$

Not available

13

Simplicity 0920562-6

BOLT, Carriage, 5/16NC x 3/4

$

$

Not available

14

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

15

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

16

Simplicity 0922606-9

CAPSCREW, Hex Head, 3/8NC x 1-3/4 (L.H. Discharge)

$

$

Not available

17

Simplicity 0930645-7

NUT, Centerlock, Flange, 3/8NC (L.H. Discharge)

$

$

Not available

18

Simplicity 1664778-6

BRACKET (L.H. Discharge)

$

$

Not available

19

Simplicity 2087574-6

BUSHING

$

$

Not available

20

Simplicity 2029656-2

ROLLER

$

$

Not available

21

Simplicity 0599672-3

CURTAIN, Grass Deflector

$

$

Not available

22

Simplicity 0599673-1

PLATE, Deflector Curtain

$

$

Not available

-

Simplicity 0923325-5

CAPSCREW, 5/16NC x 7/8

$

$

Not available

-

Simplicity 0919311-1

LOCKWASHER, 5/16

$

$

Not available

-

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available
