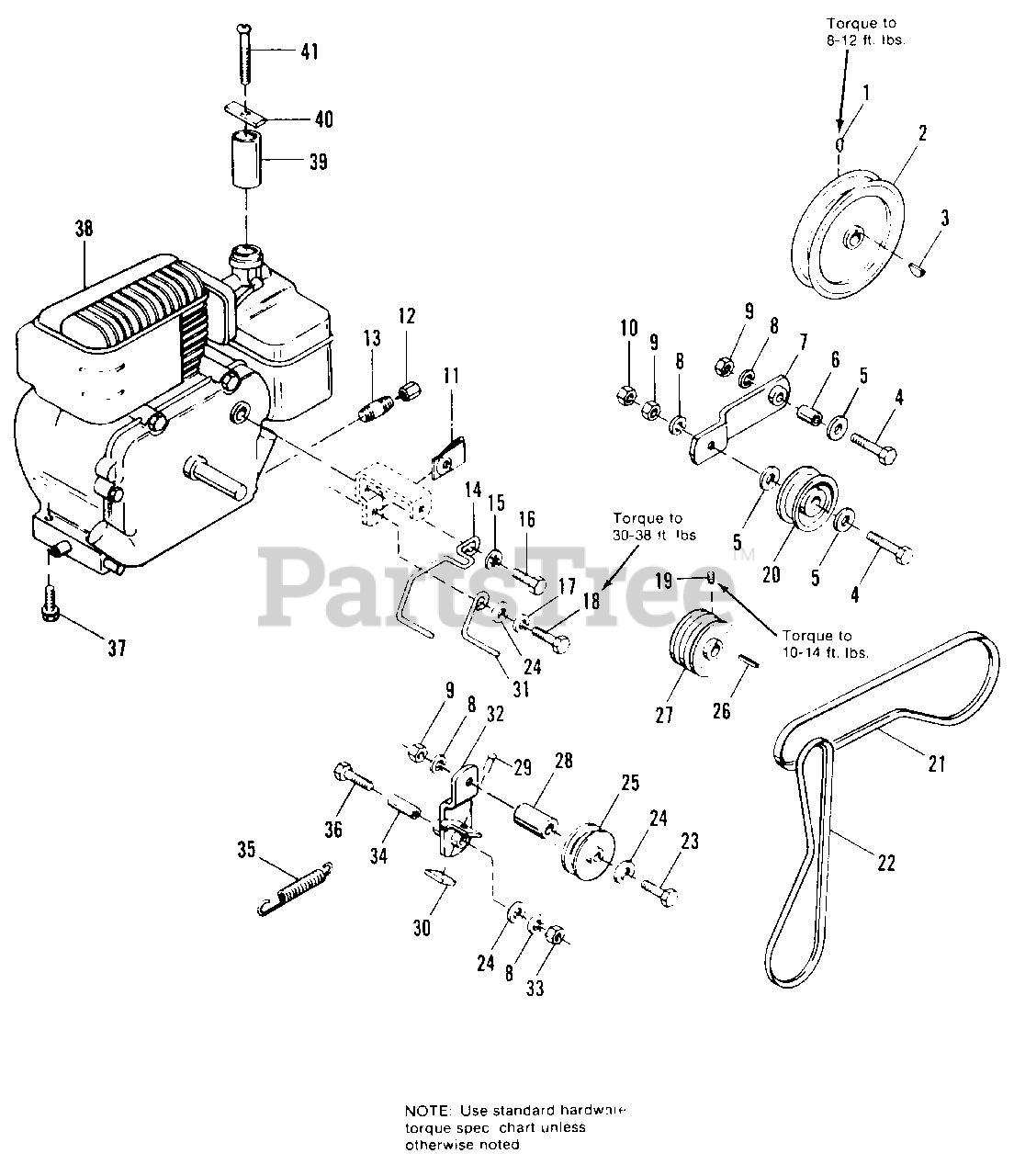

1690325 - Simplicity Tracker 21" Snow Thrower Engine, Pulley & Drive Group Parts Diagram

Tracker 21" Snow Thrower

Engine, Pulley & Drive Group Parts Diagram

  • Title

1

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

2

Simplicity 106214

PULLEY

$

$

Not available

3

Simplicity 2805123SM

KEY Woodruff, #9, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

4

Simplicity 2821971

CAPSCREW, Hex Hd, 3/8-16 x 2-3/4

$

$

Not available

5

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1729274SM

RACE, Inner Bearing

$

$

Not available

7

Simplicity 106204

LEVER ASSY., Idler

$

$

Not available

8

Simplicity 1916965SM

LOCKWASHER 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Simplicity 2816950SM

NUT, Hex Full 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

10

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

11

Simplicity 2830655

NUT, Retainer 5/16-18

$

$

Not available

12

Simplicity 901751

CAP, Pipe (1690305 Only)

$

$

Not available

13

Simplicity 106885

NIPPLE, Pipe (1690305 Only)

$

$

Not available

14

Simplicity 106624

STOP, Belt

$

$

Not available

15

Simplicity 2809589

LOCKWASHER Int., 1/2

$

$

Not available

16

Simplicity 2829528

CAPSCREW, Hex Hd., 1/2-20 x 1

$

$

Not available

17

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 2823325

CAPSCREW Hex Hd., 5/16-18 x 7/8

$

$

Not available

19

Simplicity 2830544

SETSCREW, 5/16-18 x 3/8

$

$

Not available

20

Simplicity 2154534SM

PULLEY Idler

$32.99

$

In Stock, only 2 left!

0

21

Simplicity 1665706SM

V-Belt (Transmission Drive)

$24.99

$

Usually ships in 2-12 days

0

22

Simplicity 1717393SM

V-Belt (Auger Drive)

$32.99

$

In Stock, only 4 left!

0

23

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

24

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

25

Simplicity 1657827

PULLEY, Idler

$

$

Not available

26

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

27

Simplicity 1657838

PULLEY, Engine

$

$

Not available

28

Simplicity 2174870SM

SPACER

$45.99

$

Usually ships in 2-12 days

0

29

Simplicity 921429

RIVET, #7 x 3/8

$

$

Not available

30

Simplicity 1654500

PAD, Brake

$

$

Not available

31

Simplicity 2172845SM

STOP, Belt

$11.99

$

Usually ships in 2-12 days

0

32

Simplicity 1657704

LEVER & BRAKE ASSY.

$

$

Not available

33

Simplicity 2817421

LOCKNUT, Jam, 3/8-16

$

$

Not available

34

Simplicity 1729261SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

35

Simplicity 2121037SM

SPRING

$

$

Not available

36

Simplicity 2822130

CAPSCREW, Hex Hd., 3/8-16 x 2-1/4

$

$

Not available

37

Simplicity 2828635SM

SCREW, Hex, Washer Hd,. Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

38

ENGINE 4 HP, Briggs & Stratton, Model 100202, Type 0180-01

$

$

Not available

39

Simplicity 171688

TUBE (1690305 Only)

$

$

Not available

40

Simplicity 171684

CLAMP (1690305 Only)

$

$

Not available

41

Simplicity 930529

SCREW, Machine #10-32 x 3

$

$

Not available
