1690299 - Simplicity Leaf Bag Kit Leaf Bag Kit Parts Diagram

Leaf Bag Kit

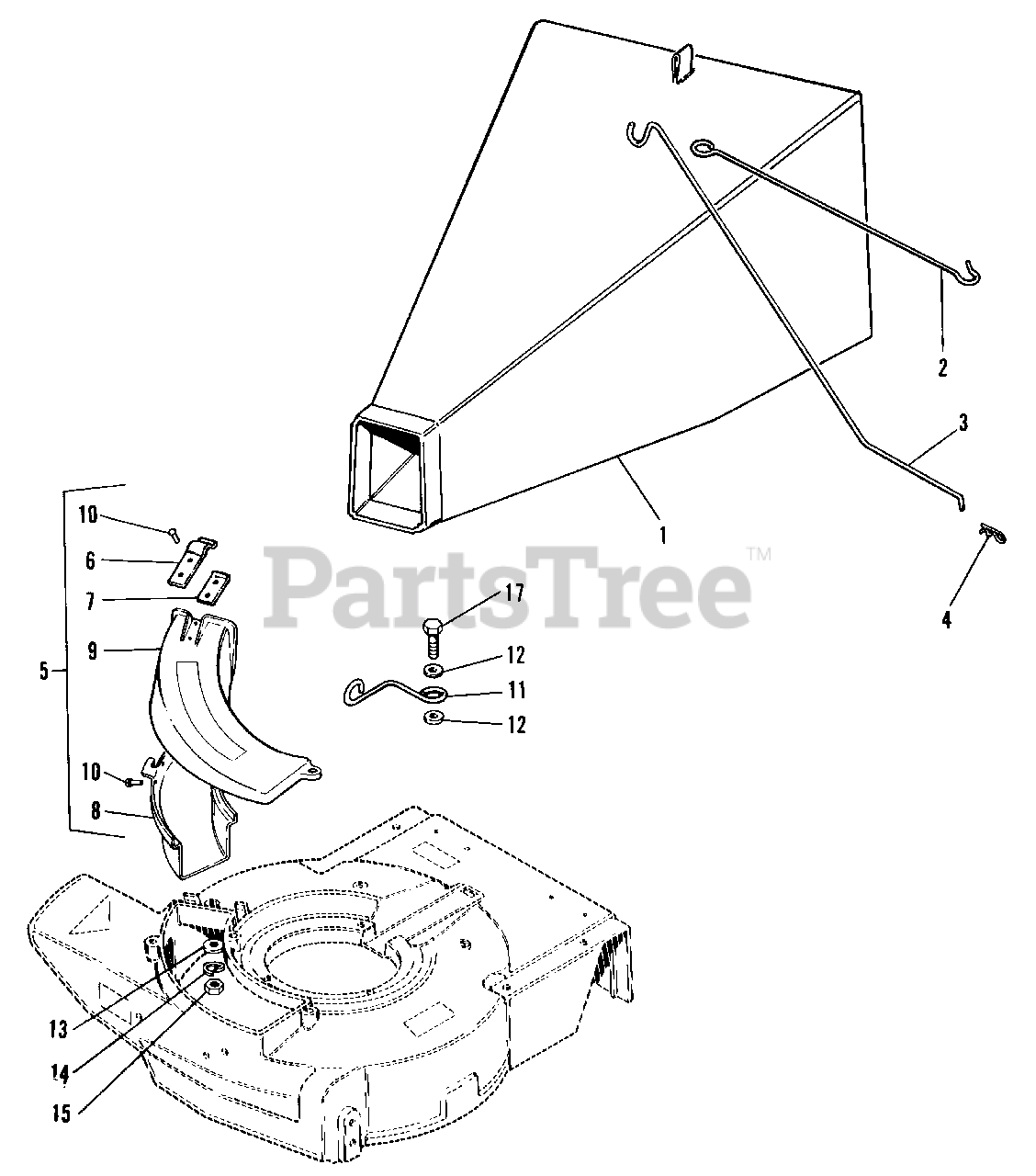

Leaf Bag Kit Parts Diagram

  • Title
1

$

$

Not available

2

Simplicity 108837

HANGER, Leaf Bag

$

$

Not available

3

Simplicity 1657370

SUPPORT ROD, Bag

$

$

Not available

4

Simplicity 2106788

PIN, Quick, 1/8

$

$

Not available

5

Simplicity 174756

CHUTE ASSY

$

$

Not available

6

Simplicity 108634

LATCH, Spring

$

$

Not available

7

Simplicity 108826

PLATE, Latch

$

$

Not available

8

Simplicity 171643

DEFLECTOR

$

$

Not available

9

CHUTE (See Ref. No. 5)

$

$

Not available

10

Simplicity 2828706

RIVET, Tubular, 3/8 x 5/16

$

$

Not available

11

Simplicity 108853

GUARD, Bag

$

$

Not available

12

Simplicity 2817377

WASHER, Plain

$

$

Not available

13

$

$

Not available

14

Simplicity 2816964SM

LOCKWASHER
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

15

Simplicity 2816622SM

NUT, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 176150

DECAL, Caution

$

$

Not available

17

Simplicity 2817396

CAPSCREW, Hex Hd., 1/4-20 x 1

$

$

Not available
