1690287 - Simplicity 38" Tiller Attachment 38" Tiller-Hitch & Lift Group Parts Diagram

38" Tiller Attachment

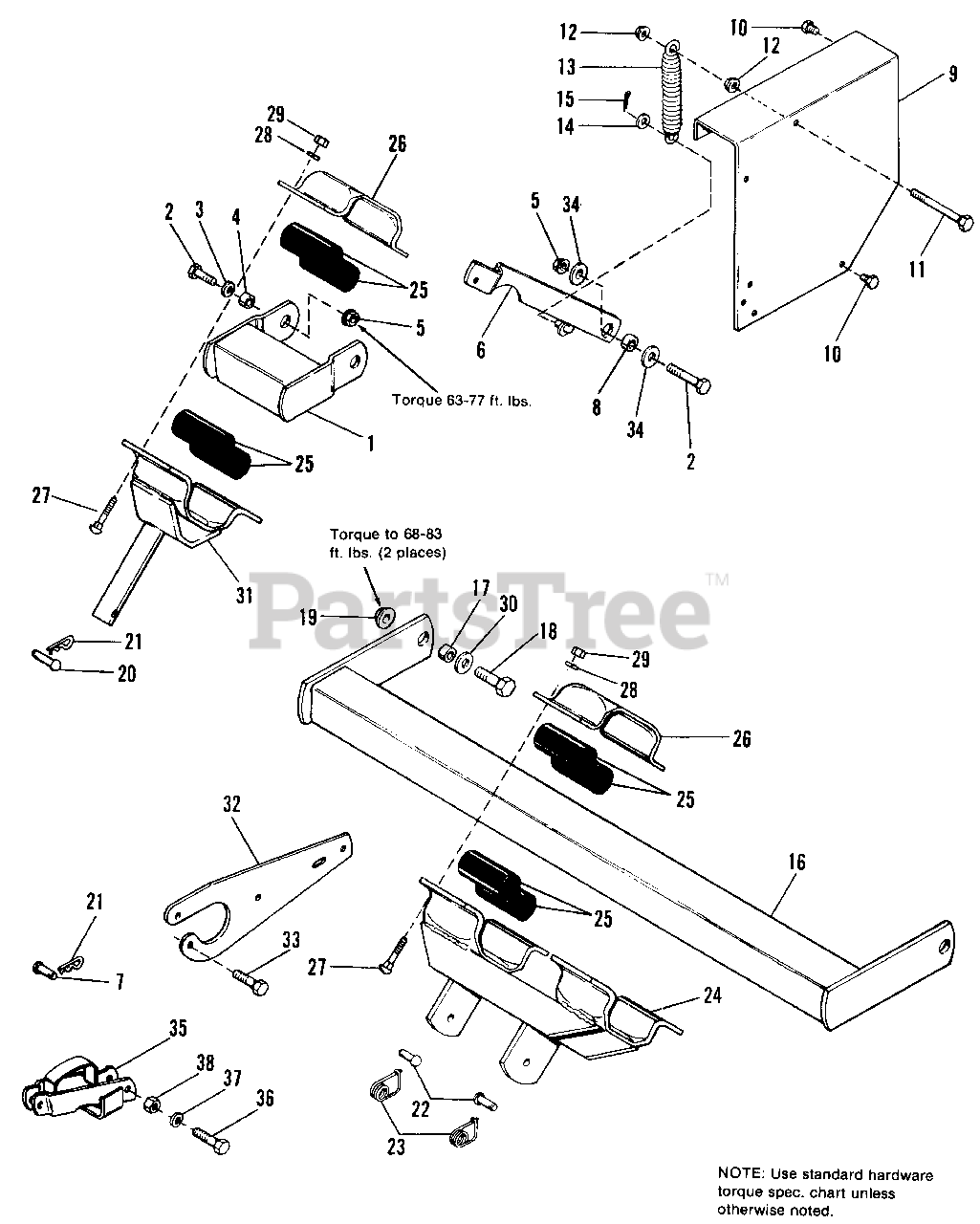

38" Tiller-Hitch & Lift Group Parts Diagram

  • Title

1

Simplicity 1657756

YOKE ASSY., Lift

$

$

Not available

2

Simplicity 2823471SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2105346SM

SPACER

$28.99

$

In Stock, only 1 left!

0

5

Simplicity 1930650SM

LOCKNUT, Flange, 7/16-14

$5.49

$

In Stock, only 4 left!

0

6

Simplicity 1657527

ARM ASSY., Pivot

$

$

Not available

7

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 14

0

8

Simplicity 1657601

SPACER

$

$

Not available

9

Simplicity 1657524

SHIELD, Pulley

$

$

Not available

10

Simplicity 1928729SM

SCREW, Hex Hd., Taptite, 5/16-18 x 3/8

$4.99

$

In Stock, only 2 left!

0

11

Simplicity 2820260SM

CAPSCREW, Hex Hd., 3/8-16 x 4-1/4

$

$

Not available

12

Simplicity 1930645SM

LOCKNUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

13

Simplicity 2157262SM

SPRING

$33.99

$

Usually ships in 2-12 days

0

14

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1918448SM

COTTER PIN, 3/32 x 1

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1657762

HITCH ASSY., Tiller Half

$

$

Not available

17

Simplicity 2105386SM

SPACER

$31.99

$

Usually ships in 2-12 days

0

18

Simplicity 1920328SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 1930644SM

LOCKNUT, Flange, 1/2-13

$3.49

$

In Stock, Qty 6

0

20

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

21

Simplicity 2106788

CLIP, Spring

$

$

Not available

22

Simplicity 2155037SM

PIN

$12.99

$

In Stock, only 1 left!

0

23

Simplicity 2176012SM

CLIP, Spring, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1657811

HITCH ASSY., Tractor Half

$

$

Not available

25

Simplicity 1657754

ROLLER

$

$

Not available

26

Simplicity 1657755

CLAMP

$

$

Not available

27

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 2 left!

0

28

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

29

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1926192SM

WASHER, Plain, 1/2

$19.99

$

Usually ships in 2-12 days

0

31

Simplicity 1657759

BAR ASSY., Lift

$

$

Not available

32

Simplicity 1657846

BRACE, Transmission

$

$

Not available

33

Simplicity 1920677SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 2105010

WASHER

$

$

Not available

35

Simplicity 1657910

ARM ASSY., Lift

$

$

Not available

36

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

37

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
