1690287 - Simplicity 38" Tiller Attachment 38" Tiller-Frame, Deflector & Tine Group Parts Diagram

38" Tiller Attachment

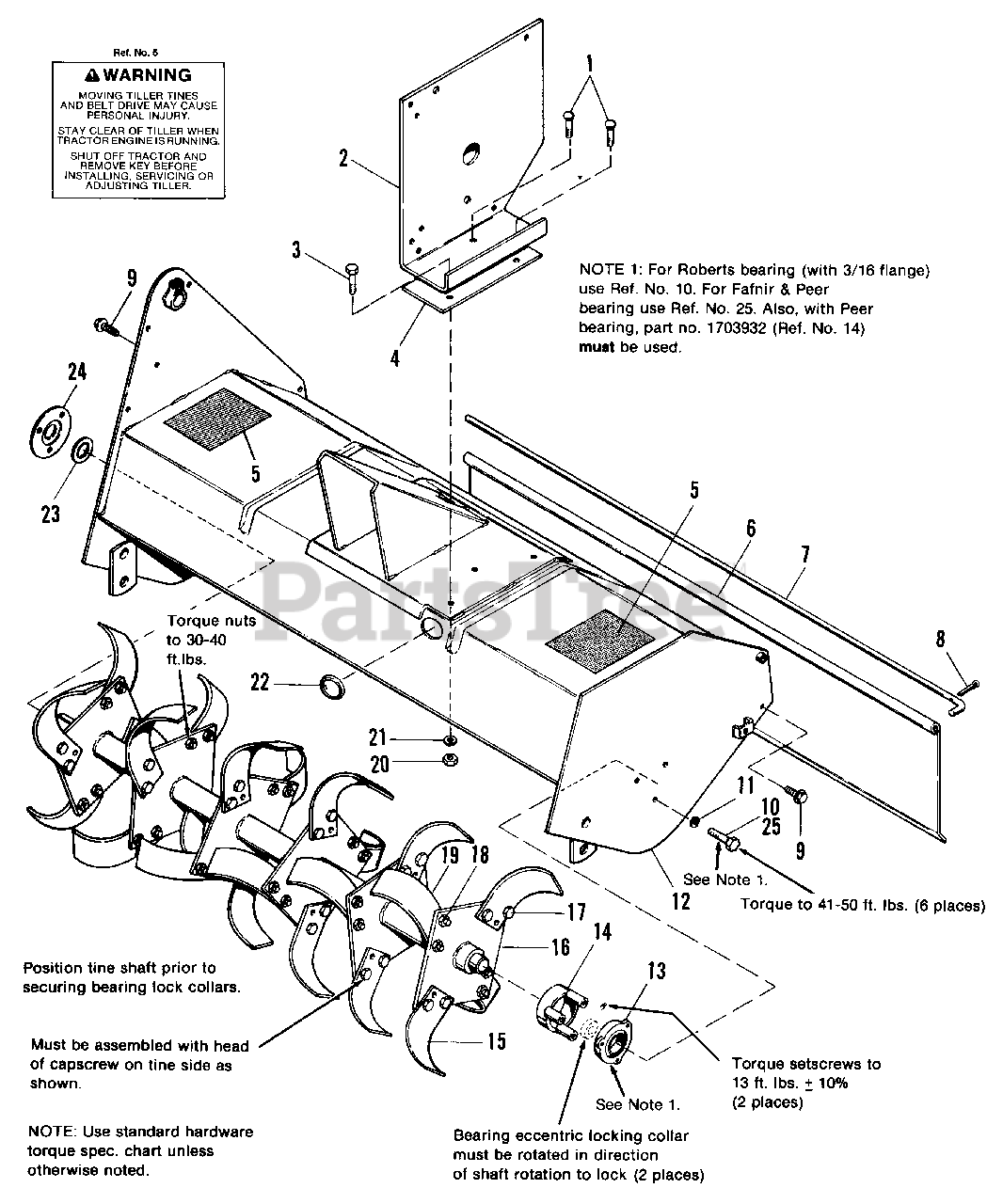

38" Tiller-Frame, Deflector & Tine Group Parts Diagram

  • Title

1

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

2

Simplicity 1657529

SUPPORT ASSY.

$

$

Not available

3

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 1657692

SHIM, Plate

$

$

Not available

5

Simplicity 1679700SM

DECAL, Safety

$18.99

$

Usually ships in 2-12 days

0

6

Simplicity 1657384A

DEFLECTOR

$

$

Not available

7

Simplicity 1657389SM

ROD, Deflector

$46.99

$

Usually ships in 2-12 days

0

8

Simplicity 1918448SM

COTTER PIN, 3/32 x 1

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1928635SM

SCREW, Thread Forming, Taptite, 3/8-16 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 12

0

11

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

12

Simplicity 1657397

HOUSING ASSY.

$

$

Not available

13

Simplicity 1685396SM

FLANGE, Bearing Kit (Incl. Ref. No. 14)

$

$

Not available

14

Simplicity 2175138

GUARD ASSY., Trash

$

$

Not available

15

Simplicity 2172512SM

TINE, L.H.
(Superseded to 2172512ASM)

$34.99

$

In Stock, Qty 20+

0

16

Simplicity 1657400ASM

SHAFT ASSY., Tine

$678.99

$

Usually ships in 2-12 days

0

17

Simplicity 1923490SM

CAPSCREW, Hex Hd., 3/8-16 x 1

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Simplicity 2172511SM

TINE, R.H.
(Superseded to 2172511ASM)

$34.99

$

In Stock, Qty 20+

0

20

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 172934

BUTTON, Plug

$

$

Not available

23

Simplicity 2172458SM

SEAL

$

$

Not available

24

Simplicity 2172507A

RETAINER, Seal

$

$

Not available

25

Simplicity 1922605SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4 (Used with Fafnir & Peer Bearings)
(Superseded to 703969)

$4.99

$

Usually ships in 2-12 days

0
