1690284 - Simplicity 21" Walk-Behind Mower Handle Group Parts Diagram

21" Walk-Behind Mower

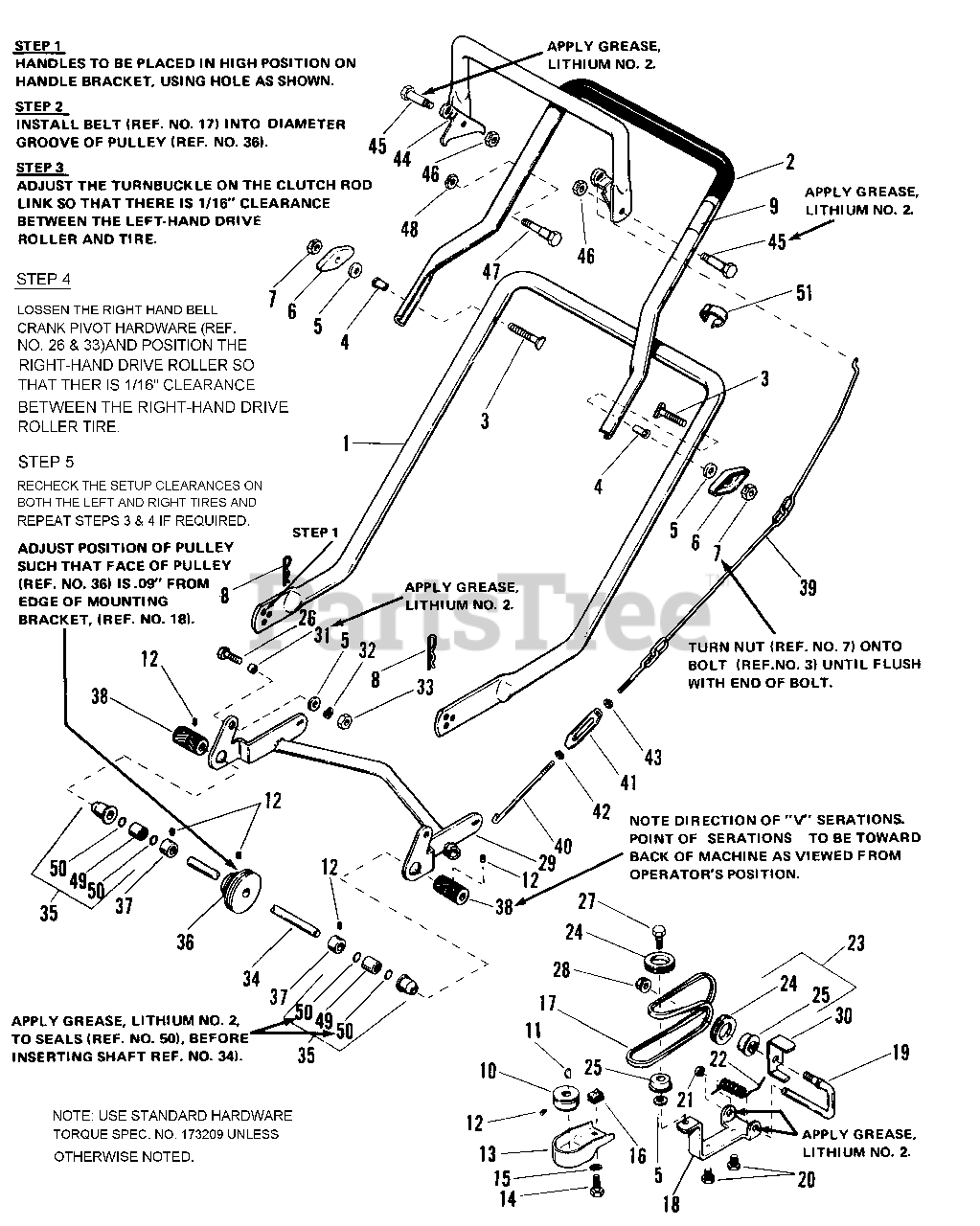

Handle Group Parts Diagram

  • Title

1

Simplicity 1657151

HANDLE, Lower

$

$

Not available

2

Simplicity 1657150

HANDLE, Upper

$

$

Not available

3

Simplicity 108778

BOLT, Curved Hd.

$

$

Not available

4

Simplicity 1657535

EYELET

$

$

Not available

5

Simplicity 2817377

WASHER, Plain

$

$

Not available

6

Simplicity 2108848

NUT, Wing

$

$

Not available

7

Simplicity 2823362

LOCKNUT, Hex, Full, 5/16-18

$

$

Not available

8

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1608221

DECAL, Handle

$

$

Not available

10

Simplicity 1657515

PULLEY, Engine

$

$

Not available

11

Simplicity 2805121SM

KEY, Woodruff No. 5

$2.99

$

In Stock, only 1 left!

0

12

Simplicity 2828734

SETSCREW, 5/16-18 x 1/4

$

$

Not available

13

Simplicity 1657181

COVER, Pulley

$

$

Not available

14

Simplicity 2821958

CAPSCREW, Hex, 1/4-20 x 1/2

$

$

Not available

15

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

16

Simplicity 2817867

NUT, Tinn., 1/4-20

$

$

Not available

17

Simplicity 1657284SM

BELT

$23.99

$

Usually ships in 2-12 days

0

18

Simplicity 1657247

BRACKET, Idler Support

$

$

Not available

19

Simplicity 108693

U-BOLT

$

$

Not available

20

Simplicity 2829000

SCREW, Taptite

$

$

Not available

21

Simplicity 108698

RING, Retaining

$

$

Not available

22

Simplicity 2108729SM

SPRING, Idler

$17.99

$

Usually ships in 2-12 days

0

23

Simplicity 2108730SM

PULLEY ASSY (Inc. Ref. Nos. 24, 25)

$24.99

$

Usually ships in 2-12 days

0

24

Simplicity 2108730SM

PULLEY, Idler

$24.99

$

Usually ships in 2-12 days

0

25

BEARING, Idler

$

$

Not available

26

Simplicity 2106772

SCREW, Special, 5/16-18 x 1

$

$

Not available

27

Simplicity 2829783

SCREW, Taptite, 1/4-20 x 1

$

$

Not available

28

Simplicity 2830642

LOCKNUT, Flange, 1/4-20

$

$

Not available

29

Simplicity 1657259

BELLCRANK ASSY

$

$

Not available

30

Simplicity 1657175

LEVER

$

$

Not available

31

Simplicity 2156150SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

32

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 108666

SHAFT, Driver

$

$

Not available

35

Simplicity 108667

BEARING & RETAINER ASSY

$

$

Not available

36

Simplicity 1657180

PULLEY, Drive

$

$

Not available

37

Simplicity 1729282SM

COLLAR, Set

$16.99

$

Usually ships in 2-12 days

0

38

Simplicity 108664

DRIVER, Wheel

$

$

Not available

39

Simplicity 1657245

ROD, Clutch

$

$

Not available

40

Simplicity 108669

ROD, Engaging, Lower

$

$

Not available

41

Simplicity 2108775SM

TURNBUCKLE

$

$

Not available

42

Simplicity 2816621

NUT, Hex, Full, No. 10-24

$

$

Not available

43

Simplicity 2828704SM

NUT, Hex, Full, No. 10-24

$5.99

$

Usually ships in 2-12 days

0

44

Simplicity 1653231

HANDLE ASSY, Engaging

$

$

Not available

45

Simplicity 108734

BOLT, Shoulder

$

$

Not available

46

Simplicity 2828698

LOCKNUT, Hex Jam, 5/16-18

$

$

Not available

47

Simplicity 108757

STOP, Handle

$

$

Not available

48

Simplicity 2829001

LOCKNUT, Hex, Flange, 5/16-18

$

$

Not available

49

Simplicity 108654

BEARING, Needle

$

$

Not available

50

Simplicity 108696

SEAL, Grease

$

$

Not available

51

Simplicity 2108812

CLAMP,

$

$

Not available
