1690273 - Simplicity 42" Mower Deck 42" Drive Group Parts Diagram

42" Mower Deck

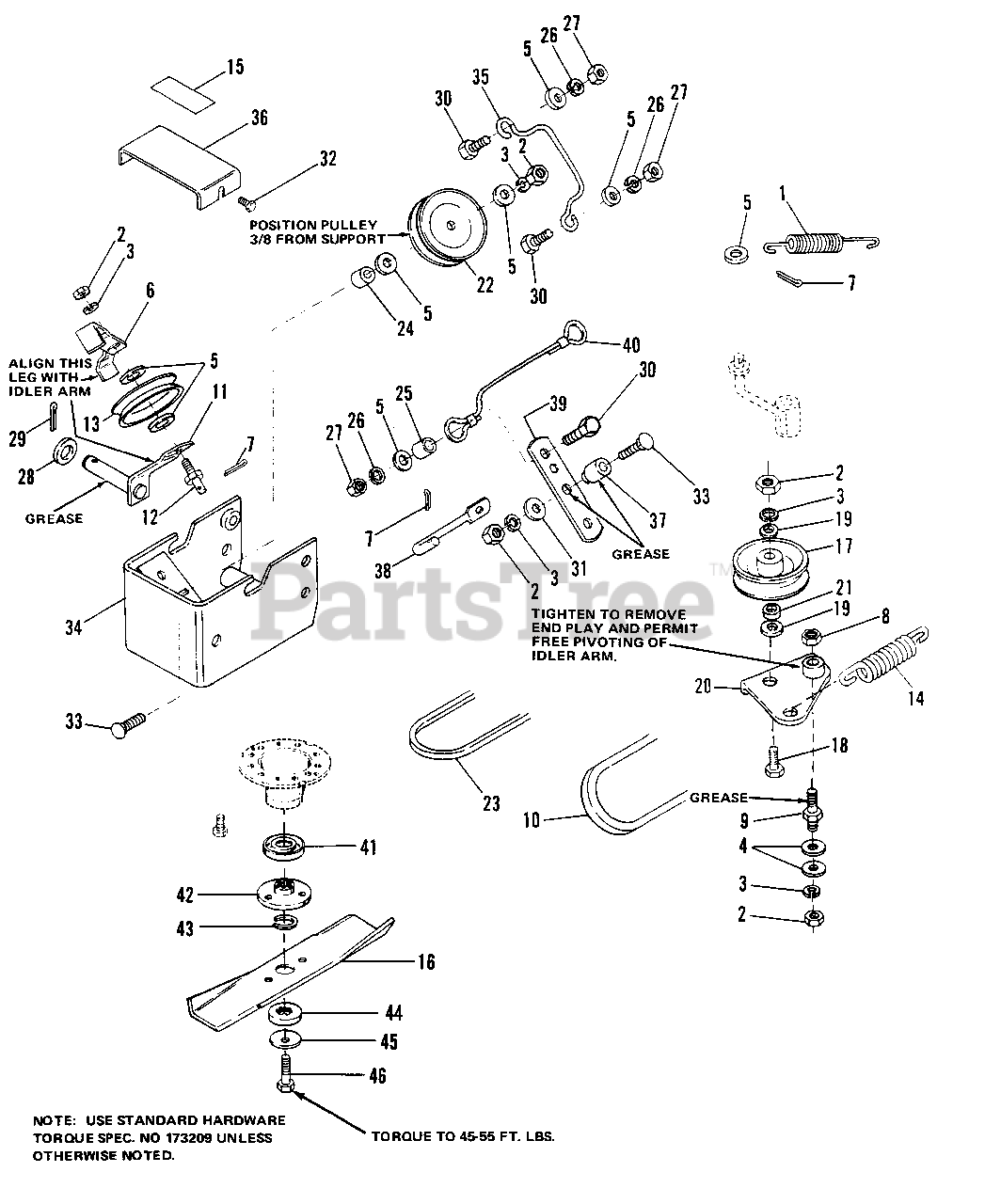

42" Drive Group Parts Diagram

  • Title

1

Simplicity 2159181SM

SPRING

$7.49

$

In Stock, only 1 left!

0

2

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

3

Simplicity 1916965SM

LOCKWASHER, 3/8-16
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

4

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 2817642

WASHER, 5/16

$

$

Not available

6

Simplicity 1656773

GUIDE ASSY., Belt

$

$

Not available

7

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

8

Simplicity 2823428

LOCKNUT, Hex, 3/8-16

$

$

Not available

9

Simplicity 2108372SM

STUD, Idler

$46.99

$

Usually ships in 2-12 days

0

10

Simplicity 2108209

"V" BELT, Arbor Drive

$

$

Not available

11

Simplicity 1655940

LEVER ASSY., Idler

$

$

Not available

12

Simplicity 1655948

STUD

$

$

Not available

13

Simplicity 2106716

PULLEY, Idler

$

$

Not available

14

Simplicity 1656936SM

SPRING

$9.99

$

In Stock, Qty 20+

0

15

Simplicity 1657230

DECAL, Caution

$

$

Not available

16

Simplicity 1656147ASM

BLADE, 42" Mower

$21.99

$

In Stock, only 3 left!

0

17

Simplicity 2164268

PULLEY, Idler

$

$

Not available

18

Simplicity 2821971

CAPSCREW, Hex 3/8-16 x 1-3/4

$

$

Not available

19

Simplicity 2824940

WASHER, 13/32 x 7/8

$

$

Not available

20

Simplicity 1603088SM

LEVER ASSY., Idler

$

$

Not available

21

Simplicity 1610404

SPACER

$

$

Not available

22

Simplicity 2101096SM

PULLEY, Idler

$59.99

$

In Stock, only 3 left!

0

23

Simplicity 2108508

"V" BELT, PTO
(Superseded to 1713515SM)

$34.99

$

In Stock, Qty 18

0

24

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 1 left!

0

25

Simplicity 2156150SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

26

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1917372SM

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 2818430

WASHER, 7/16

$

$

Not available

29

Simplicity 2818448

PIN, Cotter, 3/32 x 1

$

$

Not available

30

Simplicity 2821333

CAPSCREW, Hex 5/16-18 x 1

$

$

Not available

31

Simplicity 2822755

WASHER, 13/32 x 1
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

32

Simplicity 2827428

SCREW, Tap, 1/4-20 x 3/8

$

$

Not available

33

Simplicity 2831352

BOLT Carriage, 3/8-16 x 1-1/2

$

$

Not available

34

Simplicity 1655931

SUPPORT ASSY., Mower

$

$

Not available

35

Simplicity 1656394

STOP, Belt

$

$

Not available

36

Simplicity 1656406

COVER, Pulley

$

$

Not available

37

Simplicity 1656752

SPACER

$

$

Not available

38

Simplicity 1656759

ROD, Clutch

$

$

Not available

39

Simplicity 1656764

BELLCRANK

$

$

Not available

40

Simplicity 1656771

CABLE ASSY., Brake

$

$

Not available

41

Simplicity 1700229SM

SHIELD, Grass

$10.99

$

In Stock, Qty 20+

0

42

Simplicity 1655777SM

ADAPTOR, Blade

$25.99

$

In Stock, Qty 20+

0

43

Simplicity 1657528SM

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

44

Simplicity 1656927SM

WASHER, Spline

$8.99

$

In Stock, Qty 17

0

45

Simplicity 1656916SM

WASHER, Spline

$7.49

$

In Stock, Qty 20+

0

46

Simplicity 2820676SM

CAPSCREW, Hex Hd., 7/16-14 x 1

$4.49

$

In Stock, Qty 6

0
