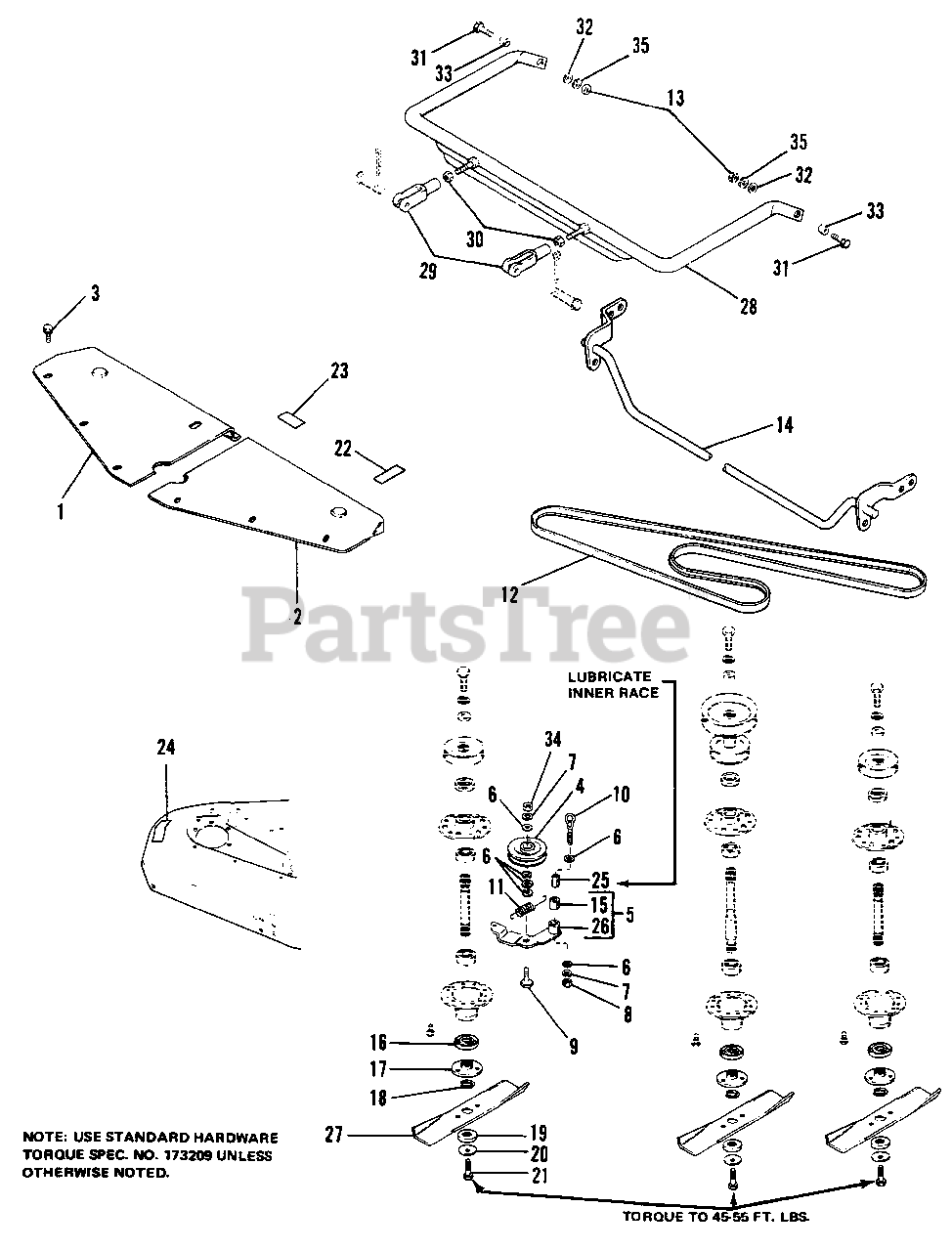

1690272 - Simplicity 48" Mower Deck 48" Cover, Drive & Bail Group Parts Diagram

48" Mower Deck

48" Cover, Drive & Bail Group Parts Diagram

  • Title

1

Simplicity 1679957

COVER, R.H.
(Superseded to 1679957ASM)

$149.99

$

Usually ships in 2-12 days

0

2

Simplicity 1676067

COVER, L.H.
(Superseded to 1676067ASM)

$103.99

$

Usually ships in 2-12 days

0

3

Simplicity 2829000

SCREW, Hex, Taptite, 1/4-20 x 3/8

$

$

Not available

4

Simplicity 2108386SM

PULLEY, Idler

$

$

Not available

5

Simplicity 1685415SM

LEVER ASSY, Idler (w/Bushings)
(Superseded to 1685415YP)

$

$

Not available

6

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

8

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

9

Simplicity 2108418

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

$

$

Not available

10

Simplicity 2171815SM

EYEBOLT

$54.99

$

In Stock, only 1 left!

0

11

Simplicity 1656936SM

SPRING

$9.99

$

In Stock, Qty 20+

0

12

Simplicity 1657044SM

BELT, V, Arbor Drive

$51.99

$

In Stock, only 1 left!

0

13

Simplicity 2816951

NUT, Hex, Full, 1/2-13

$

$

Not available

14

Simplicity 2172015ASM

ROCKER ARM ASSY

$116.99

$

Usually ships in 2-12 days

0

15

Simplicity 1657682SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

16

Simplicity 1700229SM

SHIELD, Grass

$10.99

$

In Stock, Qty 20+

0

17

Simplicity 1655777SM

ADAPTOR, Blade

$25.99

$

In Stock, Qty 20+

0

18

Simplicity 1657528SM

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1656927SM

WASHER, Spline

$8.99

$

In Stock, Qty 17

0

20

Simplicity 1656916SM

WASHER, Spline

$7.49

$

In Stock, Qty 20+

0

21

Simplicity 2820676SM

CAPSCREW, Hex Hd., 7/16-14 x 1

$4.49

$

In Stock, Qty 6

0

22

Simplicity 1704277SM

DECAL, Danger
(Superseded to 7101665YP)

$14.99

$

In Stock, only 3 left!

0

23

Simplicity 2174845

DECAL, Belt Installation

$

$

Not available

24

Simplicity 1704276SM

DECAL, Danger

$

$

Not available

25

Simplicity 1729274SM

RACE, Inner

$

$

Not available

26

Simplicity 1685415SM

LEVER ASSY, Idler
(Superseded to 1685415YP)

$

$

Not available

27

Simplicity 1656143ASM

BLADE, 48" Mower

$27.99

$

In Stock, Qty 19

0

28

Simplicity 2172473ASM

BAIL ASSY

$201.99

$

Usually ships in 2-12 days

0

29

Simplicity 2154304SM

YOKE

$67.99

$

Usually ships in 2-12 days

0

30

Simplicity 2819262

NUT, Hex, Jam. 1/2-20

$

$

Not available

31

Simplicity 2821176

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4

$

$

Not available

32

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

33

Simplicity 2105051

SPACER

$

$

Not available

34

Simplicity 2817421

NUT, Hex, Jam, 3/8-16

$

$

Not available

35

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available
