1690248 - Simplicity 30" Mower Deck 30" Mower Housing & Arbor Group Parts Diagram

30" Mower Deck

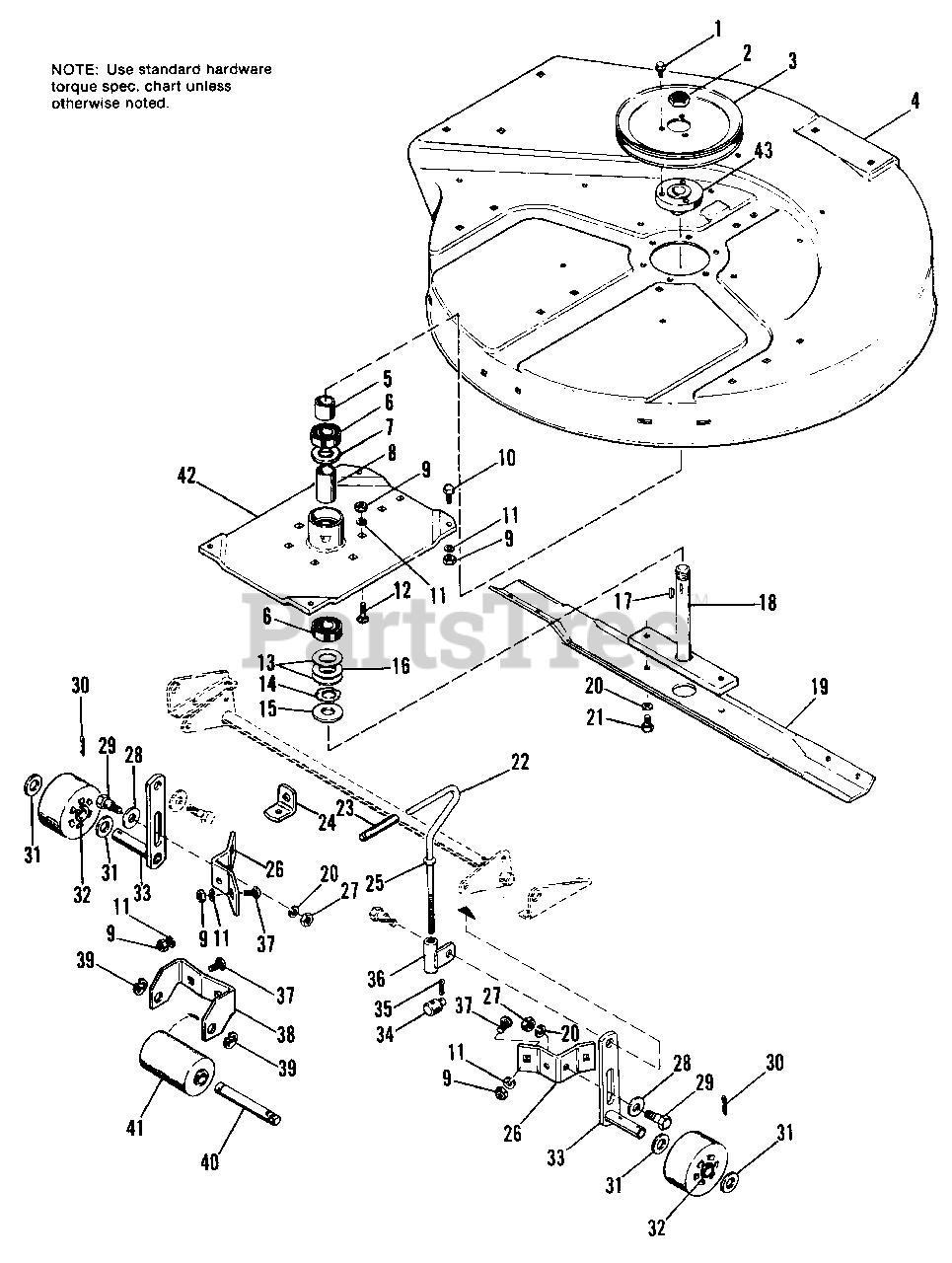

30" Mower Housing & Arbor Group Parts Diagram

  • Title

1

Simplicity 177932

SCREW, Thd. Forming

$

$

Not available

2

Simplicity 2822133

LOCKNUT, Hex, 3/4-16

$

$

Not available

3

Simplicity 1608959

PULLEY, Mower

$

$

Not available

4

Simplicity 1608351

HOUSING, 30" Mower

$

$

Not available

5

Simplicity 1651295

SPACER

$

$

Not available

6

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

7

Simplicity 2108134

RING, Backing

$

$

Not available

8

Simplicity 176984

SPACER

$

$

Not available

9

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

11

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 2821158

BOLT, Carriage, 5/16-18 x 1

$

$

Not available

13

Simplicity 2108472

WASHER

$

$

Not available

14

Simplicity 2108181

WASHER

$

$

Not available

15

Simplicity 2108182SM

WASHER

$

$

Not available

16

Simplicity 2108257SM

WASHER

$6.99

$

In Stock, only 2 left!

0

17

Simplicity 2818312SM

KEY, Woodruff, #61
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0

18

Simplicity 1651293

ARBOR ASSY.

$

$

Not available

19

Simplicity 1651297

BLADE, 30"

$

$

Not available

20

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

21

Simplicity 2823490

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

22

Simplicity 176775

HANDLE, Adjusting

$

$

Not available

23

Simplicity 176985

GRIP, Handle

$

$

Not available

24

Simplicity 1602446

CLIP

$

$

Not available

25

Simplicity 2824940

WASHER, Plain, 3/8

$

$

Not available

26

Simplicity 1602211

BRACKET, Roller Support

$

$

Not available

27

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

28

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

29

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

30

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

31

Simplicity 2819387

WASHER, Plain, 5/8

$

$

Not available

32

Simplicity 1668487SM

ROLLER ASSY.

$9.99

$

Usually ships in 2-12 days

0

33

Simplicity 1607603

SHAFT ASSY., Roller

$

$

Not available

34

Simplicity 108172

PIVOT

$

$

Not available

35

Simplicity 2818448

PIN, Cotter, 3/32 x 1

$

$

Not available

36

Simplicity 176777

GUIDE ASSY., Rod

$

$

Not available

37

Simplicity 930685

BOLT, Carriage, 5/16-18 x 5/8

$

$

Not available

38

Simplicity 1603204

BRACKET, Center Roller

$

$

Not available

39

Simplicity 2827793SM

RING, Retaining
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

40

Simplicity 1603205SM

SHAFT, Center Roller

$29.99

$

Usually ships in 2-12 days

0

41

Simplicity 1668513SM

ROLLER ASSY.

$10.99

$

In Stock, Qty 20+

0

42

Simplicity 1651298

TUBE ASSY., Arbor

$

$

Not available

43

Simplicity 1651404SM

HUB, Pulley

$37.99

$

In Stock, only 2 left!

0
