1690226 - Simplicity Vacuum Collector Vacuum Collector Housing & Engine Group Parts Diagram

Vacuum Collector

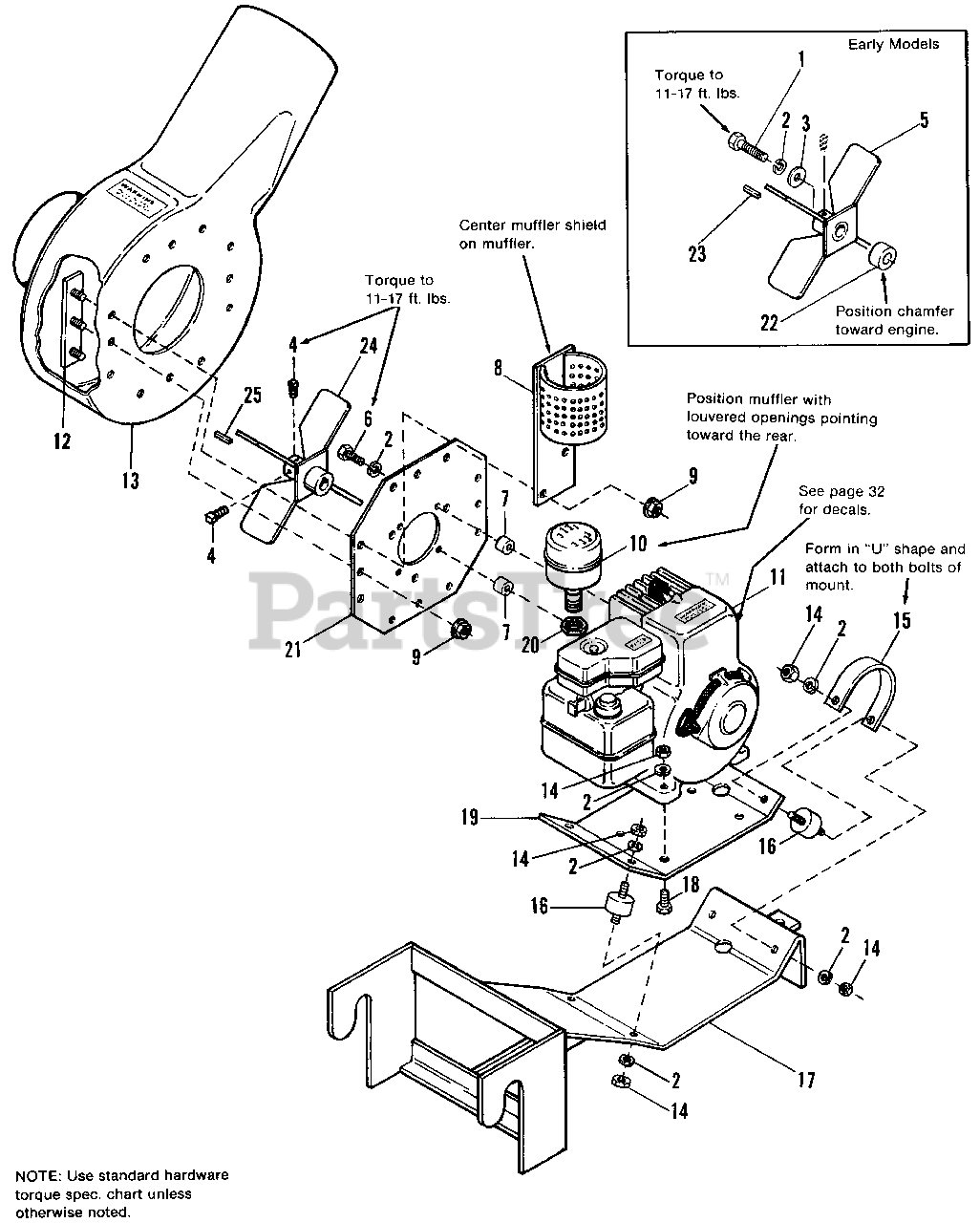

Vacuum Collector Housing & Engine Group Parts Diagram

  • Title

1

Simplicity 2827927

CAPSCREW, Hex Hd., 5/16-24 x 1/2

Note: Used on models with serial no. 2890 and before. (See "Early Models" drawing on page 28. If replacement fan is required, see Ref. No. 24 to update to new design.)

$

$

Not available

2

Simplicity 1917356SM

LOCKWASHER, 5/16 (Qty.17 used before s/n 2890)
(Superseded to 703116)

Note: Used on models with serial no. 2890 and before. (See "Early Models" drawing on page 28. If replacement fan is required, see Ref. No. 24 to update to new design.)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1933468SM

WASHER

Note: Used on models with serial no. 2890 and before. (See "Early Models" drawing on page 28. If replacement fan is required, see Ref. No. 24 to update to new design.)

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

5

FAN ASSY.

$

$

Not available

6

Simplicity 1921982SM

CAPSCREW, Hex Hd., 5/16-24 x 1-1/4
(Superseded to 703299)

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, only 4 left!

0

8

Simplicity 1672133

SHIELD ASSY., Muffler

$

$

Not available

9

Simplicity 1927557SM

LOCKNUT, Hex, Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

10

Simplicity 1657505

MUFFLER

$

$

Not available

11

ENGINE, Briggs & Stratton, 4 HP

$

$

Not available

12

Simplicity 1657456

BAR ASSY.

$

$

Not available

13

Simplicity 1685350SM

HOUSING

$478.99

$

Usually ships in 2-12 days

0

14

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1657460

STRAP, Ground

$

$

Not available

16

Simplicity 2159085SM

CONNECTOR

$10.99

$

In Stock, only 2 left!

0

17

Simplicity 1656968

FRAME ASSY.

$

$

Not available

18

Simplicity 1921221SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

19

Simplicity 123095

PLATE, Engine

$

$

Not available

20

Simplicity 1932850

LOCKNUT, 1/2

$

$

Not available

21

Simplicity 1656972

PLATE, Housing Support

$

$

Not available

22

Simplicity 1654907

SPACER

Note: Used on models with serial no. 2890 and before. (See "Early Models" drawing on page 28. If replacement fan is required, see Ref. No. 24 to update to new design.)

$

$

Not available

23

Simplicity 2805850SM

KEY, 3/16 x 3/16 x 1

Note: Used on models with serial no. 2890 and before. (See "Early Models" drawing on page 28. If replacement fan is required, see Ref. No. 24 to update to new design.)

$

$

Not available

24

Simplicity 1685234SM

FAN ASSY., 3/16 x 3/16 x 1-7/8 (Incl. Ref. Nos. 4 & 25)

Note: Used on models with serial no. 2891 and later.

$

$

Not available

25

Simplicity 1672129SM

KEY

Note: Used on models with serial no. 2891 and later.

$3.99

$

In Stock, only 1 left!

0
