1690210 - Simplicity 42" Mower Deck 42" Drive Group Parts Diagram

42" Mower Deck

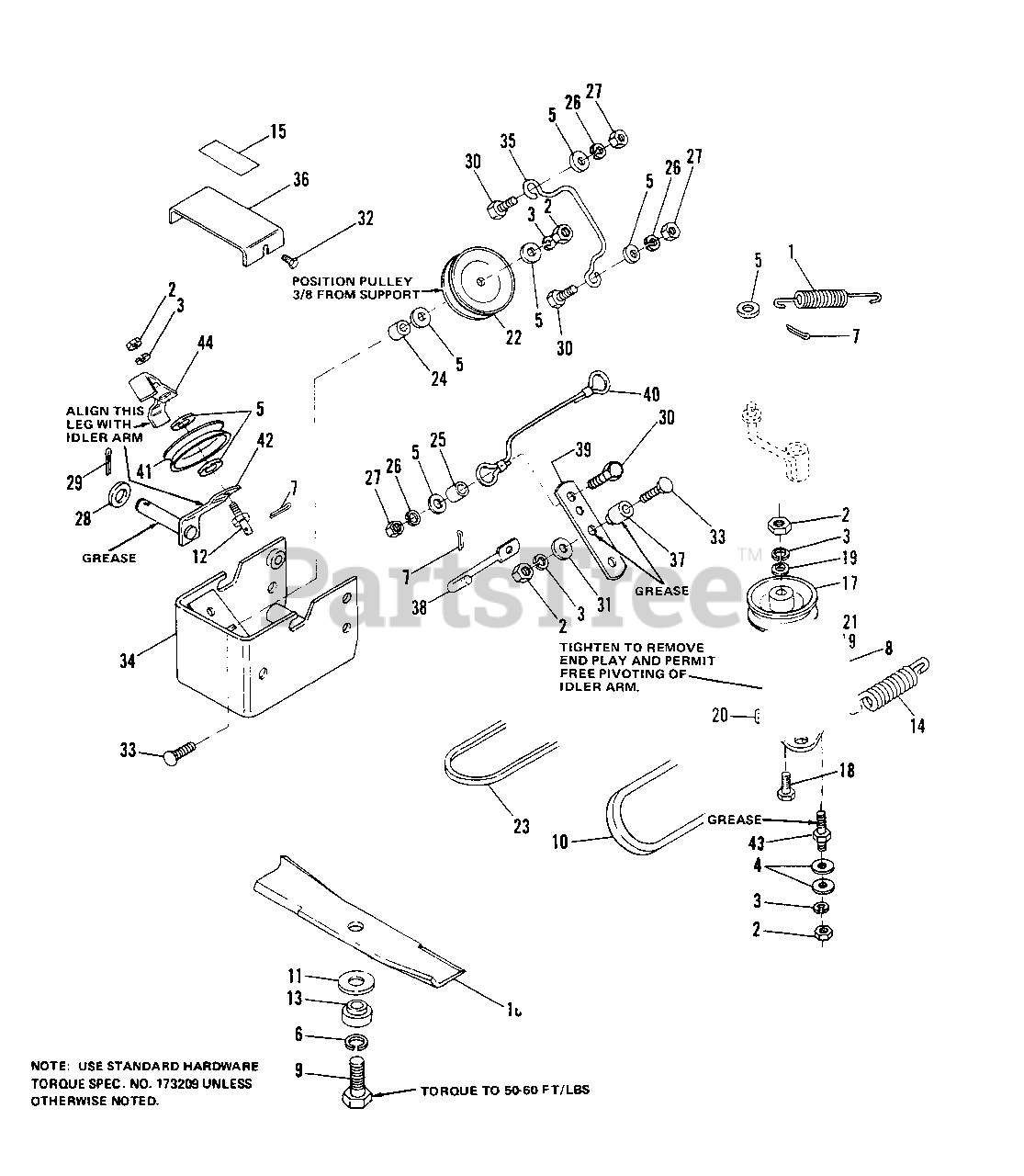

42" Drive Group Parts Diagram

  • Title

$7.49

$

In Stock, only 1 left!

0

2

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

3

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

4

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

6

Simplicity 2818199

LOCKWASHER, Spring, 7/16

$

$

Not available

7

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

8

Simplicity 2823428

NUT, Hex, Full Lock, 3/8-16

$

$

Not available

9

Simplicity 928066

CAPSCREW, Hex Hd., 7/16-20

$

$

Not available

10

Simplicity 2108209

V-BELT, Arbor Drive

$

$

Not available

11

Simplicity 1603592SM

WASHER, Belleville

$11.99

$

Usually ships in 2-12 days

0

$

$

Not available

13

Simplicity 1607585SM

WASHER, Shoulder

$

$

Not available

$17.99

$

Usually ships in 2-12 days

0

15

Simplicity 1657230

DECAL, Caution

$

$

Not available

16

Simplicity 1607536

BLADE, 42" Mower
(Superseded to 1607536ASM)

$25.99

$

Usually ships in 2-12 days

0

17

Simplicity 2164268

PULLEY, Idler

$

$

Not available

18

Simplicity 2821971

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4

$

$

Not available

19

Simplicity 2824940

WASHER, Plain, 3/8

$

$

Not available

20

Simplicity 1603088SM

LEVER ASSY, Idler

$

$

Not available

21

$

$

Not available

$59.99

$

In Stock, only 3 left!

0

23

Simplicity 2108508

V-BELT
(Superseded to 1713515SM)

$34.99

$

In Stock, Qty 20+

0

$39.99

$

In Stock, only 1 left!

0

$11.99

$

Usually ships in 2-12 days

0

26

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

29

Simplicity 2818448

PIN, Cotter, 3/32 x 1

$

$

Not available

30

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

31

Simplicity 2822755

WASHER, Plain, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

32

Simplicity 2827428

SCREW, Hex Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

33

Simplicity 2831352

BOLT, Carriage, 3/8-16 x 1-1/2

$

$

Not available

34

Simplicity 1655931

SUPPORT ASSY, Mower

$

$

Not available

35

Simplicity 1656394

STOP, Belt

$

$

Not available

36

Simplicity 1656406

COVER, Pulley

$

$

Not available

37

$

$

Not available

38

Simplicity 1656759

ROD, Clutch

$

$

Not available

39

Simplicity 1656764

BELLCRANK

$

$

Not available

40

Simplicity 1656771

CABLE ASSY, Brake

$

$

Not available

41

Simplicity 2106716

PULLEY, Idler

$

$

Not available

42

Simplicity 1655940

LEVER ASSY, Idler

$

$

Not available

$46.99

$

Usually ships in 2-12 days

0

44

Simplicity 1656773

GUIDE ASSY, Belt

$

$

Not available
