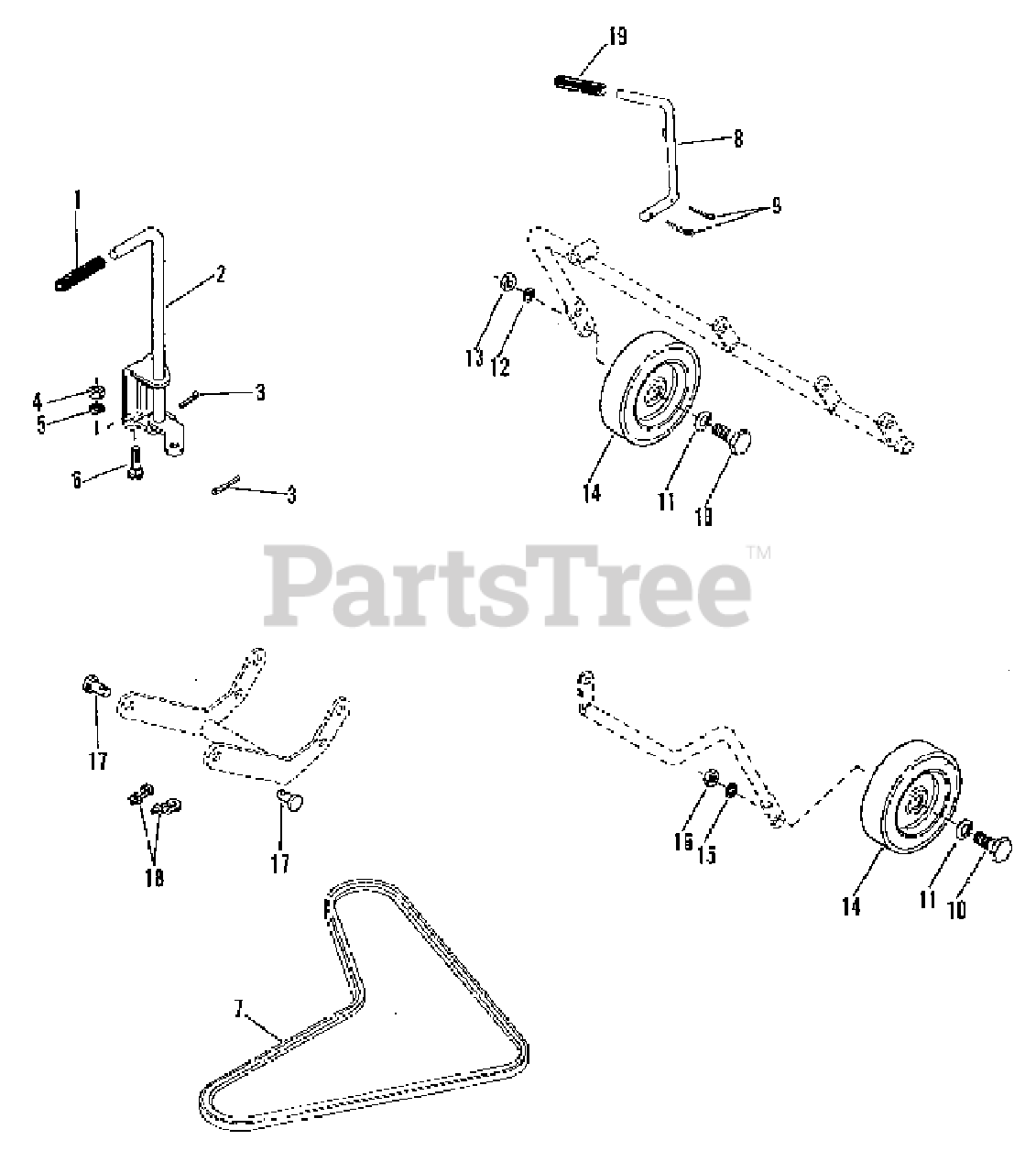

1690205 - Simplicity 36" Mower Deck Wheels & Miscellaneous Group (0228I03) Parts Diagram

36" Mower Deck

Wheels & Miscellaneous Group (0228I03) Parts Diagram

  • Title

1

Simplicity 2176934SM

GRIP, Handle

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1654403

CLUTCH LEVER ASSEMBLY

$

$

Not available

3

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

4

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

7

Simplicity 2108505

BELT, V
(Superseded to 1727773SM)

$34.99

$

In Stock, only 3 left!

0

8

Simplicity 16556096

HANDLE, Control

$

$

Not available

9

Simplicity 2818448

PIN, Cotter, 1/8 x 1

$

$

Not available

10

Simplicity 1653872

BOLT, Wheel

$

$

Not available

11

Simplicity 2170157SM

WASHER, Spring

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

13

Simplicity 2817421

NUT, Hex, Jam, Lock, 3/8-16

$

$

Not available

14

Simplicity 170153

WHEEL & TIRE ASSEMBLY

$

$

Not available

15

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

16

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

17

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 14

0

18

Simplicity 2176012SM

CLIP, Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 2176933SM

GRIP, Handle 1/2 x 3/4

$3.49

$

In Stock, only 1 left!

0
