1690205 - Simplicity 36" Mower Deck Mower Deck & Arbors Group (0228I01) Parts Diagram

36" Mower Deck

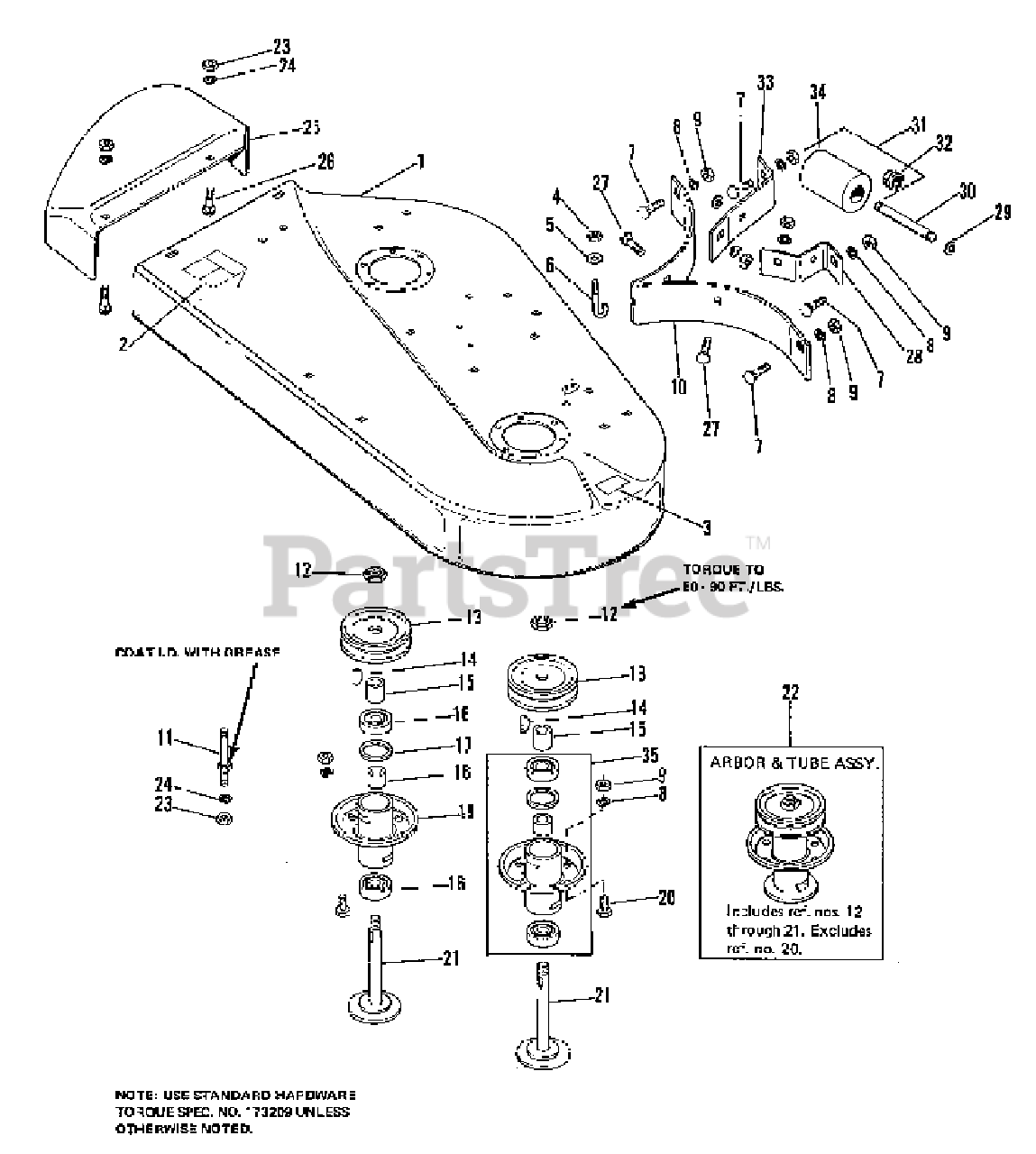

Mower Deck & Arbors Group (0228I01) Parts Diagram

  • Title

1

Simplicity 1653845

DECK, Mower

$

$

Not available

2

Simplicity 1655513

DECAL, Caution, OPEI

$

$

Not available

3

Simplicity 1655497

DECAL, Caution

$

$

Not available

4

Simplicity 2823358

NUT, Hex, Full, Lock, 1/4-20

$

$

Not available

5

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

6

Simplicity 1679385SM

SCREW, Baffle Hook

$9.99

$

In Stock, only 2 left!

0

7

Simplicity 2820562

BOLT, Carriage, Short Neck, 5/16-18 x 3/4

$

$

Not available

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1685239SM

BAFFLE

$111.99

$

Usually ships in 2-12 days

0

11

Simplicity 1656104

STUD, 2-5/8

$

$

Not available

12

Simplicity 2822133

NUT, Full, Jam, 3/4-16

$

$

Not available

13

Simplicity 2106057SM

PULLEY

$92.99

$

Usually ships in 2-12 days

0

14

Simplicity 2818312SM

KEY, No. 61, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0

15

Simplicity 1653481

SPACER

$

$

Not available

16

Simplicity 2108202SM

BALL, Bearing

$11.99

$

In Stock, Qty 20+

0

17

Simplicity 2108134

RING, Backing

$

$

Not available

18

Snapper 2108201SM

SPACER

$19.99

$

In Stock, only 1 left!

0

19

Simplicity 1653490

ARBOR TUBE ASSEMBLY

$

$

Not available

20

Simplicity 2821332

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

21

Simplicity 1655983

ARBOR ASSEMBLY

$

$

Not available

22

Simplicity 1685077

ARBOR & TUBE ASSEMBLY

$

$

Not available

23

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

24

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

25

Simplicity 1702190SM

DEFLECTOR, Mower
(Superseded to 1702190ASM)

$112.99

$

Usually ships in 2-12 days

0

26

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

27

Simplicity 2820561

BOLT, Carriage, 5/16-18 x 5/8

$

$

Not available

28

Simplicity 1705953SM

BRACKET, L.H., Roller
(Superseded to 1705953ASM)

$16.99

$

Usually ships in 2-12 days

0

29

Simplicity 2827793SM

RING, "E"
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

30

Simplicity 1603205SM

SHAFT, Center Roller

$29.99

$

Usually ships in 2-12 days

0

31

Simplicity 103431

ROLLER ASSEMBLY

$

$

Not available

32

Simplicity 103419

BUSHING

$

$

Not available

33

Simplicity 1705953SM

BRACKET, R.H., Roller
(Superseded to 1705953ASM)

$16.99

$

Usually ships in 2-12 days

0

34

Simplicity 2108178

ROLLER

$

$

Not available

35

Simplicity 1658039

TUBE & BEARING ASSEMBLY

$

$

Not available
