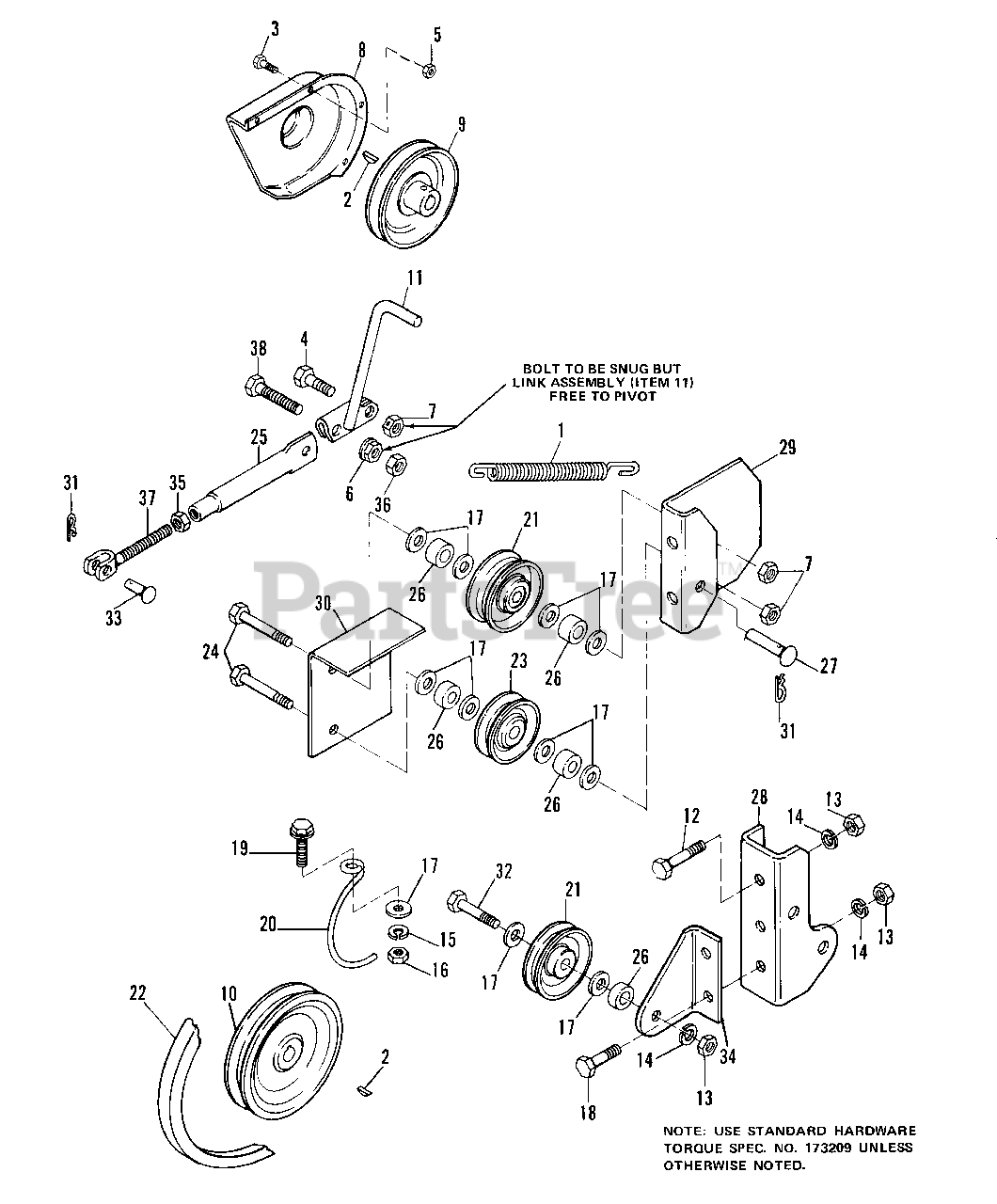

1690194 - Simplicity 30" Rotary Tiller Attachment Drive & Clutch Group Parts Diagram

30" Rotary Tiller Attachment

Drive & Clutch Group Parts Diagram

  • Title

1

Simplicity 1716853SM

SPRING

$12.99

$

In Stock, only 4 left!

0

2

Simplicity 2805123SM

KEY, Woodruff, No. 9, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 2808295

CAPSCREW, Hex, 1/4-20 x 1/2

$

$

Not available

4

Simplicity 2825204

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

5

Simplicity 2823358

LOCKNUT, Hex, Full, 1/4-20

$

$

Not available

6

Simplicity 2830645

LOCKNUT, Hex, Full, 3/8-16

$

$

Not available

7

Simplicity 2823428

LOCKNUT, Hex, Full, 3/8-16

$

$

Not available

8

Simplicity 1656085

GUARD, Belt-Pulley

$

$

Not available

9

Simplicity 1657023

PULLEY (Driven)

$

$

Not available

10

Simplicity 170395

PULLEY, (Driven)

$

$

Not available

11

Simplicity 1655815

LEVER ASSY, Clutch

$

$

Not available

12

Simplicity 2808127

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

13

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

15

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

18

Simplicity 2819357

CAPSCREW, Hex, 3/8-16 x 7/8

$

$

Not available

19

Simplicity 2830255

SCREW, Lock, Flange, 5/16-18 x 3/4

$

$

Not available

20

Simplicity 1656003

STOP, Belt

$

$

Not available

21

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

22

Simplicity 2163011

V-BELT

$

$

Not available

23

Simplicity 2174561SM

PULLEY, Idler

$53.99

$

Usually ships in 2-12 days

0

24

Simplicity 2817402

CAPSCREW, Hex, 3/8-16 x 2

$

$

Not available

25

Simplicity 1655650

LINK, Clutch

$

$

Not available

26

Simplicity 1610404

SPACER

$

$

Not available

27

Simplicity 1655998

PIN

$

$

Not available

28

Simplicity 1655999

BRACKET, Pulley Support

$

$

Not available

29

Simplicity 1656000

SUPPORT, Pulley

$

$

Not available

30

Simplicity 1656084

GUARD, Idler Pulley

$

$

Not available

31

Simplicity 1918196SM

CLIP, Pin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 2819360

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

33

Simplicity 1655651SM

PIN, Lock
(Superseded to 1733568SM)

$6.99

$

In Stock, only 2 left!

0

34

Simplicity 1655819

BRACKET, Pulley

$

$

Not available

35

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

36

Simplicity 2828731

LOCKNUT, Hex, Half, 3/8-16

$

$

Not available

37

Simplicity 1655649

CLEVIS ASSY, Adj.

$

$

Not available

38

Simplicity 2821971

CAPSCREW, Hex, 3/8-16 x 1-3/4

$

$

Not available
