1690180 - Simplicity Grass Catcher 30" Grass Catcher Parts Diagram

Grass Catcher

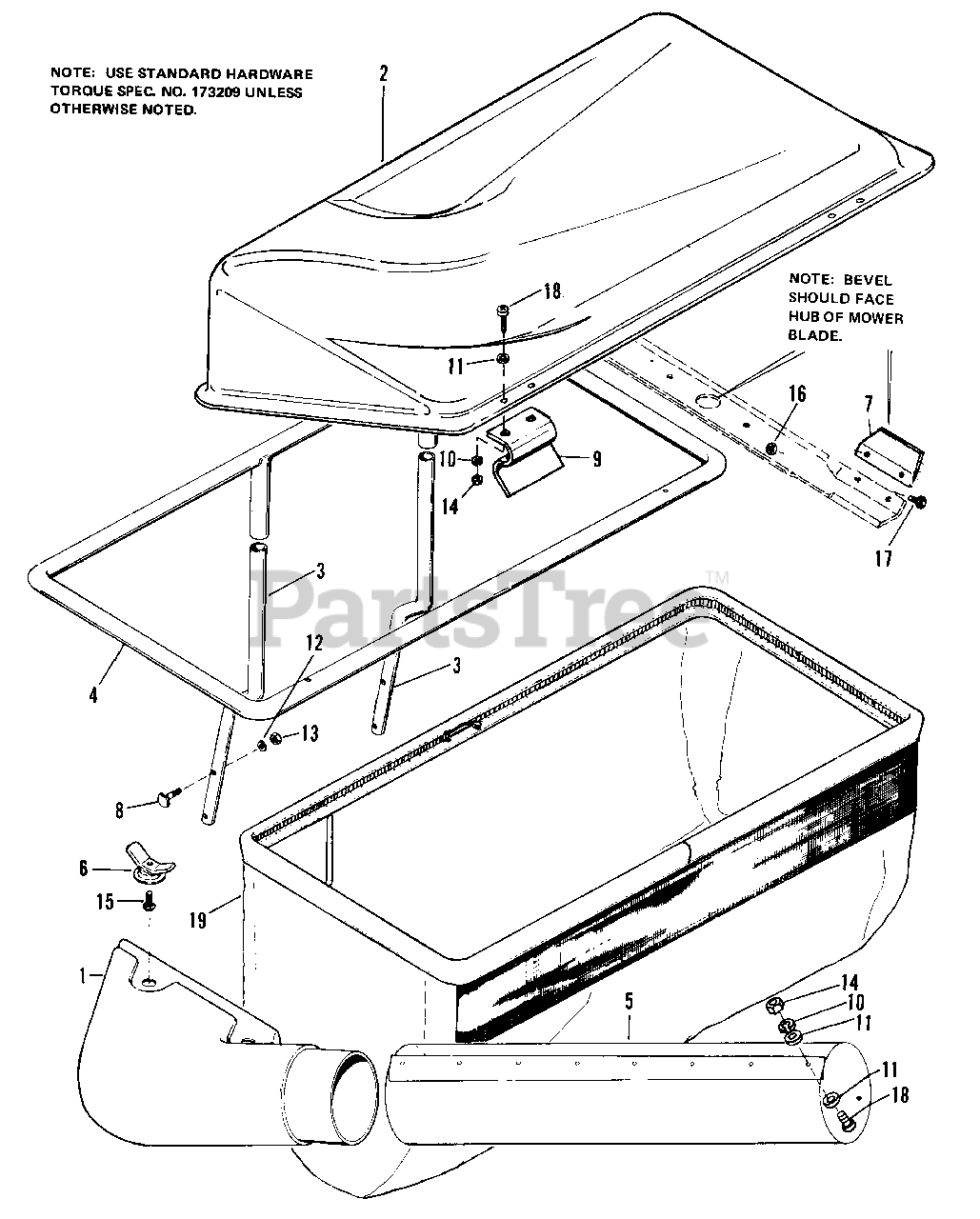

30" Grass Catcher Parts Diagram

  • Title

1

Simplicity 176871

ADAPTOR

$

$

Not available

2

Simplicity 177019

COVER

$

$

Not available

3

Simplicity 177096

SUPPORT, Verticle

$

$

Not available

4

Simplicity 178364

SUPPORT ASSY

$

$

Not available

5

Simplicity 1666525SM

TUBE, Intake

$75.99

$

Usually ships in 2-12 days

0

6

Simplicity 2123103

NUT ASSY

$

$

Not available

7

Simplicity 177243

PLATE, Lift

$

$

Not available

8

Simplicity 177249

BOLT, Curved Head

$

$

Not available

9

Simplicity 178609

CLIP

$

$

Not available

10

Simplicity 1909055SM

LOCKWASHER, No. 10, 3/16, Internal Tooth

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 2816955

WASHER, Plain, 3/16

$

$

Not available

12

Simplicity 1917356SM

LOCKWASHER. Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 2817415

NUT, Hex, Mach. No. 10-32

$

$

Not available

15

Simplicity 2820563

BOLT, Carriage, 5/16-18 x 1

$

$

Not available

16

Simplicity 2823362

NUT, Hex, Lock, 5/16-18

$

$

Not available

17

Simplicity 2825205

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

18

Simplicity 2830531

SCREW, Truss Hd., No. 10-32 x 1/2

$

$

Not available

19

Simplicity 1655506

GRASS BAG

$

$

Not available
