1690170 - Simplicity Lift Lever Lift Lever Parts Diagram

Lift Lever

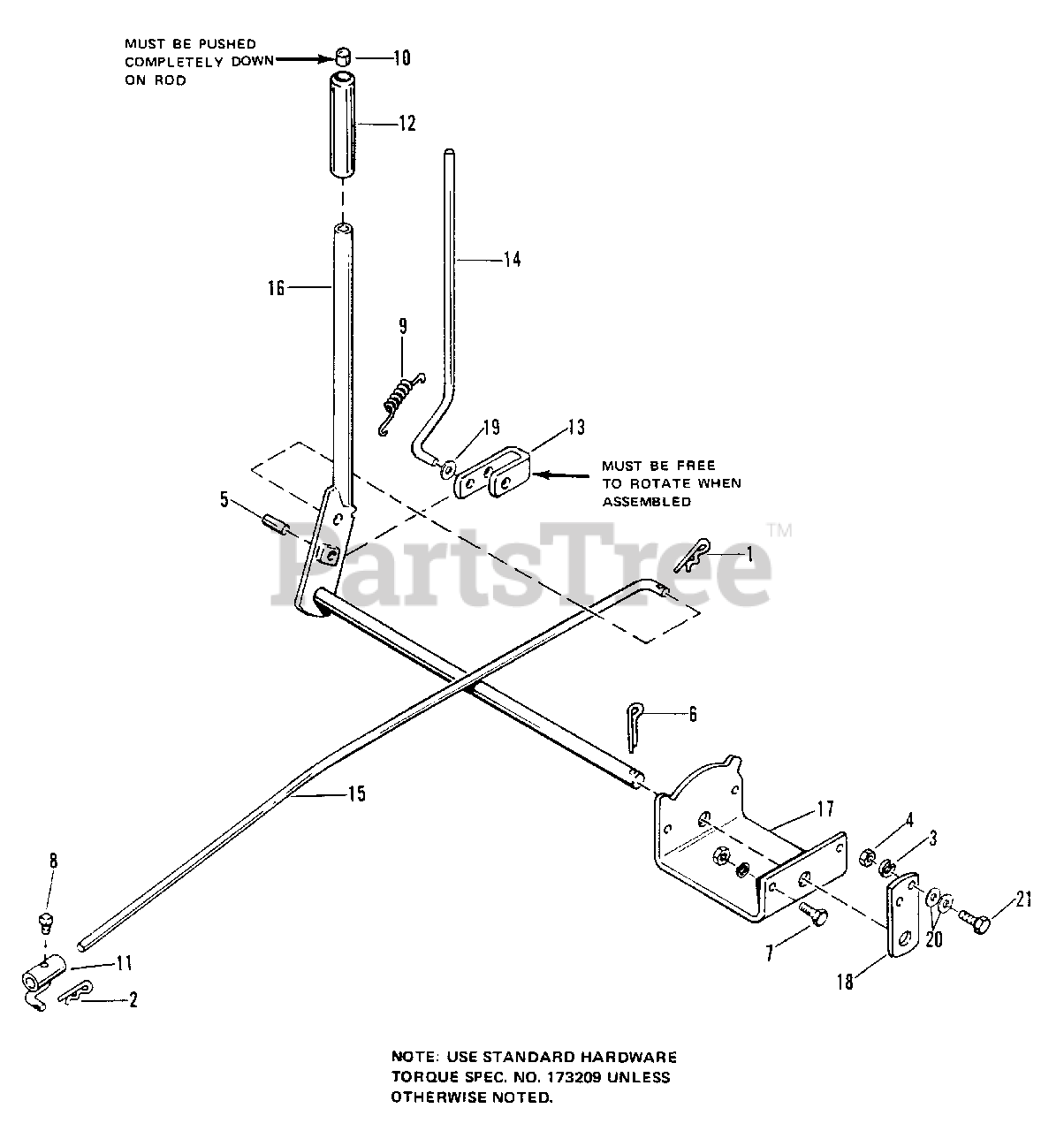

Lift Lever Parts Diagram

  • Title

1

Simplicity 2106787

CLIP, Spring

$

$

Not available

2

Simplicity 2106788

CLIP, Spring

$

$

Not available

3

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2818113

PIN, Roll, 3/8 x 1

$

$

Not available

6

Simplicity 2818448

PIN, Cotter, 3/32 x 1

$

$

Not available

7

Simplicity 2821332

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

8

Simplicity 2828709

SETSCREW. Sq. Hd., Gr. 8, 5/16-18 x 3/8

$

$

Not available

9

Simplicity 1650155SM

SPRING

$7.49

$

Usually ships in 2-12 days

0

10

Simplicity 1650157SM

BUTTON

$7.49

$

In Stock, only 1 left!

0

11

Simplicity 1651496

GUIDE, Rod

$

$

Not available

12

Simplicity 1713995SM

GRIP, Lift Lever

$12.99

$

Usually ships in 2-12 days

0

13

Simplicity 154224

LATCH, Lift Lever

$

$

Not available

14

Simplicity 1654339

LATCH, Rod

$

$

Not available

15

Simplicity 1654793

LIFT, Rod

$

$

Not available

16

Simplicity 1654338

LIFT LEVER

$

$

Not available

17

Simplicity 1654791

QUARDRANT, Lift

$

$

Not available

18

Simplicity 1654790

SHAFT, Support

$

$

Not available

19

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

20

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

21

Simplicity 2821333

CAPSCREW, 5/16-18 x 1

$

$

Not available
