1690169 - Simplicity 36" Snow Thrower Attachment Drive Group Parts Diagram

36" Snow Thrower Attachment

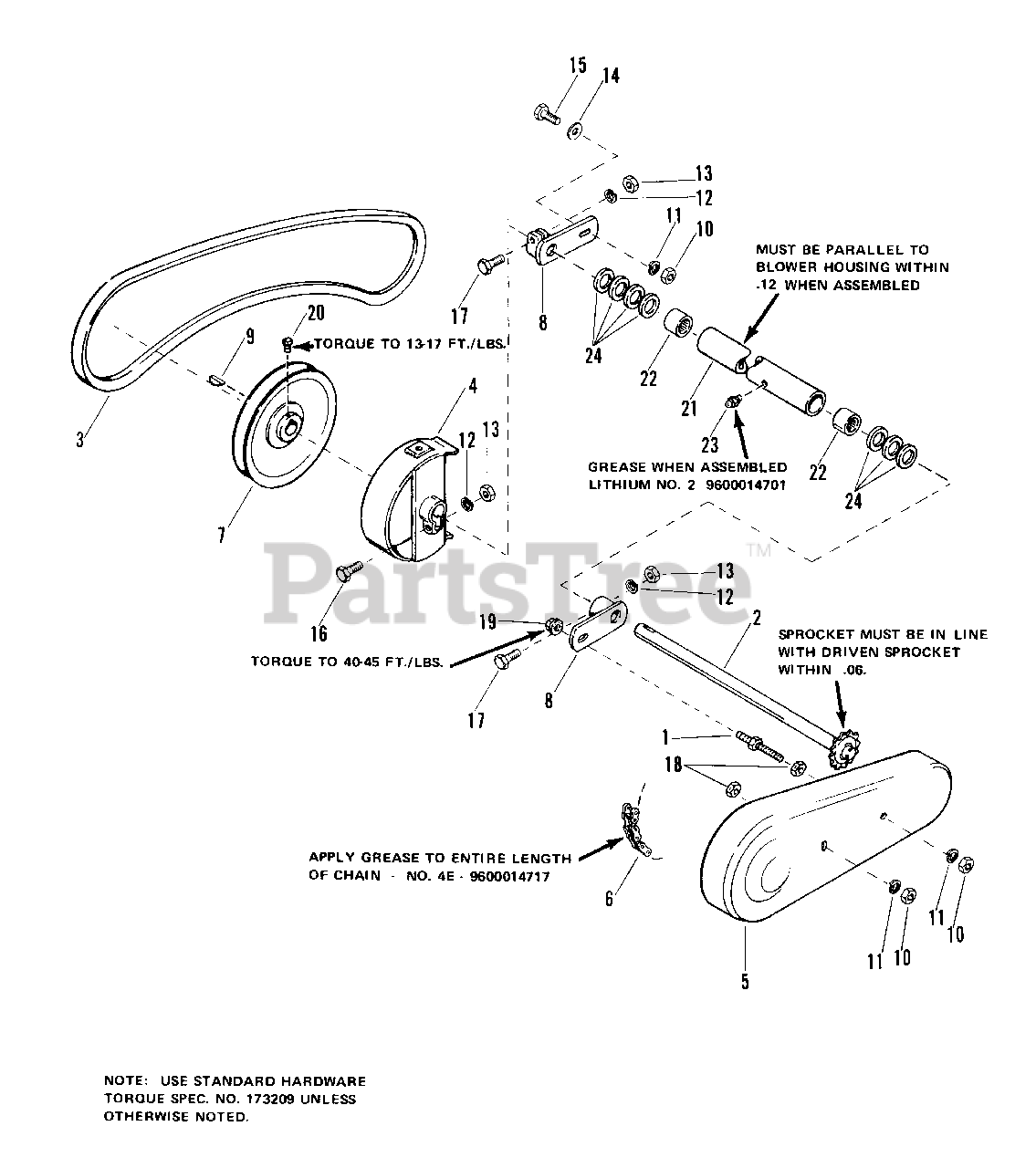

Drive Group Parts Diagram

  • Title

1

Simplicity 106771

STUD

$

$

Not available

2

Simplicity 2106860SM

SHAFT ASSEMBLY

$70.99

$

Usually ships in 2-12 days

0

3

Simplicity 2108514SM

V-BELT, 110.1"

$57.99

$

Usually ships in 2-12 days

0

4

Simplicity 171211

GUARD, Belt

$

$

Not available

5

Simplicity 2171220

GUARD, Chain

$

$

Not available

6

Simplicity 2171242SM

CHAIN

$66.99

$

Usually ships in 2-12 days

0

7

Simplicity 2171248SM

PULLEY

$103.99

$

Usually ships in 2-12 days

0

8

Simplicity 176161

CLAMP, Housing

$

$

Not available

9

Simplicity 2805123SM

KEY, Woodruff, No. 9, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

10

Simplicity 2816950SM

NUT, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

11

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

12

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1917372SM

NUT, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

16

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1 1/2

$

$

Not available

17

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 2823428

NUT, Full Lock, 3/8-16

$

$

Not available

19

Simplicity 2828352

NUT, Flange Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

20

Simplicity 2828721

SETSCREW, Sq. Hd., 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 10

0

21

Simplicity 2106864A

BEARING, Housing

$

$

Not available

22

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, Qty 8

0

23

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

24

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 7

0
