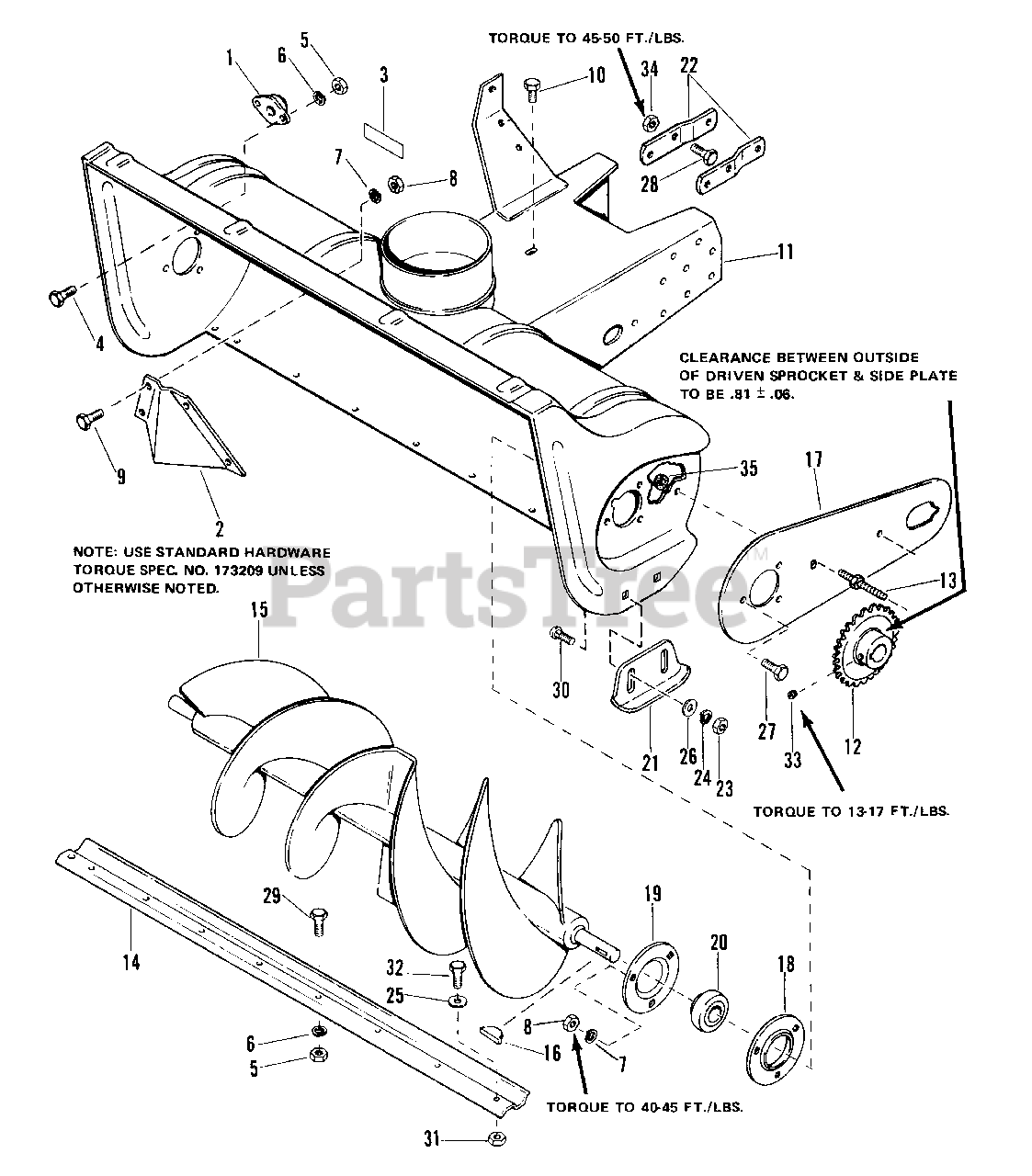

1690169 - Simplicity 36" Snow Thrower Attachment Body and Rotor Group Parts Diagram

36" Snow Thrower Attachment

Body and Rotor Group Parts Diagram

  • Title

1

Simplicity 2106491SM

BEARING

$11.99

$

Usually ships in 2-12 days

0

2

Simplicity 2106774ASM

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0

3

Simplicity 2161247

DECAL, Safety

$

$

Not available

4

Simplicity 2807727

CAPSCREW, 1/4-20 x 5/8

$

$

Not available

5

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2819318

CAPSCREW, Hex, 5/16-18 x 5/8

$

$

Not available

10

Simplicity 2824856

SCREW. Self-tapping, 5/16-18 x 1/2

$

$

Not available

11

Simplicity 1713541SM

BODY AND FRAME ASSEMBLY
(Superseded to 1713541ASM)

$655.99

$

Usually ships in 2-12 days

0

12

Simplicity 2106653SM

SPROCKET

$98.99

$

Usually ships in 2-12 days

0

13

Simplicity 106771

STUD

$

$

Not available

14

Simplicity 2106863ASM

SCRAPER, Body

$213.99

$

Usually ships in 2-12 days

0

15

Simplicity 2106856

ROTOR

$

$

Not available

16

Simplicity 2151040SM

KEY, Hi-pro

$9.49

$

In Stock, only 2 left!

0

17

Simplicity 2171221

SIDE PLATE

$

$

Not available

18

Simplicity 2172278ASM

FLANGE, Brg.

$11.99

$

In Stock, Qty 6

0

19

Simplicity 2172279ASM

FLANGE, Brg., w/fitting

$14.99

$

Usually ships in 2-12 days

0

20

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, Qty 19

0

21

Simplicity 2177434C

SKID

$

$

Not available

22

Simplicity 2177565ASM

CLIP, Frame

$13.99

$

In Stock, only 2 left!

0

23

Simplicity 2816950SM

NUT, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

24

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

25

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

26

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 2817397

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

28

Simplicity 2820676SM

CAPSCREW, Hex Hd., 7/16-14 x 1

$4.49

$

In Stock, Qty 6

0

29

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

30

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

31

Simplicity 2823362

LOCKNUT, 5/16-18

$

$

Not available

32

Simplicity 2825205

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

33

Simplicity 2828691

SETSCREW. Skt. 5/16-18 x 5/16

$

$

Not available

34

Simplicity 2830650

NUT, Flange, 2-way Lock, 7/16-14

$

$

Not available

35

Simplicity 2828352

LOCKNUT, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0
