1690089 - Simplicity 46" Snow Plow & Dozer Blade Hitch 46" Dozer Blade Hitch Parts Diagram

46" Snow Plow & Dozer Blade Hitch

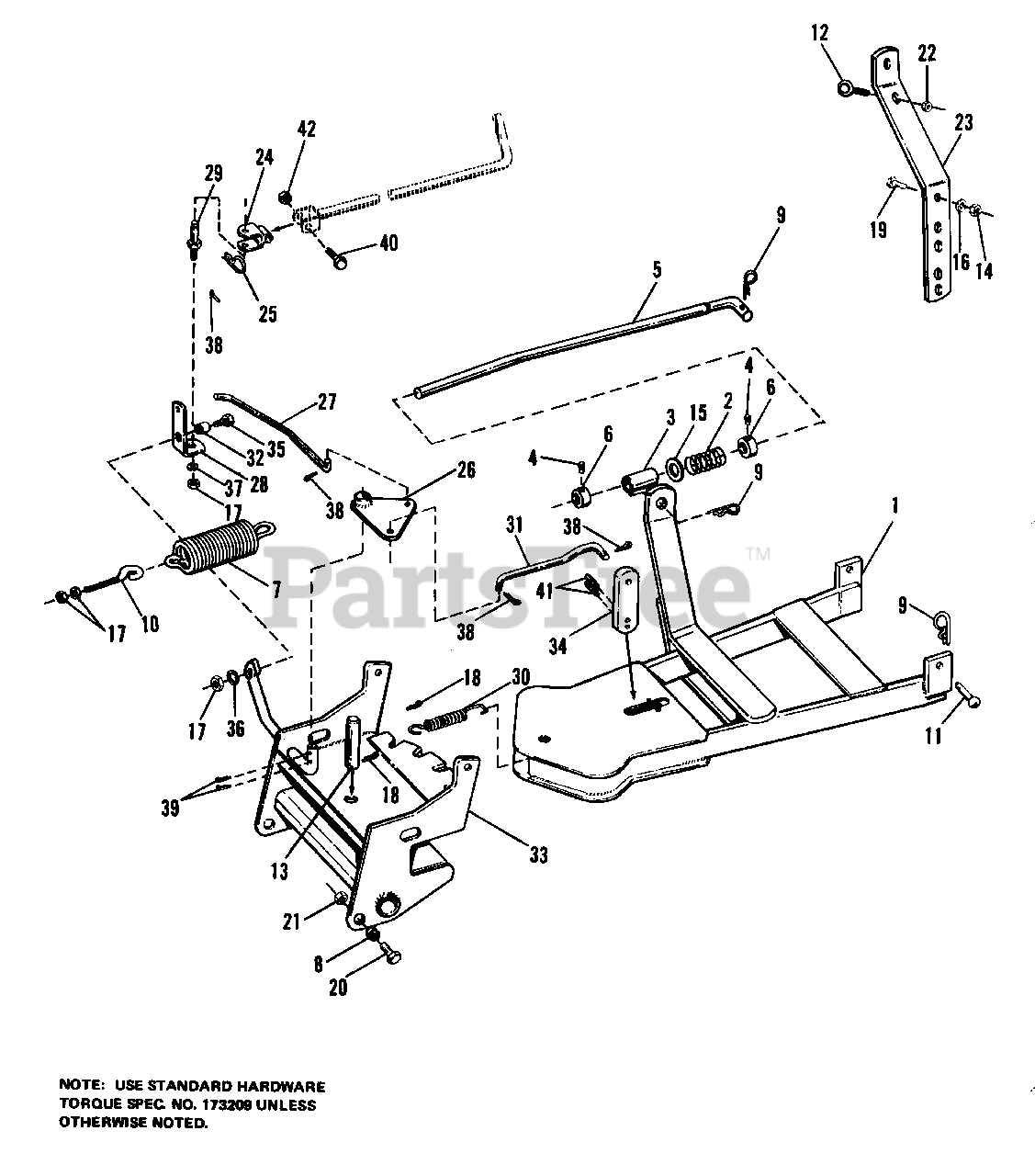

46" Dozer Blade Hitch Parts Diagram

  • Title

1

Simplicity 1607913

BAR ASSY, Push

$

$

Not available

2

Simplicity 2171011SM

SPRING

$75.99

$

In Stock, only 1 left!

0

3

Simplicity 2171679SM

GUIDE ASSY, Rod

$76.99

$

Usually ships in 2-12 days

0

4

Simplicity 2828721

SETSCREW. Sq.Hd., 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

5

Simplicity 1666285SM

ROD, Lift

$104.99

$

Usually ships in 2-12 days

0

6

Simplicity 1729258SM

COLLAR
(Superseded to 5010477YP)

$

$

Not available

7

Simplicity 2101126SM

SPRING, Tension

$46.99

$

In Stock, only 1 left!

0

8

Simplicity 2105051

SPACER

$

$

Not available

9

Simplicity 2106788

CLIP, Spring

$

$

Not available

10

Simplicity 2107121SM

EYEBOLT

$14.99

$

Usually ships in 2-12 days

0

11

Simplicity 2118053SM

PIN, King
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

12

Simplicity 2172162SM

EYEBOLT

$12.99

$

Usually ships in 2-12 days

0

13

Simplicity 2174066SM

PIN, Pivot

$44.99

$

Usually ships in 2-12 days

0

14

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

15

Simplicity 2816960

WASHER, Plain, 1/2

$

$

Not available

16

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

17

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 2819314

PIN, Cotter

$

$

Not available

19

Simplicity 2819357

CAPSCREW, Hex, 3/8-16 x 7/8

$

$

Not available

20

Simplicity 2820328

CAPSCREW, Hex, 1/2-13

$

$

Not available

21

Simplicity 2822134

NUT, Hex, Lock, 1/2-13

$

$

Not available

22

Simplicity 2823358

NUT, Hex, Lock, 1/4-20

$

$

Not available

23

Simplicity 1608075

BRACKET, Handle Support

$

$

Not available

24

Simplicity 2106131SM

FORK ASSY

$75.99

$

Usually ships in 2-12 days

0

25

Simplicity 2106787

CLIP, Spring

$

$

Not available

26

Simplicity 2107116SM

PLATE ASSY, Pivot

$

$

Not available

27

Simplicity 2107118SM

ROD, Pivot

$9.99

$

Usually ships in 2-12 days

0

28

Simplicity 107119

ARM, Pivot

$

$

Not available

29

Simplicity 2107120SM

STUD, Pivot

$38.99

$

Usually ships in 2-12 days

0

30

Simplicity 2107135SM

SPRING

$32.99

$

Usually ships in 2-12 days

0

31

Simplicity 2107136SM

LATCH, Rod

$53.99

$

Usually ships in 2-12 days

0

32

Simplicity 2156150SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

33

Simplicity 2174054

FRAME ASSY, Pivot

$

$

Not available

34

Simplicity 2174073SM

LATCH

$42.99

$

Usually ships in 2-12 days

0

35

Simplicity 2816431

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

36

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

38

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

39

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

40

Simplicity 2819933

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

41

Simplicity 2821469SM

PIN, Spring, 7/32 x 1

$3.49

$

Usually ships in 2-12 days

0

42

Simplicity 2823362

NUT, Hex, 5/16-18

$

$

Not available

43

Simplicity 2156089

WASHER

$

$

Not available
