1690088 - Simplicity 46" Snow Plow & Dozer Blade 46" Dozer Blade Parts Diagram

46" Snow Plow & Dozer Blade

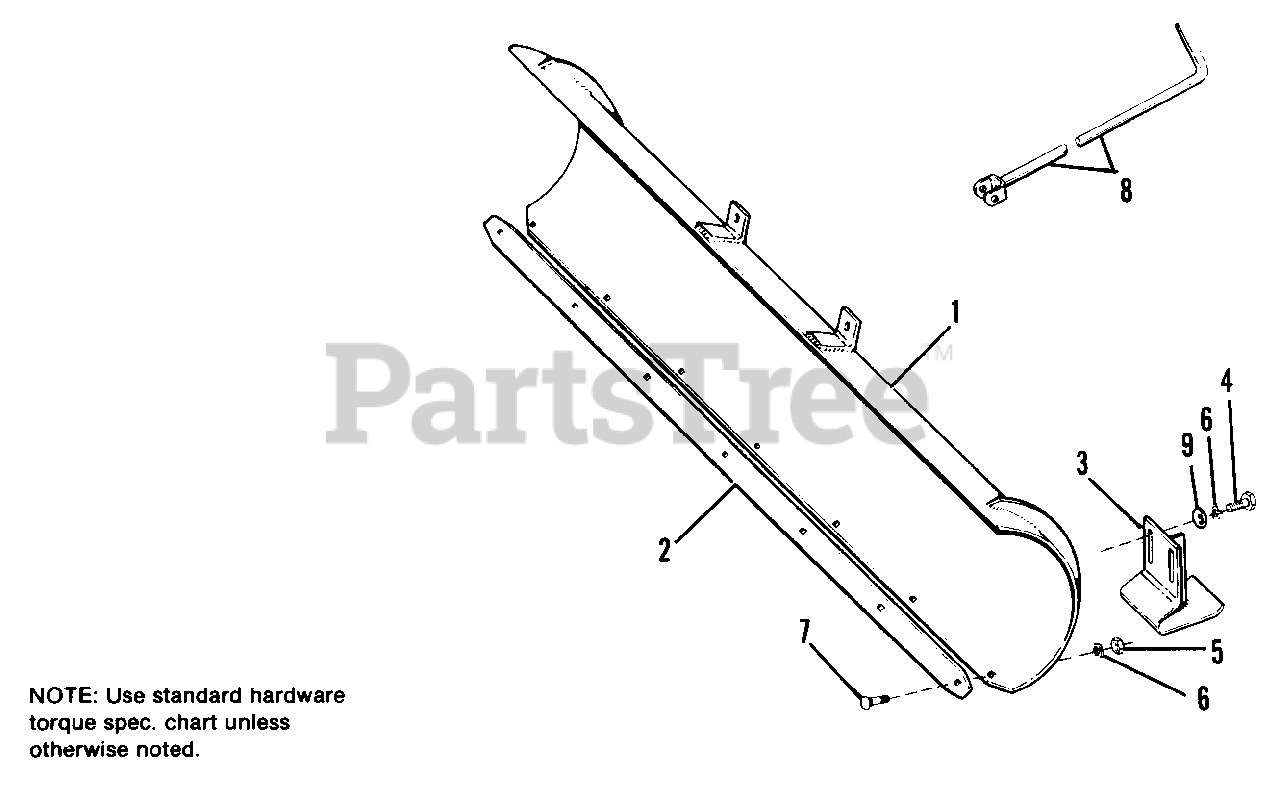

46" Dozer Blade Parts Diagram

  • Title
1

Simplicity 2107096

BLADE ASSY.

$

$

Not available

2

Simplicity 2107105SM

PLATE, Wear

$

$

Not available

3

Simplicity 2107106SM

SHOE ASSY.
(Superseded to 2107106ASM)

$68.99

$

In Stock, only 3 left!

0

4

Simplicity 1921965SM

CAPSCREW, Hex Hd., 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

7

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

8

Simplicity 1607472

ROD ASSY., Control

$

$

Not available

9

Simplicity 1924940SM

WASHER, Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
