1690086 - Simplicity Sovereign Garden Tractor, 16hp 7010-7016 FRAME, HOOD, GRILL & INSTRUMENT PANEL Parts Diagram

Sovereign Garden Tractor, 16hp

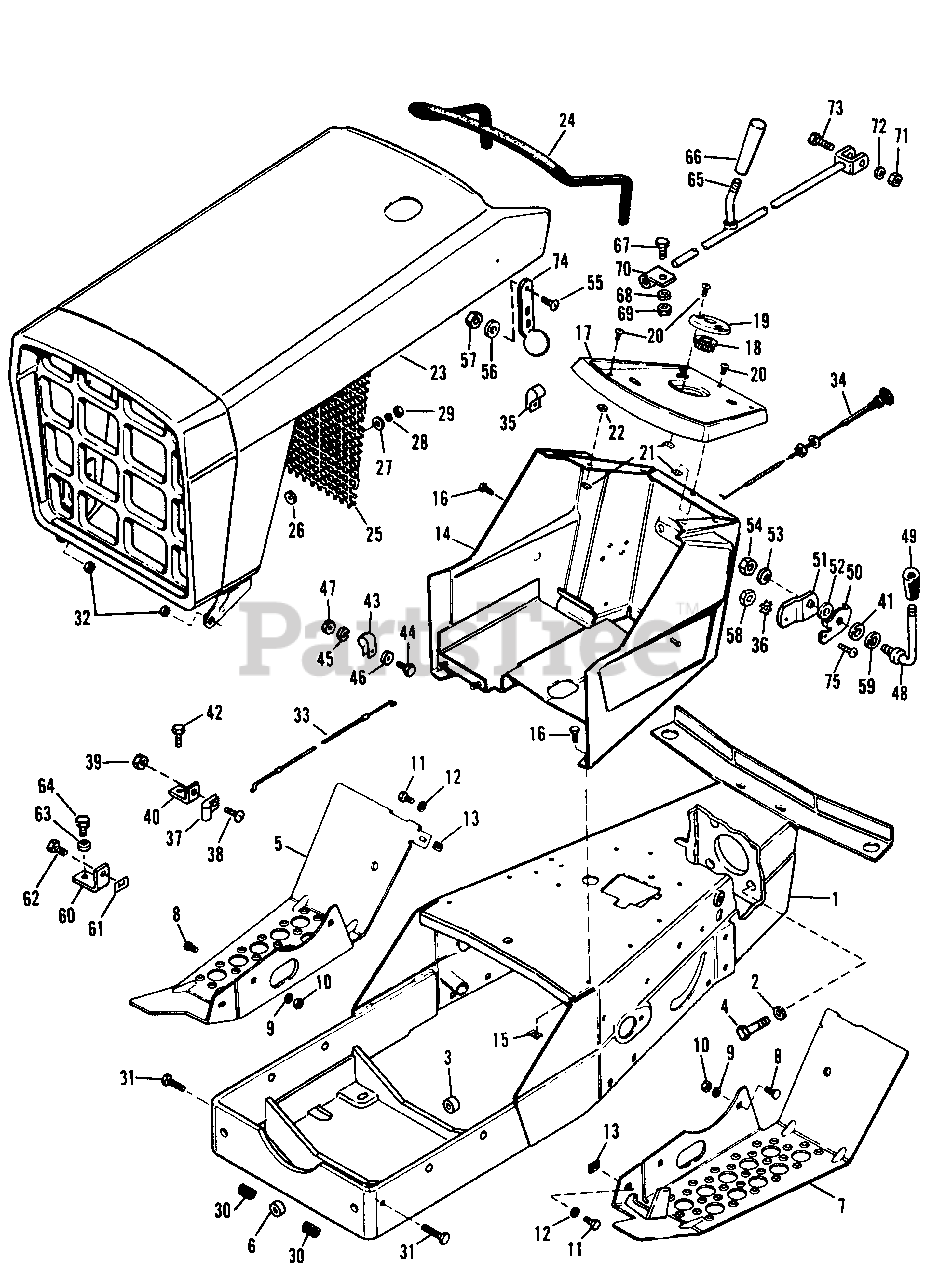

7010-7016 FRAME, HOOD, GRILL & INSTRUMENT PANEL Parts Diagram

  • Title

1

Simplicity 1650294

FRAME ASSEMBLY

$

$

Not available

2

Simplicity 2818199

LOCKWASHER, 7/16"

$

$

Not available

3

Simplicity 2154289SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

4

Simplicity 916608

CAPSCREW, Hex, 7/16"-14 x 1-1/2" lg.

$

$

Not available

5

Simplicity 171271

FOOT REST, R.H.

$

$

Not available

6

Simplicity 2174662SM

BUSHING

$58.99

$

Usually ships in 2-12 days

0

7

Simplicity 176628

FOOT REST, L.H.

$

$

Not available

8

Simplicity 2823346

BOLT, Carriage 5/16"-18 x 3/4" lg.

$

$

Not available

9

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917372SM

NUT, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 2817397

CAPSCREW Hex, 5/16-18 x 3/4" lg.

$

$

Not available

12

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 2820470

NUT, Tinnerman

$

$

Not available

14

Simplicity 1685408SM

DASH ASSEMBLY

$

$

Not available

15

Simplicity 9287-03

NUT, Tinnerman

$

$

Not available

16

Simplicity 2830561

SCREW, Self Tapping #14 x 3/4" lg.

$

$

Not available

17

Simplicity 165100

PANEL, Instrument

$

$

Not available

18

Simplicity 2157077SM

BUSHING, Steering

$140.99

$

Usually ships in 2-12 days

0

19

Simplicity 2172008SM

PLATE, Steering
(Superseded to 2172008ASM)

$38.99

$

Usually ships in 2-12 days

0

20

Simplicity 2826025

SCREW, Phillips, 1/4"-20 x 1/2" lg.

$

$

Not available

21

Simplicity 2817867

NUT, Tinnerman

$

$

Not available

22

Simplicity 2816955

WASHER, Plain, 3/16"

$

$

Not available

23

Simplicity 1651135

HOOD & GRILLE ASSEMBLY

$

$

Not available

24

Simplicity 2172935

MOLDING, Hood

$

$

Not available

25

Simplicity 1651162

SCREEN, Grille

$

$

Not available

26

Simplicity 2171804

WASHER

$

$

Not available

27

Simplicity 2172742

WASHER

$

$

Not available

28

Simplicity 2822711

LOCKWASHER, Shake Shakeproof #10

$

$

Not available

29

Simplicity 2816621

NUT, Hex, Full, #10-24

$

$

Not available

30

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

31

Simplicity 2819360

CAPSCREW, Hex, 3/8"-16 x 1-1/2" lg.

$

$

Not available

32

Simplicity 2823428

NUT, Hex, Full, Lock, 3/8"-16

$

$

Not available

33

Simplicity 2171355SM

CONTROL, Throttle

$42.99

$

Usually ships in 2-12 days

0

34

Simplicity 1650997SM

CONTROL, Choke

$103.99

$

Usually ships in 2-12 days

0

35

Simplicity 2158475SM

CLIP, Bowden, Wire

$5.49

$

In Stock, only 4 left!

0

36

Simplicity 2822711

LOCKWASHER, Shakeproof #10

$

$

Not available

37

Simplicity 2158475SM

CLIP, Bowden, Wire

$5.49

$

In Stock, only 4 left!

0

38

Simplicity 922121

SCREW, Rd. Hd., #10-30 x 3/8" lg.

$

$

Not available

39

Simplicity 2817415

NUT, Hex, Full, #10-32

$

$

Not available

40

Simplicity 157315

BRACKET, Throttle

$

$

Not available

41

Simplicity 2156116

WASHER

$

$

Not available

42

Simplicity 2825391

SCREW, Self Tapping, 1/4"-20 x 5/8" lg.

$

$

Not available

43

Simplicity 122186

CLAMP

$

$

Not available

44

Simplicity 2807727

CAPSCREW, Hex, 1/4"-20 x 5/8" lg.

$

$

Not available

45

Simplicity 2816964SM

LOCKWASHER, 1/4"
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

46

Simplicity 2817377

WASHER, Plain, 1/4"

$

$

Not available

47

Simplicity 2816622SM

NUT, Hex, Full, 1/4"-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

48

Simplicity 1686629SM

HANDLE, Clutch

$31.99

$

Usually ships in 2-12 days

0

49

Simplicity 2172038SM

KNOB
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 6

0

50

Simplicity 2103280SM

STOP, Throttle

$

$

Not available

51

Simplicity 2158424

ATM, Throttle

$

$

Not available

52

Simplicity 2159107SM

WASHER

$6.99

$

Usually ships in 2-12 days

0

53

Simplicity 2830665

WASHER, Dish Type

$

$

Not available

54

Simplicity 2823428

NUT, Hex, Full, Lock, 3/8"-16

$

$

Not available

55

Simplicity 2830531

SCREW, Phillips Hd. #10-32 x 1/2" lg.

$

$

Not available

56

Simplicity 2171804

WASHER

$

$

Not available

57

Simplicity 2830627

NUT, Center Lock, #10-32

$

$

Not available

58

Simplicity 2817415

NUT, Hex, Full, #10-32

$

$

Not available

59

Simplicity 2101025SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

60

Simplicity 2158611

BRACKET, Pulley Guard

$

$

Not available

61

Simplicity 2817867

NUT, Tinnerman

$

$

Not available

62

Simplicity 2827340

CAPSCREW, Hex, 1/4"-20 x 3/4" lg.

$

$

Not available

63

Simplicity 2816955

WASHER, Plain, 3/16"

$

$

Not available

64

Simplicity 2830562

CAPSCREW, #14 x 1-1/4 "lg

$

$

Not available

65

Simplicity 171559

ROD ASSEMBLY, Shifter

$

$

Not available

66

Simplicity 2164180

HANDLE

$

$

Not available

67

Simplicity 2830570

CAPSCREW, Hex, 5/16"-18 x 1-1/2" lg.

$

$

Not available

68

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

69

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

70

Simplicity 157020

GUIDE ASSEMBLY, Shift Rod

$

$

Not available

71

Simplicity 2816622SM

NUT, Hex, Full, 1/4"-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

72

Simplicity 2816964SM

LOCKWASHER, 1/4"
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

73

Simplicity 2821959

CAPSCREW, Hex, 1/4"-20 x 5/8" lg.

$

$

Not available

74

Simplicity 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

75

Simplicity 917452

SCREW, Rd. Hd. #10-32 x 1/2" lg.

$

$

Not available
