1690086 - Simplicity Sovereign Garden Tractor, 16hp 7010-7016-7016H FRONT WHEELS, AXLE AND STEERING Parts Diagram

Sovereign Garden Tractor, 16hp

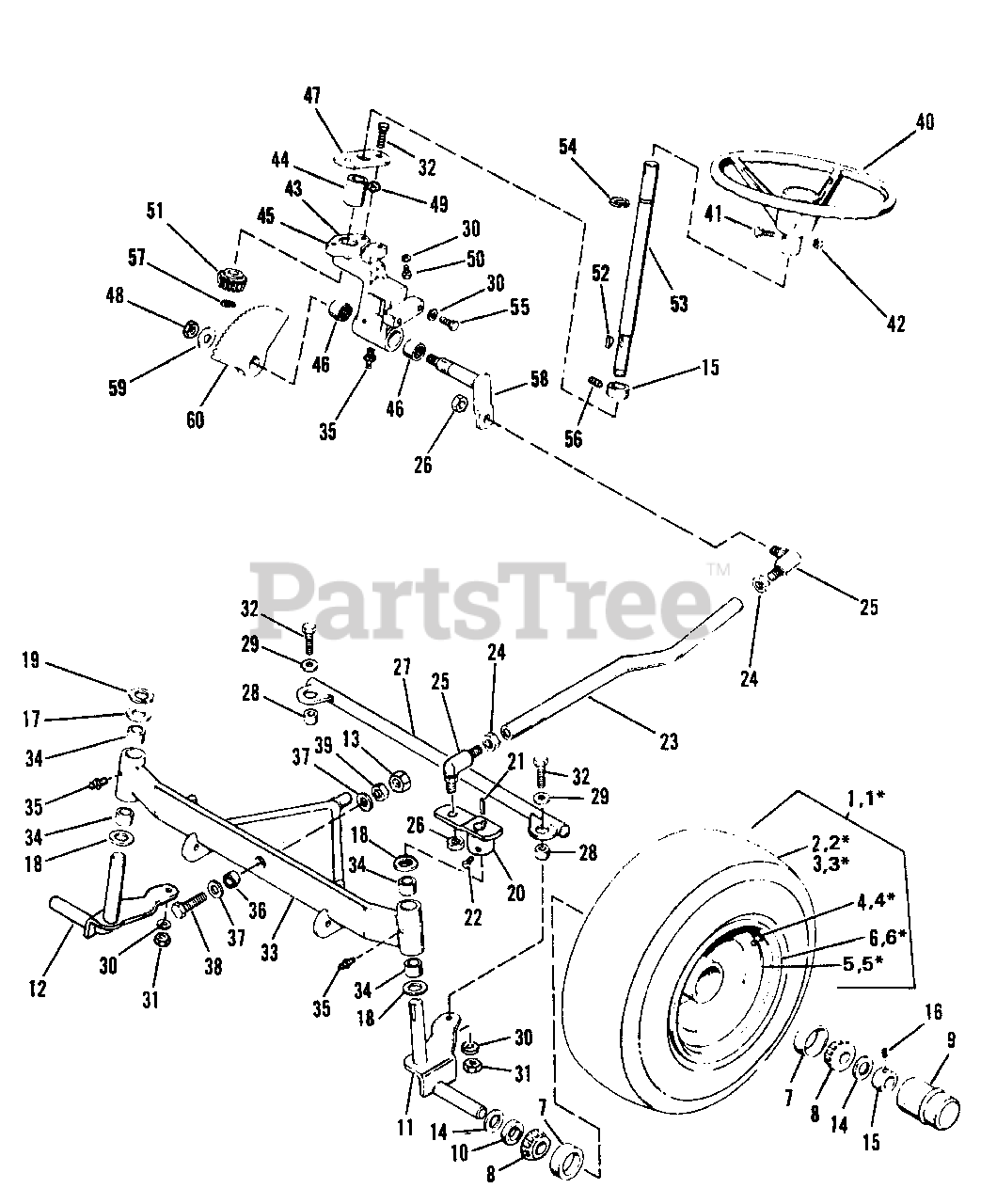

7010-7016-7016H FRONT WHEELS, AXLE AND STEERING Parts Diagram

  • Title

1

Simplicity 176376

WHEEL & TIRE ASSEMBLY

$

$

Not available

1

Simplicity 171483

WHEEL & TIRE ASSEMBLY

Note: For 10 HP Three-Speed

$

$

Not available

2

Simplicity 2157490

TIRE

$

$

Not available

2

Simplicity 2153037

TIRE

Note: For 10 HP Three-Speed

$

$

Not available

3

Simplicity 2164247SM

TUBE

$40.99

$

Usually ships in 2-12 days

0

3

Simplicity 2153038SM

TUBE

Note: For 10 HP Three-Speed

$35.99

$

Usually ships in 2-12 days

0

4

Simplicity 2156305

STEM, Valve & Cap

$

$

Not available

4

Simplicity 2171270

STEM, Valve & Cap

Note: For 10 HP Three-Speed

$

$

Not available

5

Simplicity 2171377

WHEEL, Sub Assy.

$

$

Not available

5

Simplicity 171484

WHEEL, Sub Assy.

Note: For 10 HP Three-Speed

$

$

Not available

6

Simplicity 2171378

WHEEL, Front

$

$

Not available

6

Simplicity 171485

WHEEL, Front

Note: For 10 HP Three-Speed

$

$

Not available

7

Simplicity 2154393SM

CUP, Bearing

$22.99

$

In Stock, only 3 left!

0

8

Simplicity 2154486SM

CONE, Bearing

$36.99

$

In Stock, Qty 6

0

9

Simplicity 2154487SM

CAP, Hub
(Superseded to 2154487YP)

$9.99

$

In Stock, Qty 20+

0

10

Simplicity 2170168SM

SEAL

$38.99

$

Usually ships in 2-12 days

0

11

Simplicity 2171774ASM

SPINDLE ASSEMBLY, L.H.

$353.99

$

Usually ships in 2-12 days

0

12

Simplicity 2157494SM

SPINDLE ASSEMBLY, R.H.
(Superseded to 2157494ASM)

$148.99

$

Usually ships in 2-12 days

0

13

Simplicity 2822133

NUT, Hex Jam, 1/2-13

$

$

Not available

14

Simplicity 2171375SM

SPACER

$15.99

$

In Stock, Qty 12

0

15

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$

$

Not available

16

Simplicity 2828734

SETSCREW, 5/16-18 x 5/16" lg.

$

$

Not available

17

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 7

0

18

Simplicity 2108181

WASHER

$

$

Not available

19

Simplicity 2157286

RlNG, Retaining

$

$

Not available

20

Simplicity 2170998SM

ARM ASSEMBLY, Steering L.H.

$

$

Not available

21

Simplicity 2157427SM

KEY

$5.49

$

In Stock, only 1 left!

0

22

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2" lg.
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

23

Simplicity 171830

ROD, Tie

$

$

Not available

24

Simplicity 2819262

NUT, Jam, 1/2-20

$

$

Not available

25

Simplicity 2164272SM

JOINT, Ball

$71.99

$

In Stock, Qty 8

0

26

Simplicity 2830633

LOCKNUT, Hex, Jam, 1/2"-20

$

$

Not available

27

Simplicity 2157499SM

LINK ASSY., Drag
(Superseded to 2157499ASM)

$122.99

$

Usually ships in 2-12 days

0

28

Simplicity 174177

SPACER

$

$

Not available

29

Simplicity 1924940SM

WASHER, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1916965SM

LOCK WASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

31

Simplicity 2816950SM

NUT, full hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

32

Simplicity 2817400

CAPSCREW, Hex, 3/8-16 x 1-1/4" lg.

$

$

Not available

33

Simplicity 1650553SM

AXLE ASSY., Front

$463.99

$

Usually ships in 2-12 days

0

34

Simplicity 2154289SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

35

Simplicity 2814687

FITTING, Grease

$

$

Not available

36

Simplicity 2157618SM

SPACER

$23.99

$

Usually ships in 2-12 days

0

37

Simplicity 2818431

WASHER, Plain, 1/2"

$

$

Not available

38

Simplicity 2827469

CAPSCREW, Hex

$

$

Not available

39

Simplicity 2830648

NUT, Toplo, 1/2"-13

$

$

Not available

40

Simplicity 1606342SM

WHEEL, Steering

$

$

Not available

41

Simplicity 2821977

CAPSCREW, Hex, 5/16-18 x 1-1/4" lg.

$

$

Not available

42

Simplicity 2829001

LOCKNUT, Flange, 5/16-18

$

$

Not available

43

Simplicity 1668625SM

CASTING, Steering

$239.99

$

Usually ships in 2-12 days

0

44

Simplicity 2170992SM

BUSHING

$25.99

$

Usually ships in 2-12 days

0

45

Simplicity 2171832

CASTING, w/ Bearings

$

$

Not available

46

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, Qty 8

0

47

Simplicity 2171000SM

PLATE, Steering

$49.99

$

Usually ships in 2-12 days

0

48

Simplicity 2824058

LOCKNUT, Full Hex, 7/16-14

$

$

Not available

49

Simplicity 2828731

LOCKNUT, Hex Jam, 3/8-16

$

$

Not available

50

Simplicity 2821965

CAPSCREW, Hex, 3/8-16, x 3/4" lg.

$

$

Not available

51

Simplicity 2170988SM

PINION

$

$

Not available

52

Simplicity 2810224SM

KEY

$3.99

$

Usually ships in 2-12 days

0

53

Simplicity 171020

SHAFT, Steering

$

$

Not available

54

Simplicity 2154264SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

55

Simplicity 2819357

CAPSCREW, Hex, 3/8"-16 x 7/8" lg.

$

$

Not available

56

Simplicity 2828691

SETSCREW, 5/16-18

$

$

Not available

57

Simplicity 2827793SM

RING,"E"
(Superseded to 703977)

$4.99

$

In Stock, Qty 17

0

58

Simplicity 170999

ARM ASSY., Steering

$

$

Not available

59

Simplicity 2818430

WASHER, Plain 7/16"

$

$

Not available

60

Simplicity 2170987SM

GEAR

$62.99

$

Usually ships in 2-12 days

0
