1690081 - Simplicity 30" Mower Deck 30" Mower Controls & Misc. Group Parts Diagram

30" Mower Deck

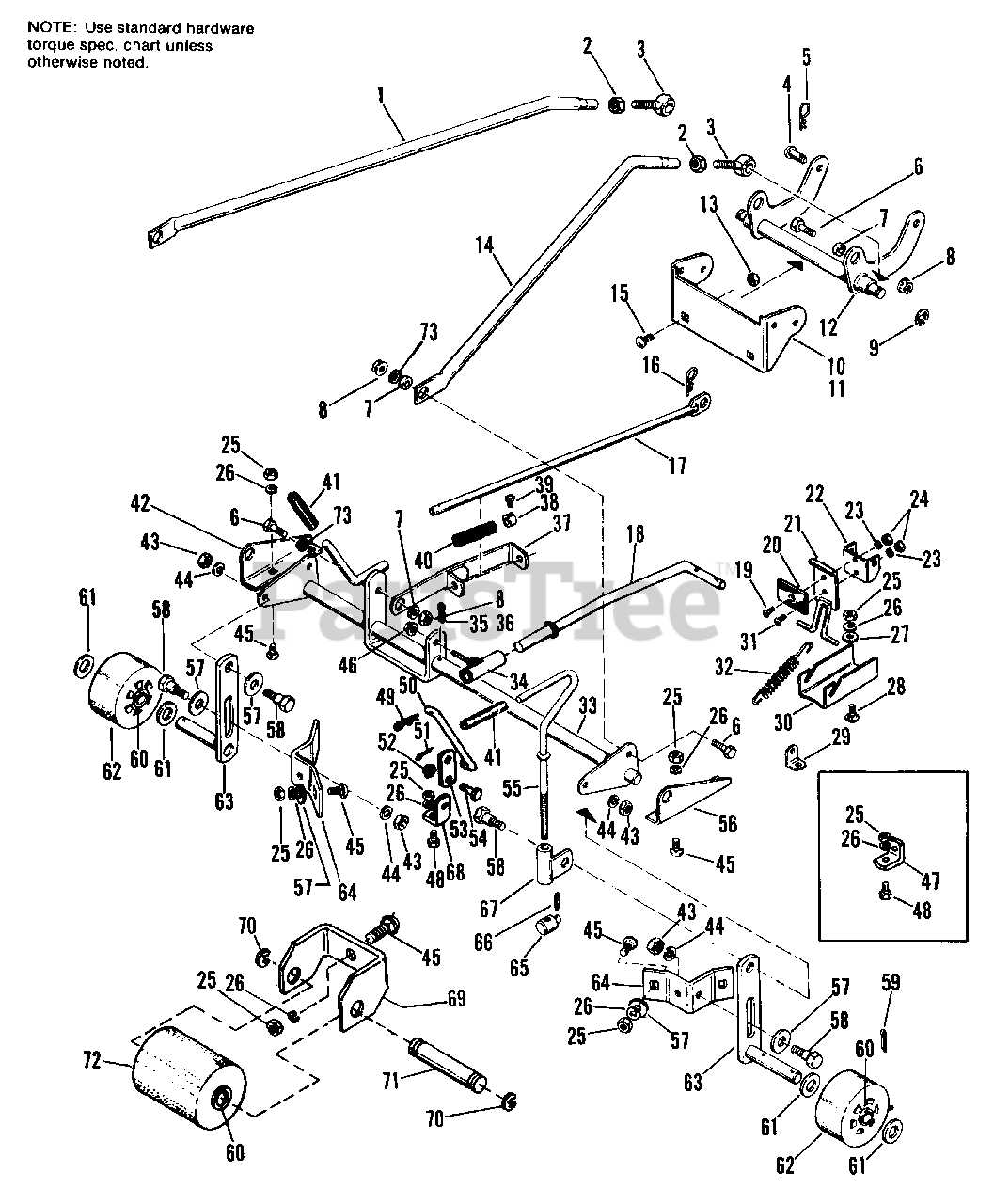

30" Mower Controls & Misc. Group Parts Diagram

  • Title

1

Simplicity 175942

ARM, Adjusting, L.H.

$

$

Not available

2

Simplicity 2819262

LOCKNUT, Jam, 1/2-20

$

$

Not available

3

Simplicity 2157215SM

EYEBOLT

$

$

Not available

4

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 14

0

5

Simplicity 2106788

CLIP, Spring

$

$

Not available

6

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

7

Simplicity 2153081

SPACER

$

$

Not available

8

Simplicity 2830645

NUT, Hex, Flange, 3/8-16

$

$

Not available

9

Simplicity 2158399SM

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 9

0

10

Simplicity 176788

BRACKET, Mower, Front

Note: Used on Mfg. No. 990998 & 991000

$

$

Not available

11

Simplicity 1608940

BRACKET, Mower, Front

Note: Used on Mfg. No. 1690012.

$

$

Not available

12

Simplicity 175935

ARM ASSY., Rocker

$

$

Not available

13

Simplicity 2827557

NUT, Hex, Flange, 5/16-18

$

$

Not available

14

Simplicity 176736

ARM, Adjusting, R.H.

$

$

Not available

15

Simplicity 2830591

SCREW, Hex, Whizlock, 5/16-18 x 3/4

$

$

Not available

16

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 176874

ROD ASSY., Clutch

$

$

Not available

18

Simplicity 178547

ROD, Brake

$

$

Not available

19

Simplicity 2826267SM

SCREW, Flat Hd., Mach., #10-24 x 1/2

$2.99

$

Usually ships in 2-12 days

0

20

Simplicity 1610590SM

SHEAVE, Brake

$48.99

$

Usually ships in 2-12 days

0

21

Simplicity 176783

SUPPORT ASSY., Brake

$

$

Not available

22

Simplicity 176785

ANCHOR, Rod, Brake

$

$

Not available

23

Simplicity 2817365

LOCKWASHER, #10

$

$

Not available

24

Simplicity 2816621

NUT, Hex, Full, #10-24

$

$

Not available

25

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

28

Simplicity 2821158

BOLT, Carriage, 5/16-18 x 1

$

$

Not available

29

Simplicity 1602446

ANCHOR, Spring

$

$

Not available

30

Simplicity 1607989

BRACKET, Pivot

$

$

Not available

31

Simplicity 916080

SCREW, Rd. Hd., Mach., #10-24 x 1/2

$

$

Not available

32

Simplicity 1602894

SPRING

$

$

Not available

33

Simplicity 175943

ARM ASSY., Control

$

$

Not available

34

Simplicity 178548

GUIDE ASSY., Rod

$

$

Not available

35

Simplicity 2818111

PIN, Roll, 1/8 x 1

Note: Used on Mfg. No. 1690012.

$

$

Not available

36

Simplicity 2818453

PIN, Cotter, 1/8 x 1-1/4

Note: Used on Mfg. No. 990998 & 991000

$

$

Not available

37

Simplicity 176743

GUIDE ASSY., Rod

$

$

Not available

38

Simplicity 105201

COLLAR, Set

$

$

Not available

39

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

40

Simplicity 162065

SPRING

$

$

Not available

41

Simplicity 176985

GRIP, Handle

$

$

Not available

42

Simplicity 176769

BRACKET, Pivot, L.H.

$

$

Not available

43

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

44

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

45

Simplicity 930685

BOLT, Carriage, 5/16-18 x 5/8 (Qty. 8 on 990998 & 991000)

$

$

Not available

46

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

47

Simplicity 122052

BRACKET

Note: Used on Mfg. No. 990998 & 991000.

$1.49

$

Usually ships in 2-12 days

0

48

Simplicity 2825205

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

49

Simplicity 2106787

CLIP, Hair Pin

Note: Used on Mfg. No. 1690012.

$

$

Not available

50

Simplicity 1650645

ROD

Note: Used on Mfg. No. 1690012.

$

$

Not available

51

Simplicity 2822000

PIN, Cotter, 3/32 x 5/8

Note: Used on Mfg. No. 1690012.

$

$

Not available

52

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

Note: Used on Mfg. No. 1690012.

$

$

Not available

53

Simplicity 108199

LINK

Note: Used on Mfg. No. 1690012.

$

$

Not available

54

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

Note: Used on Mfg. No. 1690012.

$

$

Not available

55

Simplicity 176775

HANDLE

$

$

Not available

56

Simplicity 176770

BRACKET, Pivot, R.H.

$

$

Not available

57

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

58

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

59

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

60

Simplicity 2108419

BUSHING

$

$

Not available

61

Simplicity 2819387

WASHER, Plain, 5/8

$

$

Not available

62

Simplicity 1668487SM

ROLLER ASSY.

$9.99

$

Usually ships in 2-12 days

0

63

Simplicity 1607603

SUPPORT ASSY., Roller

$

$

Not available

64

Simplicity 1602211

SUPPORT, Bracket, Roller

$

$

Not available

65

Simplicity 108172

PIVOT

$

$

Not available

66

Simplicity 2818448

PIN, Cotter, 3/32 x 1

$

$

Not available

67

Simplicity 176777

GUIDE ASSY., Rod

$

$

Not available

68

Simplicity 1650140

BRACKET

$

$

Not available

69

Simplicity 1603204

BRACKET, Center Roller

$

$

Not available

70

Simplicity 2827793SM

RING, Snap
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

71

Simplicity 1603205SM

SHAFT

$29.99

$

Usually ships in 2-12 days

0

72

Simplicity 1668513SM

ROLLER ASSY.

$10.99

$

In Stock, Qty 20+

0

73

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

Note: Used on Mfg. No. 1690012.

$3.99

$

In Stock, Qty 20+

0
