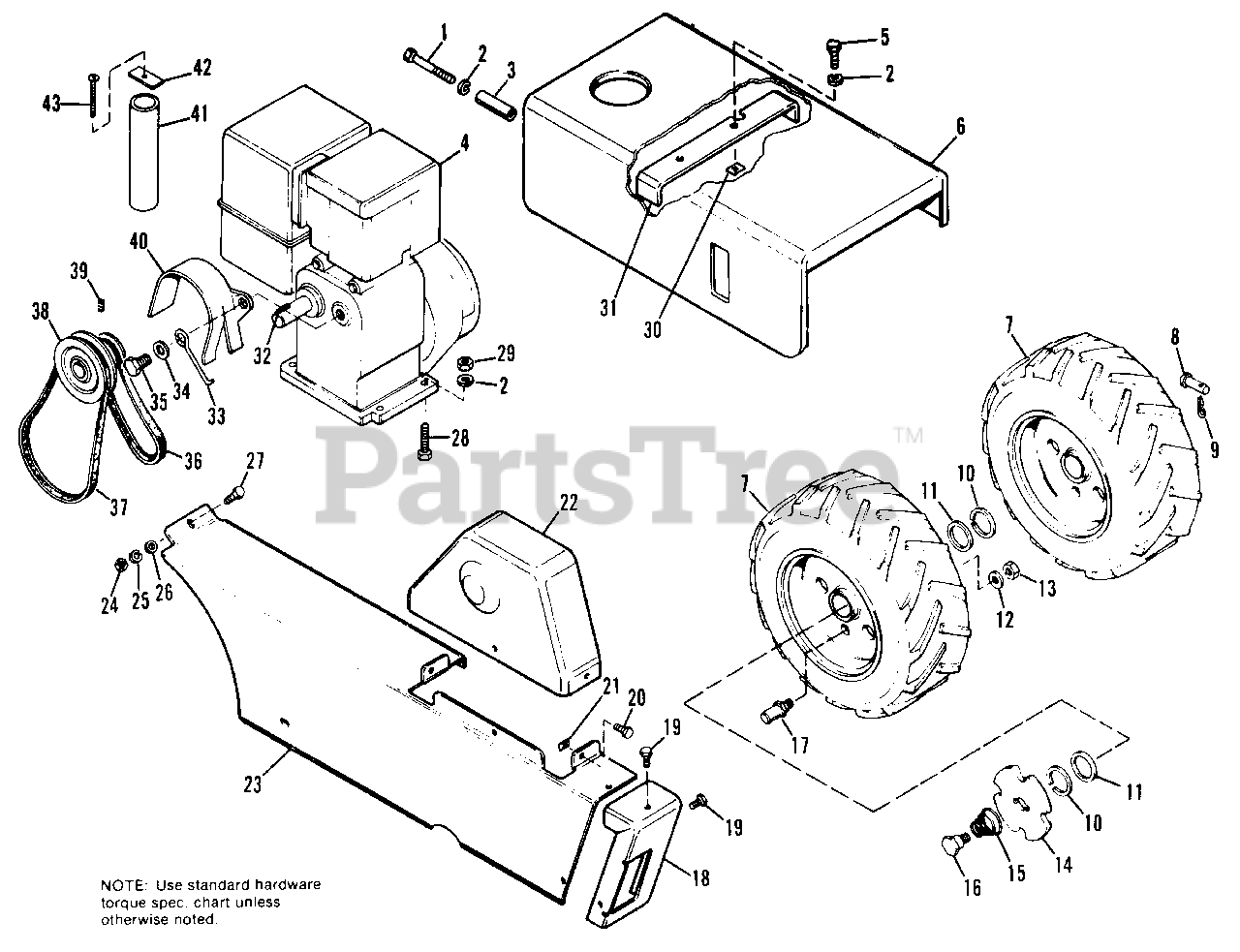

1690071 - Simplicity Tracker 24" Snow Thrower, 5hp Engine & Drive Group Parts Diagram

Tracker 24" Snow Thrower, 5hp

Engine & Drive Group Parts Diagram

  • Title

1

Simplicity 2826106

CAPSCREW, Hex Hd., 5/16-18 x 3-1/4

$

$

Not available

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 171744

SPACER

$

$

Not available

4

ENGINE, 5 HP, Briggs & Stratton, Model 130202, Type 0319-01

$

$

Not available

5

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

6

Simplicity 171267

HOOD ASSY.

$

$

Not available

7

Simplicity 161151

WHEEL & TIRE ASSY.

$

$

Not available

8

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

9

Simplicity 1918196SM

PIN, Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 161260

RING, Retaining

$

$

Not available

11

Simplicity 2118252SM

WASHER, Special

$4.49

$

In Stock, Qty 10

0

12

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

13

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Simplicity 1612-59

PLATE

$

$

Not available

15

Simplicity 2161176SM

SPRING

$3.99

$

In Stock, only 1 left!

0

16

Simplicity 2161166

BOLT, Shoulder

$

$

Not available

17

Simplicity 161167

STUD

$

$

Not available

18

Simplicity 161258

SUPPORT, Belt Cover

$

$

Not available

19

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

20

Simplicity 2819339

SCREW, Self Tapping, 1/4-20 x 5/8

$

$

Not available

21

Simplicity 9287-03

NUT, Speed

$

$

Not available

22

Simplicity 170756

COVER, Top Belt

$

$

Not available

23

Simplicity 170755

COVER, Lower Belt

$

$

Not available

24

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

26

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

27

Simplicity 2821958

CAPSCREW, Hex Hd., 1/4-20 x 1/2

$

$

Not available

28

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 1917372SM

NUT, Hex Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 2828701

NUT, Retainer, 5/16-18

$

$

Not available

31

Simplicity 106533

BRACKET

$

$

Not available

32

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

33

Simplicity 161271

ROD, Guide

$

$

Not available

34

Simplicity 2809589

LOCKWASHER, Int., 1/2

$

$

Not available

35

Simplicity 2821370

CAPSCREW, Hex Hd., 1/2-20 x 1

$

$

Not available

36

Simplicity 2118488

V-BELT (Transmission Drive)

$

$

Not available

37

Simplicity 2161098SM

V-BELT (Rotor Drive)

$

$

Not available

38

Simplicity 106939

PULLEY, Engine

$

$

Not available

39

Simplicity 2830544

SETSCREW, 5/16-18 x 3/8

$

$

Not available

40

Simplicity 171063

STOP, Belt

$

$

Not available

41

Simplicity 171688

TUBE

$

$

Not available

42

Simplicity 171684

CLAMP

$

$

Not available

43

Simplicity 930529

SCREW, Machine, #10-32 x 3

$

$

Not available
