1690043 - Simplicity Power Lift Kit Power Lift Parts Diagram

Power Lift Kit

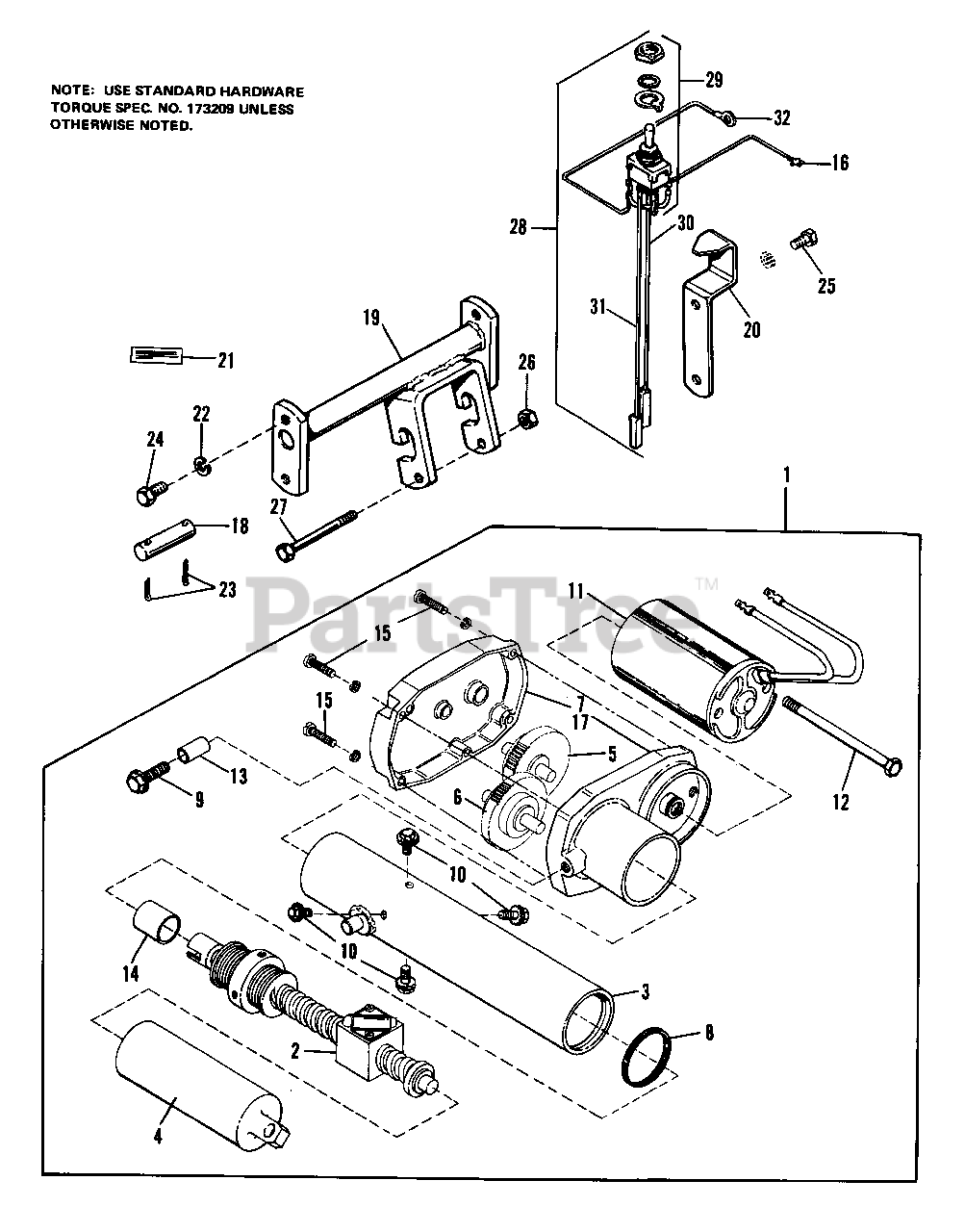

Power Lift Parts Diagram

  • Title

1

Simplicity 2170454

LIFT ASSY, Power

$

$

Not available

2

Simplicity 173697

BEARING ASSY, Ball, Screw & Brk.

$

$

Not available

3

Simplicity 173698

TUBE ASSY, Outer

$

$

Not available

4

Simplicity 173699

TUBE ASSY, Inner

$

$

Not available

5

Simplicity 2173700

GEAR ASSY

$

$

Not available

6

Simplicity 2173701

GEAR ASSY

$

$

Not available

7

Simplicity 173702

HOUSING

$

$

Not available

8

Simplicity 1605772

SEAL

$

$

Not available

9

Simplicity 1605773

SCREW, Thd. Forming

$

$

Not available

10

Simplicity 1605775

SCREW, Thd. Cutting

$

$

Not available

11

Simplicity 1663966

MOTOR

$

$

Not available

12

Simplicity 1605777

SCREW

$

$

Not available

13

Simplicity 1605778SM

PIN, Drive

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 1605779

SLEEVE, Coupling

$

$

Not available

15

Simplicity 1605780

SCREW, Filister Hd.

$

$

Not available

16

Simplicity 1651165

WIRE, Sw. to Ignition

$

$

Not available

17

Simplicity 1651819

HOUSING

$

$

Not available

18

Simplicity 171025

PIN

$

$

Not available

19

Simplicity 172145

SUPPORT ASSY, Pump

$

$

Not available

20

Simplicity 172430

STOP, Pointer

$

$

Not available

21

Simplicity 175527

DECAL, Lift Control

$

$

Not available

22

Simplicity 916365

LOCKWASHER, Spring, 3/8

$

$

Not available

23

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

24

Simplicity 2822586SM

CAPSCREW, Hex Hd., 3/8-16 x 5/8

$2.99

$

In Stock, Qty 5

0

25

Simplicity 925694

CAPSCREW, Hex Hd., 3/8-16 x 1/2

$

$

Not available

26

Simplicity 2823362

NUT, Hex Lock, 5/16-18

$

$

Not available

27

Simplicity 2826106

CAPSCREW, Hex Hd., 5/16-18 x 3-1/4

$

$

Not available

28

Simplicity 1651166

SWITCH & HARNESS

$

$

Not available

29

Simplicity 2171683SM

SWITCH, Elec.

$106.99

$

Usually ships in 2-12 days

0

30

Simplicity 171950

WIRE, Sw. to Lift

$

$

Not available

31

Simplicity 171951

WIRE, Sw. to Lift

$

$

Not available

32

Simplicity 2171969

WIRE, Sw. to Ground

$

$

Not available
