1690041 - Simplicity Front Light Kit Front Light Kit (5008, 5010) Parts Diagram

Front Light Kit

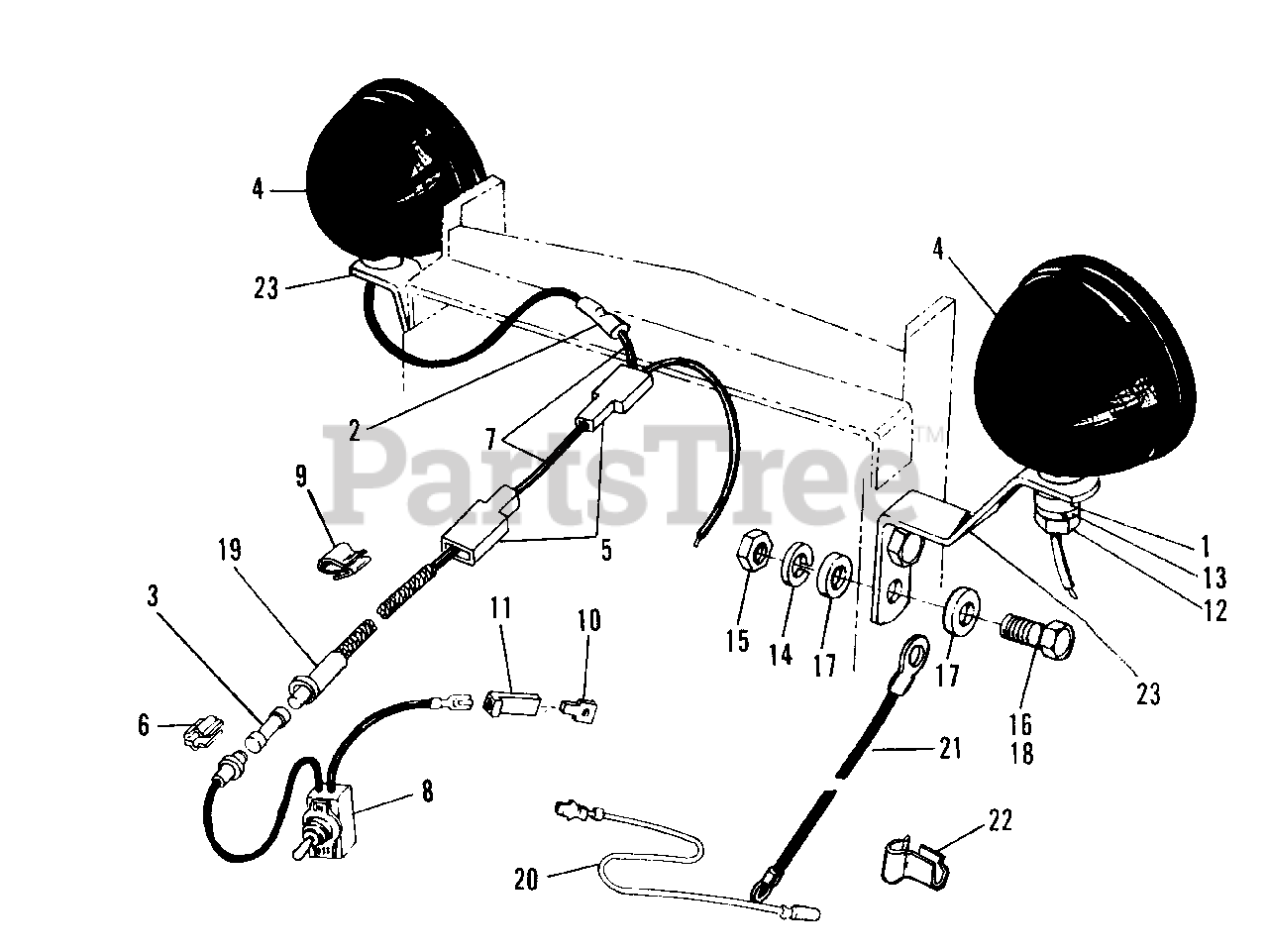

Front Light Kit (5008, 5010) Parts Diagram

  • Title

1

Simplicity 122053

SPACER

$

$

Not available

2

Simplicity 122157

CONNECTOR

$

$

Not available

3

Simplicity 122172

FUSE, 20 AMP

$

$

Not available

4

Simplicity 122175

LAMP ASSEMBLY

$

$

Not available

5

Simplicity 122182

CONNECTOR, Insulated

$

$

Not available

6

Simplicity 122183

CLIP, Fuse

$

$

Not available

7

Simplicity 122185

WIRE, Extension

$

$

Not available

8

Simplicity 122211

SWITCH, Toggle

$

$

Not available

9

Simplicity 165074

CLIP, Speed

$

$

Not available

10

Simplicity 170202

TERMINAL

$

$

Not available

11

Simplicity 172100

CONNECTOR, Insulated

$

$

Not available

12

Simplicity 2816951

NUT, Hex, full, 1/2-13

$

$

Not available

13

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1917372SM

NUT, full Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 2817397

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

17

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

18

Simplicity 2819933

CAPSCREW, Hex, 5/16-18 x 1-1/2

$

$

Not available

19

Simplicity 1651549

WIRE

$

$

Not available

20

Simplicity 1651550

WIRE, Lead

$

$

Not available

21

Simplicity 1651551

WIRE

$

$

Not available

22

Simplicity 1651556

CLIP, Wire

$

$

Not available

23

Simplicity 1652510

BRACKET, Head light

$

$

Not available
