1690033 - Simplicity 36" Snow Thrower Attachment 36" & 42" Snowthrower-P.T.O. Group Parts Diagram

36" Snow Thrower Attachment

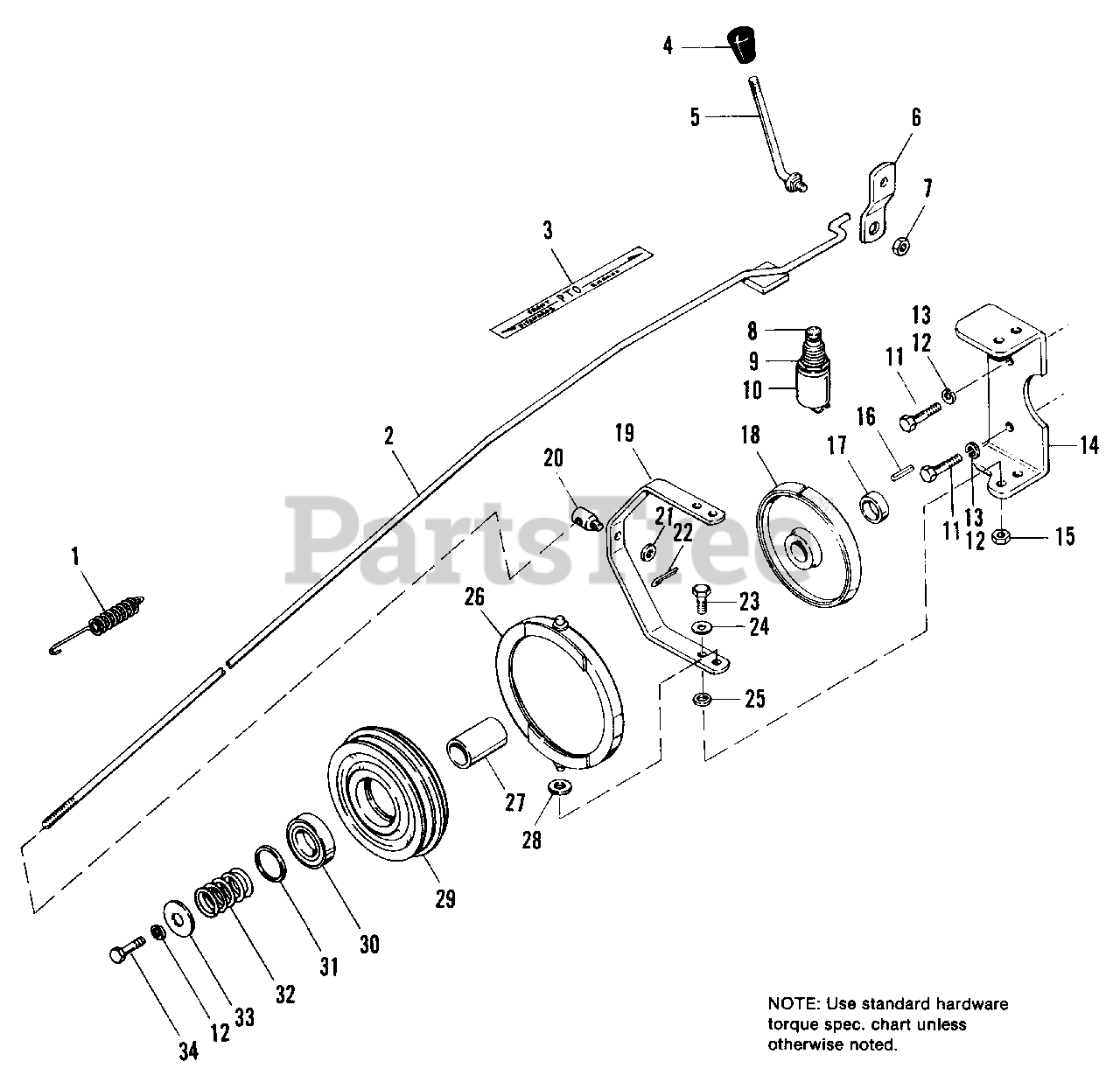

36" & 42" Snowthrower-P.T.O. Group Parts Diagram

  • Title

1

Simplicity 2121037SM

SPRING

$

$

Not available

2

Simplicity 1663655

ROD ASSY., Clutch

$

$

Not available

3

Simplicity 172517

DECAL

$

$

Not available

4

Simplicity 2172038SM

KNOB
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 6

0

5

Simplicity 1686629SM

HANDLE, Clutch Control

$31.99

$

Usually ships in 2-12 days

0

6

Simplicity 171319

ARM, P.T.O.

$

$

Not available

7

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 178282

BOOT, Rubber

$

$

Not available

9

Simplicity 2122234SM

NUT, Special
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

10

Simplicity 2122233SM

SWITCH, Safety

$

$

Not available

11

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1 (Briggs engine only)
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 1921965SM

CAPSCREW, Hex, 3/8-16 x 3/4 (Kohler engine only)
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 1916965SM

LOCKWASHER, 3/8 (Qty. 1 used on Briggs only)
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

12

Simplicity 1918199SM

LOCKWASHER, 7/16 (Kohler engine only)
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1917356SM

LOCKWASHER, 5/16 (Briggs engine only)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1651027

BRACKET

$

$

Not available

15

Simplicity 1923362SM

LOCKNUT, Hex, 5/16
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

16

Simplicity 2171241SM

KEY, Hi-Pro

Note: For Kohler engine, see Front P.T.O. Kit, Mfg. 1690356

$5.99

$

Usually ships in 2-12 days

0

17

Simplicity 1651448

SPACER (Briggs engine only)

Note: For Kohler engine, see Front P.T.O. Kit, Mfg. 1690356

$

$

Not available

18

Simplicity 2171819SM

PLATE ASSY., Clutch (Briggs engine only)

Note: For Kohler engine, see Front P.T.O. Kit, Mfg. 1690356

$

$

Not available

19

Simplicity 1663501

FORK, Clutch

$

$

Not available

20

Simplicity 2172141SM

PIVOT

$40.99

$

Usually ships in 2-12 days

0

21

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 6

0

22

Simplicity 2822000

COTTER PIN, 3/32 x 5/8

$

$

Not available

23

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

24

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 2165034SM

SPACER

$9.49

$

Usually ships in 2-12 days

0

26

Simplicity 2171947SM

SUPPORT ASSY., Brake

$

$

Not available

27

Simplicity 171770

SLEEVE (Briggs engine only)

Note: For Kohler engine, see Front P.T.O. Kit, Mfg. 1690356

$

$

Not available

28

Simplicity 2156065

WASHER

$

$

Not available

29

Simplicity 171776

SHEAVE

$

$

Not available

30

Simplicity 2164048SM

BEARING, Ball

$46.99

$

Usually ships in 2-12 days

0

31

Simplicity 2108134

RING, Backing

$

$

Not available

32

Simplicity 2171772SM

SPRING

$

$

Not available

33

Simplicity 1651061

WASHER

$

$

Not available

34

Simplicity 923433

CAPSCREW, Hex, 3/8-14 x 1-3/4 (Briggs engine only)

$

$

Not available

34

Simplicity 2820594

CAPSCREW, Hex, 7/16-20 x 2 (Kohler engine only)

$

$

Not available
