1690032 - Simplicity 42" Snow Thrower Attachment 36" & 42" Snowthrower-Drive Group Parts Diagram

42" Snow Thrower Attachment

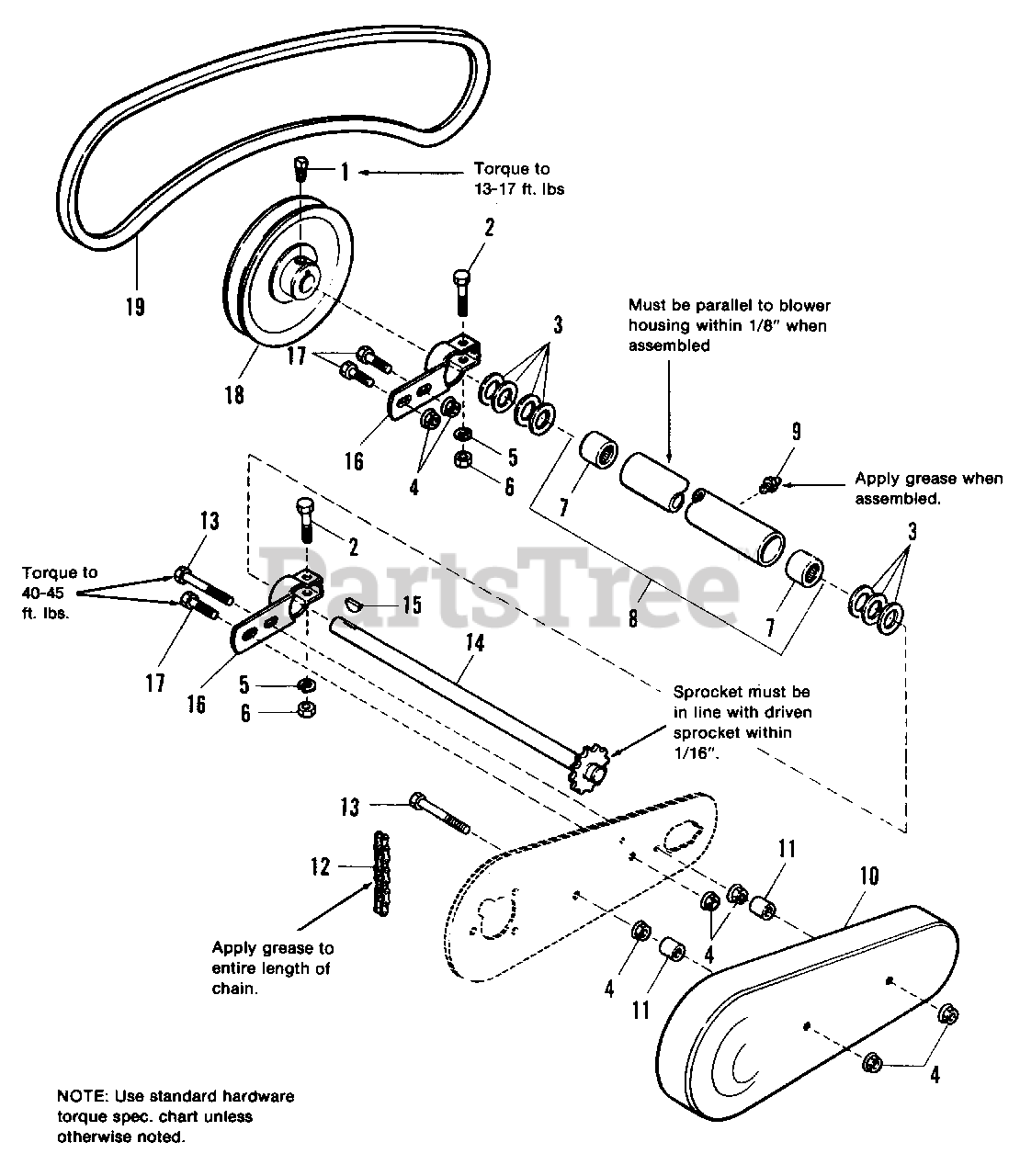

36" & 42" Snowthrower-Drive Group Parts Diagram

  • Title

1

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

2

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

3

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 7

0

4

Simplicity 1928352SM

LOCKNUT, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917372SM

NUT, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 154248

BEARING, Needle

$

$

Not available

8

Simplicity 1651084

BEARING & HOUSING ASSY. (36" only)

$

$

Not available

8

Simplicity 1650955SM

BEARING & HOUSING ASSY. (42" only)

$164.99

$

Usually ships in 2-12 days

0

9

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1676738ASM

GUARD, Chain

$67.99

$

Usually ships in 2-12 days

0

11

Simplicity 1669105SM

SPACER

$13.99

$

In Stock, only 2 left!

0

12

Simplicity 2171242SM

CHAIN

$66.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960244SM

SCREW, Whizlock, 3/8-16 x 2-3/4
(Superseded to 704037)

$5.99

$

Usually ships in 2-12 days

0

14

Simplicity 2106860SM

SHAFT ASSY. (36" only)

$70.99

$

Usually ships in 2-12 days

0

14

Simplicity 2106757SM

SHAFT ASSY. (42" only)

$240.99

$

Usually ships in 2-12 days

0

15

Simplicity 2805123SM

KEY, Woodruff, #9, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

16

Simplicity 1666145ASM

CLAMP, Housing

$38.99

$

Usually ships in 2-12 days

0

17

Simplicity 2828728

SCREW, Whizlock, 3/8-16 x 1

$

$

Not available

18

Simplicity 2171248SM

PULLEY

$103.99

$

Usually ships in 2-12 days

0

19

Simplicity 2174224SM

V-BELT

$49.99

$

In Stock, only 4 left!

0
