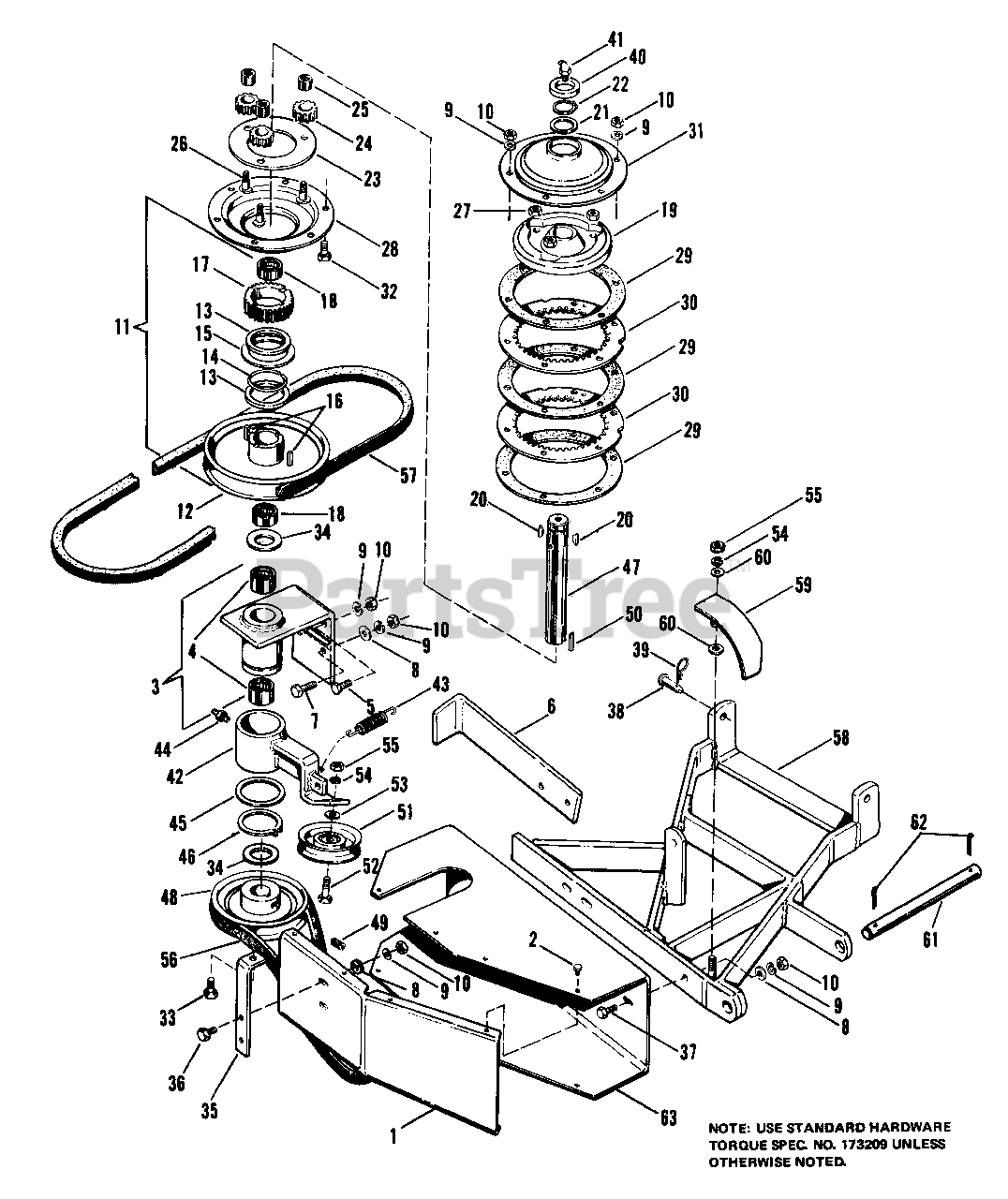

1690030 - Simplicity 46" Sickle Bar Frame & Drive Group Parts Diagram

46" Sickle Bar

Frame & Drive Group Parts Diagram

  • Title

1

Simplicity 174985

SHIELD

$

$

Not available

2

Simplicity 2819339

SCREW, Hex Hd., Thd. Form., No. 14 x 5/8

$

$

Not available

3

Simplicity 1655967

TUBE & SUPPORT ASSY, w/Bearing

$

$

Not available

4

Simplicity 173739

BEARING

$

$

Not available

5

Simplicity 2821333

CAPSCREW. Hex Hd., 5/16-18 x 1

$

$

Not available

6

Simplicity 175353

STOP

$

$

Not available

7

Simplicity 2807729

CAPSCREW, Hex, 5/16-18 x 1-1/4

$

$

Not available

8

Simplicity 2817377

WASHER Plain, 1/4

$

$

Not available

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 173556

PULLEY & HUB ASSY

$

$

Not available

12

Simplicity 173557

HUB & PULLEY

$

$

Not available

13

Simplicity 161037

WASHER

$

$

Not available

14

Simplicity 157326

RING

$

$

Not available

15

Simplicity 161075

SEAL

$

$

Not available

16

Simplicity 173570

KEY

$

$

Not available

17

Simplicity 173553

GEAR, Sun

$

$

Not available

18

Simplicity 173738

BEARING

$

$

Not available

19

Simplicity 173542

HUB, Spider

$

$

Not available

20

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

21

Simplicity 2173668SM

WASHER

$9.49

$

In Stock, only 2 left!

0

22

Simplicity 8051040

RING, Retaining

$

$

Not available

23

Simplicity 157333

RING, Bolt

$

$

Not available

24

Simplicity 157335

PINION

$

$

Not available

25

Simplicity 157337

BEARING, Needle

$

$

Not available

26

Simplicity 157336

PIN, Pinion

$

$

Not available

27

Simplicity 2828698

LOCKNUT, Hex, Jam, Centerlock, 5/16-18

$

$

Not available

28

Simplicity 161054

COVER, Lower Half

$

$

Not available

29

Simplicity 161129

GASKET

$

$

Not available

30

Simplicity 157382

GEAR, Ring

$

$

Not available

31

Simplicity 173550

COVER, Upper Half

$

$

Not available

32

Simplicity 2821332

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

33

Simplicity 2823325

CAPSCREW, Hex, 5/16-18 x 7/8

$

$

Not available

34

Simplicity 2168055SM

WASHER, Thrust

$

$

Not available

35

Simplicity 174821

BRACKET

$

$

Not available

36

Simplicity 2817397

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

37

Simplicity 2816431

CAPSCREW, Hex, 5/16-18 x 1

$

$

Not available

38

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

39

Simplicity 1918196SM

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

40

Simplicity 2118118SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

41

Simplicity 2727004

FITTING, Grease

$

$

Not available

42

Simplicity 174573

ARM ASSY

$

$

Not available

43

Simplicity 2159159SM

SPRING

$37.99

$

In Stock, only 1 left!

0

44

Simplicity 2814687

FITTING, Grease

$

$

Not available

45

Simplicity 174534

WASHER, Special

$

$

Not available

46

Simplicity 174527

RING, Retaining

$

$

Not available

47

Simplicity 174544

SHAFT

$

$

Not available

48

Simplicity 174542

PULLEY

$

$

Not available

49

Simplicity 930589

SETSCREW, 3/8-16 x 3/4

$

$

Not available

50

Simplicity 2154267SM

KEY

$

$

Not available

51

Simplicity 2106716

PULLEY, Idler

$

$

Not available

52

Simplicity 1920415SM

CAPSCREW, Hex, 3/8016 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

53

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

54

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

55

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

56

Simplicity 2174911SM

BELT, V, Pitman Drive

$28.99

$

Usually ships in 2-12 days

0

57

Simplicity 2173037

BELT, V, Mower Drive

$

$

Not available

58

Simplicity 174989

FRAME ASSY

$

$

Not available

59

Simplicity 101117

BELT ASSY, Guard

$

$

Not available

60

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

61

Simplicity 101015

SHAFT, Hinge

$

$

Not available

62

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

63

Simplicity 174984

SHROUD

$

$

Not available
