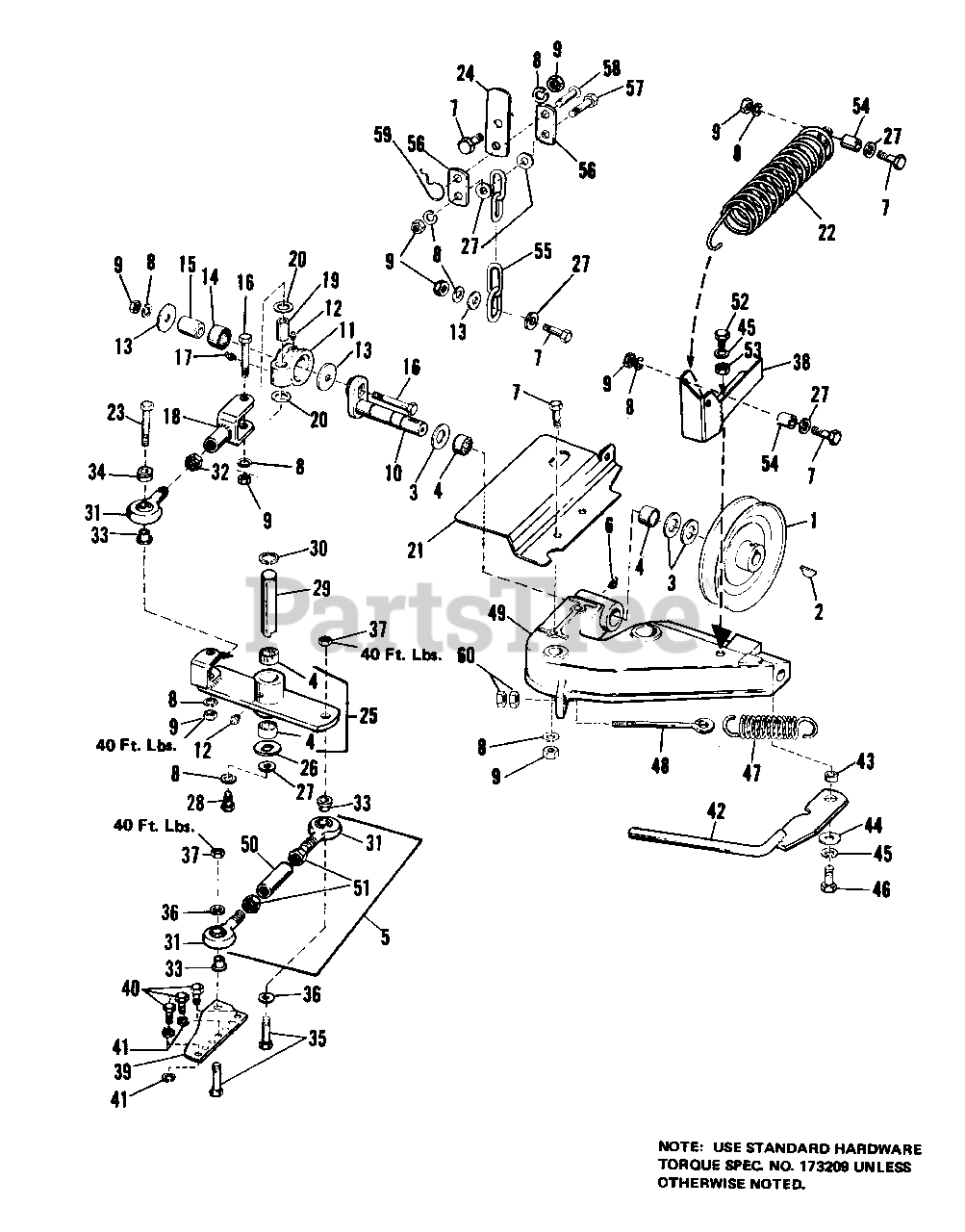

1690030 - Simplicity 46" Sickle Bar Drive Group Parts Diagram

46" Sickle Bar

Drive Group Parts Diagram

  • Title

1

Simplicity 106485

PULLEY, Drive

$

$

Not available

2

Simplicity 2830670SM

KEY, Hi-Pro

$2.49

$

Usually ships in 2-12 days

0

3

Simplicity 2101022

WASHER

$

$

Not available

4

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, Qty 8

0

5

Simplicity 1651979

ROD ASSY, Connecting

$

$

Not available

6

Simplicity 2815019SM

FITTING, Grease

$4.49

$

In Stock, only 2 left!

0

7

Simplicity 2807731

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

8

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

10

Simplicity 101006

SHAFT, Crank

$

$

Not available

11

Simplicity 8161196

HOUSING, Pitman Bearing

$

$

Not available

12

Simplicity 2814687

FITTING, Grease

$

$

Not available

13

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

14

Simplicity 2157678SM

BEARING, Needle

$34.99

$

Usually ships in 2-12 days

0

15

Simplicity 8161197

RACE, Inner Pitman

$

$

Not available

16

Simplicity 2822130

CAPSCREW, Hex Hd., 3/8-16 x 2-1/4

$

$

Not available

17

Simplicity 2818186SM

FITTING, Grease

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 101104

CLEVIS ASSY, Pitman

$

$

Not available

19

Snapper 1729273SM

BEARING, Pivot Block

$76.99

$

In Stock, only 1 left!

0

20

Simplicity 2101025SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 101103

SHEILD

$

$

Not available

22

Simplicity 2101126SM

SPRING

$46.99

$

In Stock, only 1 left!

0

23

Simplicity 2821972

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2

$

$

Not available

24

Simplicity 101083

CHAIN, Support

$

$

Not available

25

Simplicity 103155

ROCKER ARM ASSY, w/Bearings

$

$

Not available

26

Simplicity 101035

WASHER

$

$

Not available

27

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 2808127

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

29

Simplicity 101030

SHAFT, Rocker Arm

$

$

Not available

30

Simplicity 2154264SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

31

Simplicity 2101106SM

ROD, End

$86.99

$

Usually ships in 2-12 days

0

32

Simplicity 2819262

NUT, Hex, Full, 1/2-20

$

$

Not available

33

Simplicity 101107

SPACER

$

$

Not available

34

Simplicity 101108

SPACER

$

$

Not available

35

Simplicity 923433

CAPSCREW, Hex, 3/8-24 x 1-3/4

$

$

Not available

36

Simplicity 2157424SM

WASHER

$7.49

$

In Stock, Qty 5

0

37

Simplicity 2830628

LOCKNUT, Hex, Full, 3/8-24

$

$

Not available

38

Simplicity 101134

MOUNTING ASSY, Cable

$

$

Not available

39

Simplicity 101074

HEAD, Sickle

$

$

Not available

40

Simplicity 921980

CAPSCREW, Hex Hd., 5/16-24 x 1/2

$

$

Not available

41

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

42

Simplicity 101050

LATCH ASSY

$

$

Not available

43

Simplicity 101053

SPACER, Latch

$

$

Not available

44

Simplicity 2818430

WASHER, Plain

$

$

Not available

45

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

46

Simplicity 2816432

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4

$

$

Not available

47

Simplicity 101064

SPRING

$

$

Not available

48

Simplicity 101065

BOLT, Eye

$

$

Not available

49

Simplicity 101109

HINGE ASSY

$

$

Not available

50

Simplicity 1651978

PIVOT, Connecting Rod

$

$

Not available

51

Simplicity 2810092

NUT, Jam, Hex, 1/2-20

$

$

Not available

52

Simplicity 2816609

CAPSCREW, Hex Hd., 7/16-14 x 1-3/4

$

$

Not available

53

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

54

Simplicity 2153073

SPACER

$

$

Not available

55

Simplicity 175359

CHAIN, Lift

$

$

Not available

56

Simplicity 108199

LINK, Mower Lift

$

$

Not available

57

Simplicity 1920415SM

CAPSCREW, Hex Hd. 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

58

Simplicity 1708298SM

PIN

$

$

Not available

59

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

60

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
