1690025 - Simplicity Vacuum Collector Vacuum Collector (Engine Driven 5008, 5010) Parts Diagram

Vacuum Collector

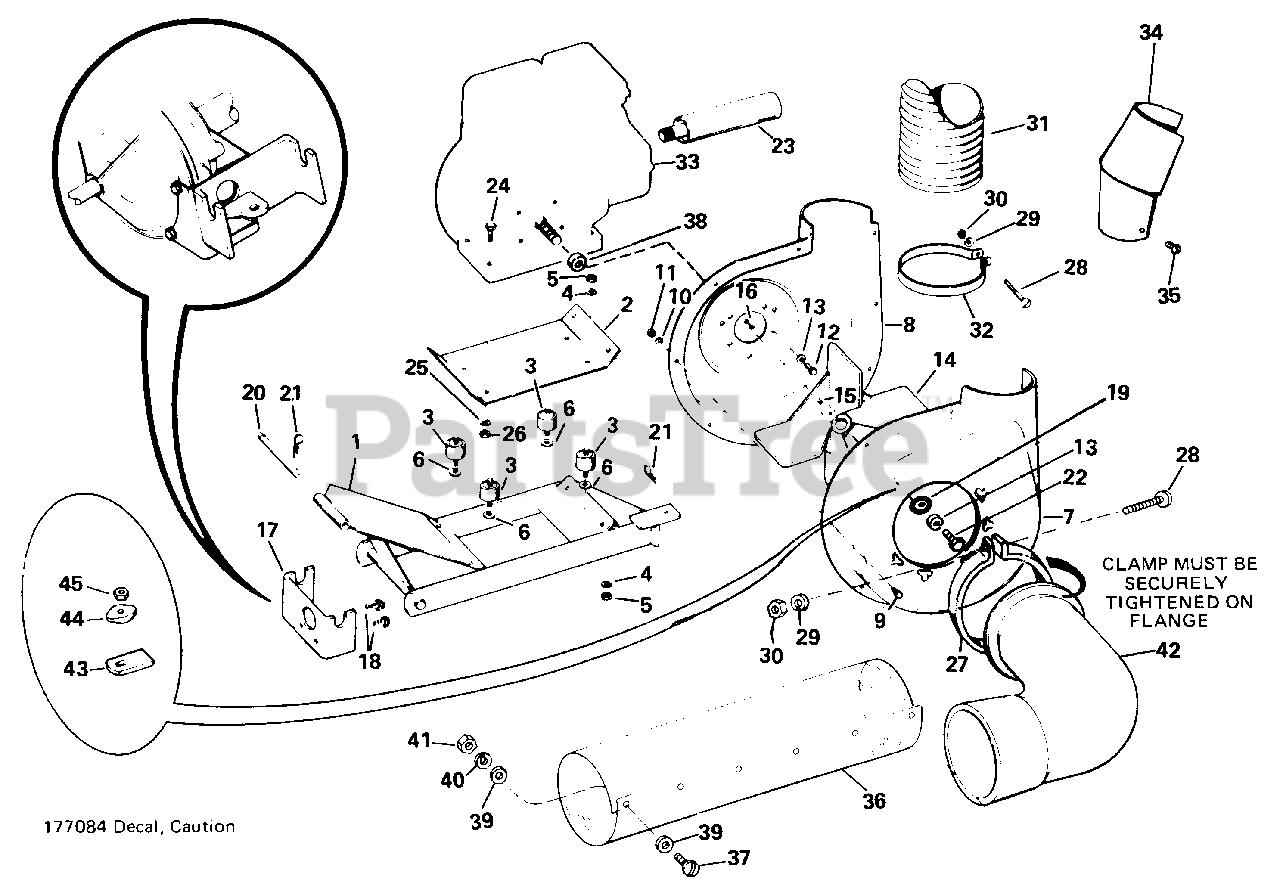

Vacuum Collector (Engine Driven 5008, 5010) Parts Diagram

  • Title

1

Simplicity 123088

FRAME ASSEMBLY

$

$

Not available

2

Simplicity 123095

PLATE, Engine

$

$

Not available

3

Simplicity 2157094SM

CUSHION, Connector

$

$

Not available

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, full hex, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

7

Simplicity 2177268

HOUSING ASSEMBLY

$

$

Not available

8

Simplicity 2123012

HOUSING, Half blower, R.H.

$

$

Not available

9

Simplicity 2808295

CAPSCREW, Hex, 1/4-20 x 1/2

$

$

Not available

10

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

11

Simplicity 2816622SM

NUT, full hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 922120

CAPSCREW, Hex, 5/16-24 x 5/8

$

$

Not available

13

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 2123015ASM

FAN ASSEMBLY

$353.99

$

Usually ships in 2-12 days

0

15

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

16

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

17

Simplicity 1230396

HITCH

$

$

Not available

18

Simplicity 2819360

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

19

Simplicity 2123144

WASHER

$

$

Not available

20

Simplicity 156268

PIN, Counterweight

$

$

Not available

21

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 2821515

CAPSCREW, Hex, 5/16-24 x 3/4

$

$

Not available

23

Simplicity 123104

MUFFLER

$

$

Not available

24

Simplicity 2819933

CAPSCREW, Hex, 5/16-18 x 1-1/2

$

$

Not available

25

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1917372SM

NUT, full hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 123065

CLAMP, Hose

$

$

Not available

28

Simplicity 928866

SCREW, Rd., Hd., Mach., 1/4-20 x 3

$

$

Not available

29

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

30

Simplicity 2816622SM

NUT, full hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 2174264

HOSE, Exhaust

$

$

Not available

32

Simplicity 2123067

CLAMP, Hose

$

$

Not available

33

Simplicity 123141

ENGINE

$

$

Not available

34

Simplicity 123107

DEFLECTOR

$

$

Not available

35

Simplicity 919804

SCREW, Self-tap., No. 10

$

$

Not available

36

Simplicity 1650437

TUBE, Intake

$

$

Not available

37

Simplicity 2830531

SCREW, Truss Head., Phillips No. 10

$

$

Not available

38

Simplicity 123140

SPACER

$

$

Not available

39

Simplicity 2816955

WASHER, 3/16

$

$

Not available

40

Simplicity 1909055SM

LOCKWASHER, No. 10

$3.49

$

Usually ships in 2-12 days

0

41

Simplicity 2817415

NUT, full Hex, No. 10-32

$

$

Not available

42

Simplicity 177333

ELBOW ASSEMBLY, 42" Adapter

$

$

Not available

43

Simplicity 2177271SM

CLAMP, Bar

$7.49

$

Usually ships in 2-12 days

0

44

Simplicity 2108848

NUT, Wing

$

$

Not available

45

Simplicity 2828698

LOCKNUT, Full Hex, 5/16-18

$

$

Not available
