1690024 - Simplicity Vacuum Collector Vacuum Collector Parts Diagram

Vacuum Collector

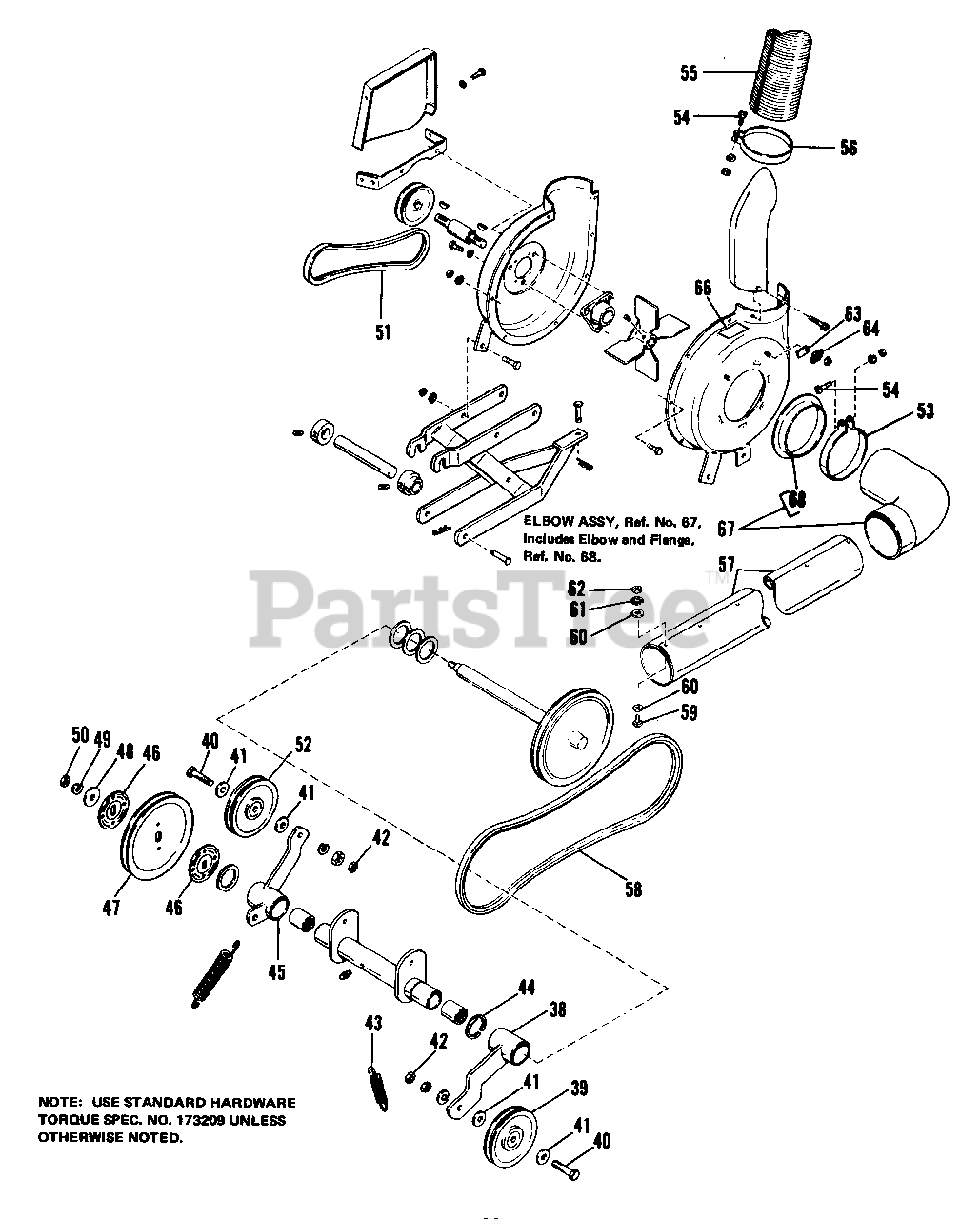

Vacuum Collector Parts Diagram

  • Title

38

Simplicity 164199

ARM ASSY, Tension

$

$

Not available

39

Simplicity 2108386SM

PULLEY, Idler

$

$

Not available

40

Simplicity 2823701

CAPSCREW, Hex Hd., 3/8-16 x 2

$

$

Not available

41

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 2823428

NUT, Hex, Full Lock, 3/8-16

$

$

Not available

43

Simplicity 2159159SM

SPRING

$37.99

$

In Stock, only 1 left!

0

44

Simplicity 2164204

RING, Retaining, 7/16

$

$

Not available

45

Simplicity 164195

ARM ASSY, Idler

$

$

Not available

46

Simplicity 2158196SM

WASHER, Special

$5.49

$

Usually ships in 2-12 days

0

47

Simplicity 158195

PULLEY

$

$

Not available

48

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

49

Simplicity 2818199

LOCKWASHER, Spring, 7/16

$

$

Not available

50

Simplicity 2818213

NUT, Hex, 7/16-14

$

$

Not available

51

Simplicity 2161098SM

BELT, V, Fan Drive

$

$

Not available

52

Simplicity 2106716

PULLEY, Idler

$

$

Not available

53

Simplicity 123065

CLAMP, Hose

$

$

Not available

54

Simplicity 928866

SCREW, Rd. Hd., 1/4-20 x 3

$

$

Not available

55

Simplicity 2174264

HOSE, Exhaust

$

$

Not available

56

Simplicity 2123067

CLAMP, Hose

$

$

Not available

57

Simplicity 1666525SM

TUBE, Intake

$75.99

$

Usually ships in 2-12 days

0

58

Simplicity 2108505

BELT, V, Vac. Coll. Drive
(Superseded to 1727773SM)

$34.99

$

In Stock, only 3 left!

0

59

Simplicity 2830531

SCREW, Philips Truss Hd.

$

$

Not available

60

Simplicity 2816955

WASHER, Plain, 3/16

$

$

Not available

61

Simplicity 1909055SM

LOCKWASHER, No. 10

$3.49

$

Usually ships in 2-12 days

0

62

Simplicity 2817415

NUT, Hex, No. 10-32

$

$

Not available

63

Simplicity 2177271SM

BAR, Clamp

$7.49

$

Usually ships in 2-12 days

0

64

Simplicity 2108848

NUT, Wing

$

$

Not available

65

Simplicity 2828698

NUT, Hex, Full Lock, Jam, 5/16-18 x 3/16

$

$

Not available

66

Simplicity 177084

DECAL, Caution

$

$

Not available

67

Simplicity 2177334SM

ELBOW ASSY

$

$

Not available

68

Simplicity 2123111SM

FLANGE, Hose

$

$

Not available
