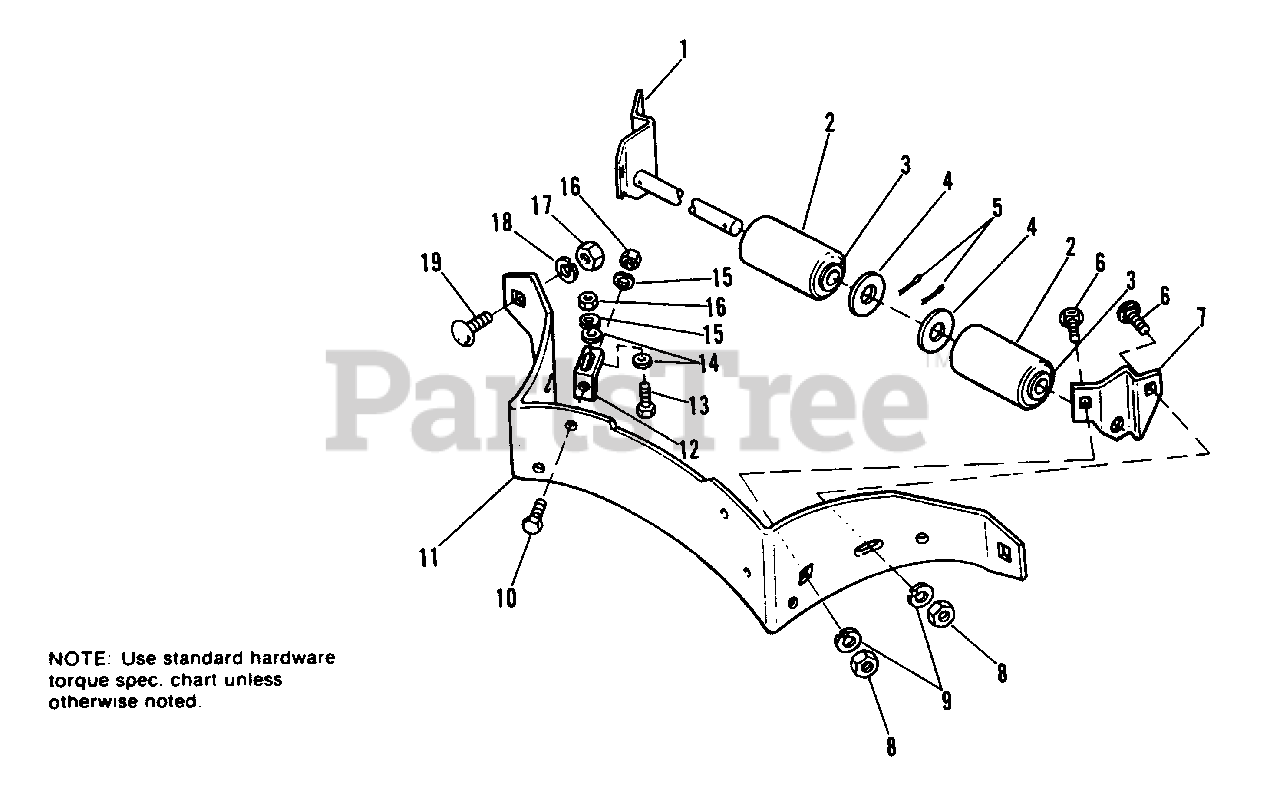

1690022 - Simplicity 42" Mower Deck Underside Group Parts Diagram

42" Mower Deck

Underside Group Parts Diagram

  • Title

1

Simplicity 2108426SM

BRACKET & SHAFT ASSY.
(Superseded to 2108426ASM)

$70.99

$

Usually ships in 2-12 days

0

2

Simplicity 1668513SM

ROLLER ASSY., W/Bushings

$10.99

$

In Stock, Qty 20+

0

3

Simplicity 2108419

BUSHINGS

$

$

Not available

4

Simplicity 2116001

WASHER

$

$

Not available

5

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

6

Simplicity 2823346

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

7

Simplicity 2108224ASM

BRACKET, Lower Roller., L.H.

$59.99

$

In Stock, only 2 left!

0

8

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 2825592SM

SCREW, Self Tapping, Hex Hd., 1/4-20 x 7/8

$2.99

$

Usually ships in 2-12 days

0

11

Simplicity 2108361

BAFFLE

$

$

Not available

12

Simplicity 2108186SM

CLIP, Baffle

$12.99

$

In Stock, only 1 left!

0

13

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

14

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

15

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

16

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

18

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

19

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available
