1690022 - Simplicity 42" Mower Deck 42" Mower Deck Group Parts Diagram

42" Mower Deck

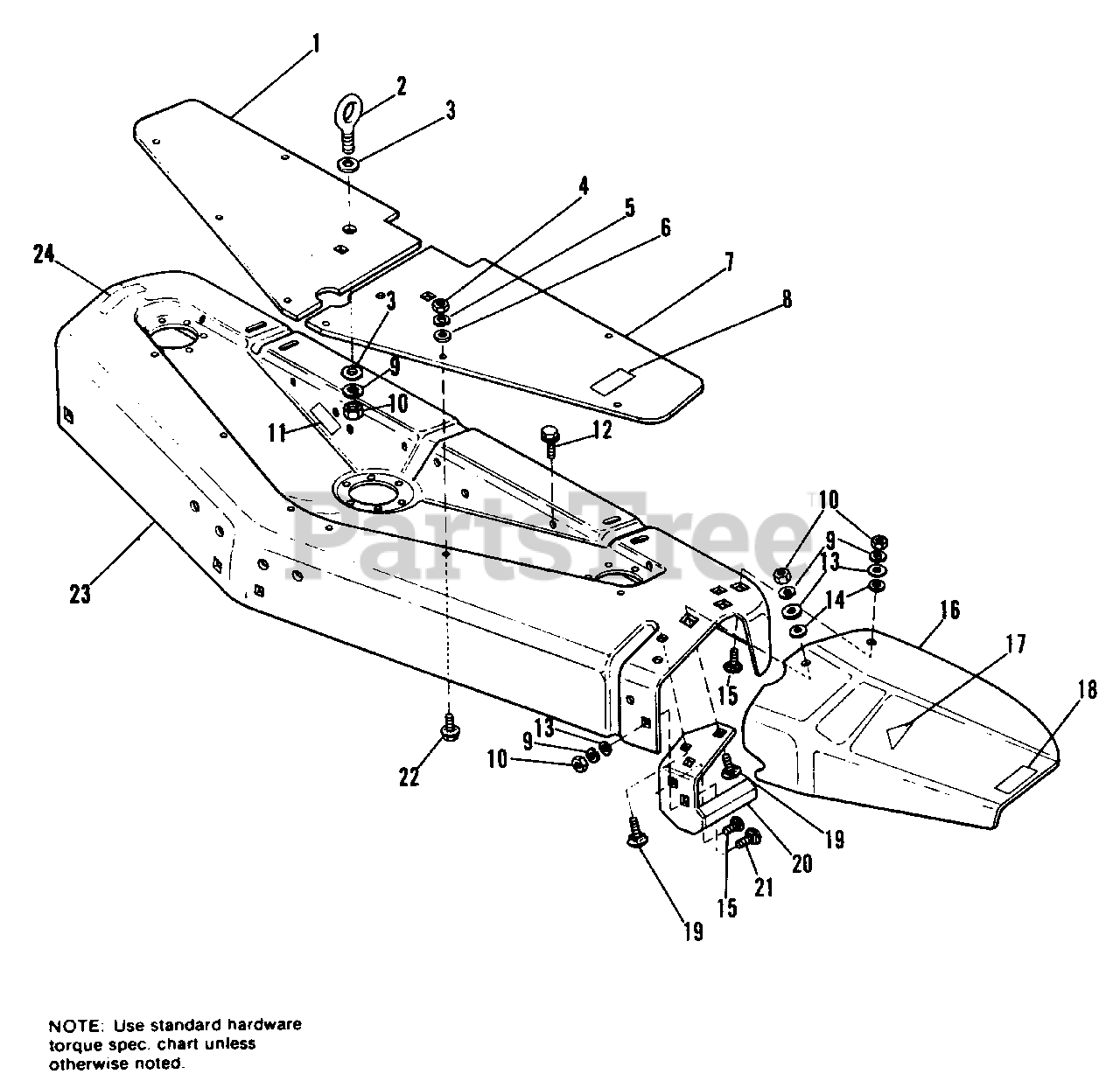

42" Mower Deck Group Parts Diagram

  • Title

1

Simplicity 172049

COVER, R.H.

$

$

Not available

2

Simplicity 2171815SM

EYEBOLT, Chain

$54.99

$

In Stock, only 1 left!

0

3

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

4

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

6

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

7

Simplicity 172414

COVER, L.H.

$

$

Not available

8

Simplicity 2176151

FILM, Safety

$

$

Not available

9

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

10

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

11

Simplicity 106582

GASKET, Felt

$

$

Not available

12

Simplicity 2827428

SCREW, Hex, Washer Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

13

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

14

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 2823232

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

16

Simplicity 1651177SM

DEFLECTOR
(Superseded to 1651177ASM)

$

$

Not available

17

DECAL, OPEI

$

$

Not available

18

Simplicity 176719

DECAL, Danger

$

$

Not available

19

Simplicity 2821933

BOLT, Carriage, 3/8-16 x 1-1/4

$

$

Not available

20

Simplicity 2174167SM

GUARD ASSY., Stone

$

$

Not available

21

Simplicity 2822249

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

22

Simplicity 2825592SM

SCREW, Hex, Washer Hd., Taptite, 1/4-20 x 3/4

$2.99

$

Usually ships in 2-12 days

0

23

Simplicity 2103302SM

HOUSING, Mower

$335.99

$

Usually ships in 2-12 days

0

24

Simplicity 2176720

DECAL, Caution

$

$

Not available
