1690021 - Simplicity 48" Mower Deck 48" Deflector, Stone Guard & Rocker Arm Parts Diagram

48" Mower Deck

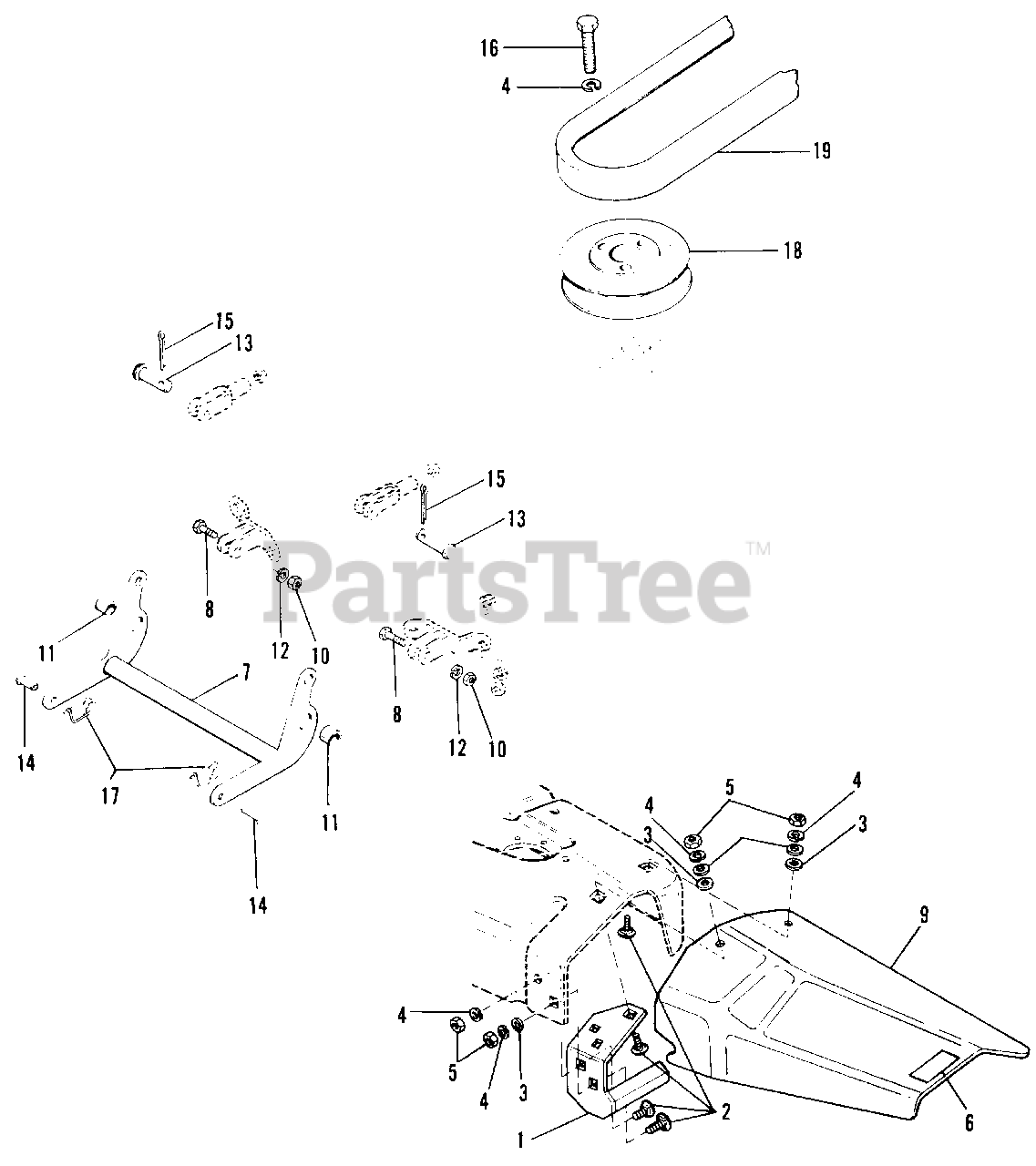

48" Deflector, Stone Guard & Rocker Arm Parts Diagram

  • Title

1

Simplicity 2174127SM

GUARD ASSY, Stone

$

$

Not available

2

Simplicity 2822109

BOLT, Rd. Hd., 3/8-16 x 1-1/4

$

$

Not available

3

Simplicity 1924356SM

WASHER, Special
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

4

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

5

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

6

Simplicity 176719

DECAL, Danger

$

$

Not available

7

Simplicity 2172468A

ARM ASSY, Rocker
(Superseded to 2172468ASM)

$95.99

$

Usually ships in 2-12 days

0

8

Simplicity 2817279

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4

$

$

Not available

9

Simplicity 1651184SM

DEFLECTOR

$

$

Not available

10

Simplicity 2816951

NUT, Hex, 1/2-13

$

$

Not available

11

Simplicity 2105051

SPACER

$

$

Not available

12

Simplicity 2816966

LOCKWASHER, Spring, 1/2

$

$

Not available

13

Simplicity 2154305

PIN, Yoke

$

$

Not available

14

Simplicity 2118053SM

PIN,
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

15

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

16

Simplicity 2822606

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4, Gr. 8

$

$

Not available

17

Simplicity 2176012SM

CLIP, Safety Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 2174190SM

PULLEY

$164.99

$

Usually ships in 2-12 days

0

19

Simplicity 2163011

BELT, "V" Tractor to Mower

$

$

Not available
