169 (2050048U) - Cub Cadet Garden Tractor Starting & Lighting Parts Diagram

Garden Tractor

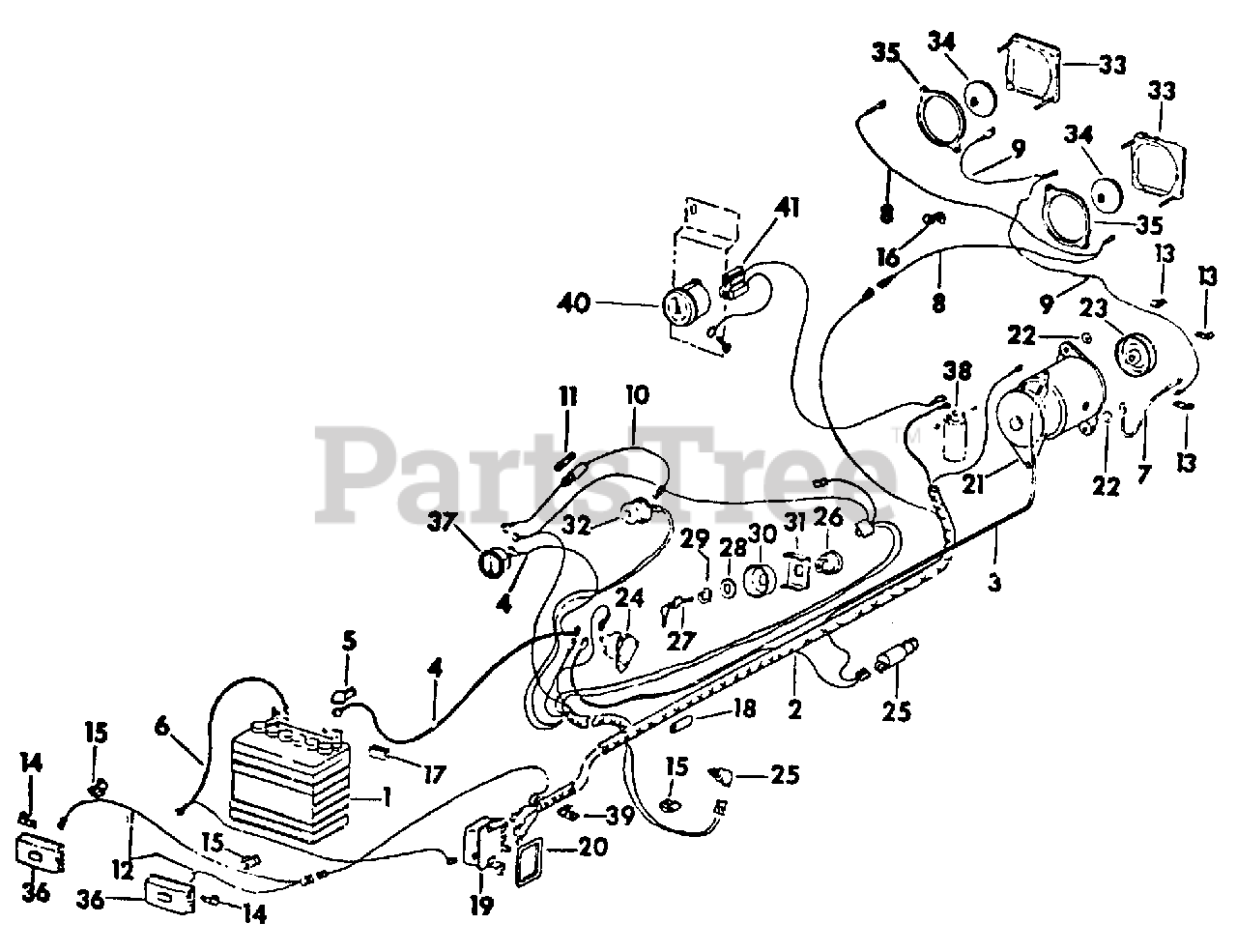

Starting & Lighting Parts Diagram

  • Title

1

Cub Cadet IH-PRLU

Battery, IH Low Maintenance, 12 Volt
(Superseded to 925-1707D)

$

$

Not available

2

Cub Cadet IH-56286-C91

Cable Harness Rework Package
(Superseded to IH-56286-C92)

$

$

Not available

3

Cub Cadet IH-545720-R1

Cable, Magneto Switch to Generator A Terminal

$

$

Currently unavailable

4

Cub Cadet IH-545721-R3

Cable, Battery (Positive)

$

$

Not available

Cub Cadet 710-0451

Bolt, 5/16 X 3/4 Znd Sq Nk Crg

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet IH-364910-R1

Cover, Battery Terminal

$

$

Currently unavailable

6

Cub Cadet IH-55162-C1

Cable, Battery Neg Terminal to Ground

$

$

Not available

Bolt, 1/4 X 3/4 Znd Sq Nk Crg

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.99

$

In Stock, Qty 19

0

Cub Cadet 736-0329

Nut, 1/4 Znd Reg Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

7

Cub Cadet IH-117594-C3

Cable, Engine to Ground

Note: (Replaces IH-545722-R1)

$

$

Currently unavailable

8

Cub Cadet IH-545723-R1

Cable, Headlight

$

$

Not available

9

Cub Cadet IH-545724-R1

Cable, Headlight to Ground

$

$

Not available

10

~NLA

Cable, Switch to Charge Indicator

$

$

Not available

11

Cub Cadet 725-3012

Fuse, 10 Amp Slo-Blo
(Superseded to 925-3012)

$6.49

$

In Stock, only 2 left!

0

12

Cub Cadet IH-545726-R1

Cable, Taillight

$

$

Currently unavailable

13

Cub Cadet 726-3025

Clip, Cable
(Superseded to 726-0272)

$7.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 726-3015

Clip, Taillight
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

15

~NLA

Clip, Safety Starting Switch Cable

$

$

Not available

16

Cub Cadet IH-365584-R1

Clip, Cable

$

$

Currently unavailable

17

~NLA

Grommet, Seat Support Edge

$

$

Not available

18

Cub Cadet IH-549293-R1

Grommet, Frame Edge

$

$

Currently unavailable

19

Cub Cadet IH-545130-R91

Regulator, Voltage

$

$

Currently unavailable

20

~NLA

Gasket, Voltage Regulator

$

$

Not available

Bolt, 1/4-20 X 1/2 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0329

Washer, 1/4 Znd Reg Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.99

$

In Stock, Qty 19

0

21

Starter Generator Assy

Note: (Delco Remy)

$

$

Not available

Cub Cadet 710-0376

Screw, 5/16-18 X 1 Znd Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-23060-R1

Washer, 5/16 Znd Int Tooth Lock

$

$

Currently unavailable

22

Cub Cadet KH-231149

Shim, Starter-Generator Mtg Bolt

$

$

Not available

~NLA

Shim, Starter-Generator Mtg Bolt, .010

$

$

Not available

23

Cub Cadet KH-231278

Pulley, Starter-Generator Drive
(Superseded to KH-231278-S)

$72.99

$

Usually ships in 2-5 days

0

24

Cub Cadet 725-3001

Switch, Magnetic
(Superseded to 925-3001)

$58.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-0119

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0138

Nut, 5/16-18 Znd Hex

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-0349

Nut, 10-32 Znd Hex

$4.99

$

In Stock, Qty 5

0

Cub Cadet 736-0722

Washer, No. 10 Znd Lock

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-0222

Washer, 1/4 Ext Tooth Lock

$5.99

$

In Stock, only 3 left!

0

Nut, 1/4-20 Hex

Note: (Common Hardware, Purchase Locally)

$

$

Not available

25

Cub Cadet 725-3038

Switch Assy, Neutral Starting
(Superseded to 925-3038)

Note: (1 for starting)

$80.99

$

Usually ships in 3-6 days

0

26

Cub Cadet IH-60736-C1

Switch w/Keys, Battery Ignition Key Start
(Superseded to IH-60736-C3)

$90.99

$

In Stock, only 4 left!

0

27

Cub Cadet IH-382458-R2

Key, Ignition Switch
(Superseded to IH-131313-C2)

$12.99

$

In Stock, only 2 left!

0

28

Cub Cadet IH-375431-R1

Washer, Battery Ignition Switch

$11.99

$

In Stock, only 1 left!

0

29

Cub Cadet IH-365502-R1

Nut, Battery Ignition Switch

$11.99

$

Usually ships in 3-6 days

0

30

Cub Cadet IH-402238-R1

Socket, Ignition Switch

$

$

Currently unavailable

31

Cub Cadet IH-402239-R1

Retainer, Ignition Switch

$

$

Not available

32

Cub Cadet IH-394771-R92

Switch, Lighting
(Superseded to IH-394771-R93)

$91.99

$

Usually ships in 3-6 days

0

33

Rim, Headlight

Note: (Order two rims IH-107277-C1 & panel IH-61419-C1)

$

$

Not available

Cub Cadet IH-529860-R1

Screw, 10-32 X 5/8 Slt Pan Hd Mach

$

$

Not available

Cub Cadet IH-138479

Washer, No. 10 Ext Tooth Lock

$

$

Not available

Cub Cadet 712-0349

Nut, 10-32 Hex

$4.99

$

In Stock, Qty 5

0

34

Cub Cadet 725-0222

Unit, Sealed Beam
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

35

Cub Cadet IH-389746-R1

Ring, Headlight Clamp
(Superseded to IH-389746-R2)

$

$

Not available

Nut, 10-32 C-Z Wing

Note: (Common Hardware, Purchase Locally)

$

$

Not available

36

Cub Cadet IH-545616-R1

Taillight Assy

$

$

Not available

Cub Cadet IH-55186-C1

Base

$

$

Not available

Cub Cadet IH-9417863

Lamp, No. 1895
(Superseded to IH-9417863P)

$

$

Not available

Cub Cadet IH-55187-C1

Lens

$

$

Not available

Screw, 10-24 X 5/8 Pan Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-138479

Washer, No. 10 Ext Tooth Lock

$

$

Not available

Nut, 10-24 Znd Hex

Note: (Common Hardware, Purchase Locally)

$

$

Not available

37

Cub Cadet 725-3023

Indicator, Charge
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

38

Coil

Note: (Refer to engine listing)

$

$

Not available

39

Cub Cadet 726-3015

Clip, Right Front Fender Mtg Screw Cable
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

40

Cub Cadet IH-106382-C91

Timer, Maintenance Minder

$

$

Not available

41

~NLA

Cable, Maintenance Minder

$

$

Not available
