169 (2050048U) - Cub Cadet Garden Tractor Engine-K341-16 Hp Parts Diagram

Garden Tractor

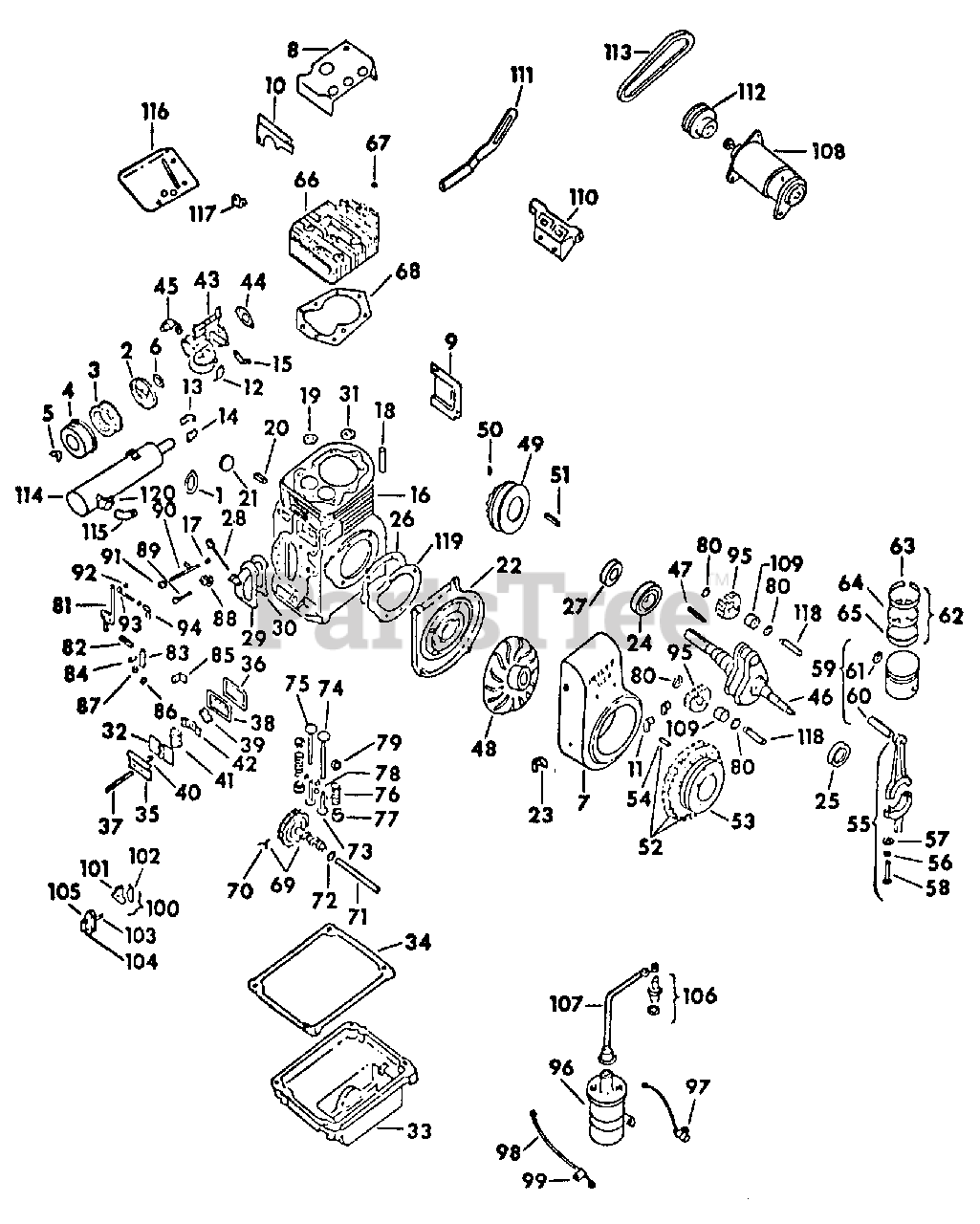

Engine-K341-16 Hp Parts Diagram

  • Title

1

Cub Cadet KH-45-100-01

Nut, Exhaust Muffler Elbow Lock
(Superseded to KH-45-100-01-S)

$18.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-47-094-02

Base, Air Cleaner

$

$

Not available

Cub Cadet KH-237423

Seal, Air Cleaner

$

$

Not available

Screw, 10-32 X 3/8 Znd Fil Hd Slt Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Washer, No. 10 Int Tooth Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

3

Cub Cadet 759-3359

Element, Air Cleaner Filter
(Superseded to 4588302S1C)

$27.99

$

In Stock, only 3 left!

0

4

Cub Cadet KH-47-082-02

Cover, Air Cleaner

$

$

Currently unavailable

5

Cub Cadet KH-X-276-7

Nut, Air Cleaner Wing
(Superseded to KH-25-100-15-S)

$

$

Not available

6

Cub Cadet KH-275341

Gasket, Air Cleaner

$6.49

$

Usually ships in 2-5 days

0

7

~NLA

Housing Assy, Blower

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/8 C-Z Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0463

Washer, .281 X .625 X .065 Znd

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet KH-45-124-01

Baffle, Cylinder Head Air

$

$

Not available

Screw w/Spring Lock Washer 1/4-20 X 3/8 C-Z Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

9

Cub Cadet KH-45-063-01

Baffle, Cylinder Air

$

$

Not available

Cub Cadet IH-9409106

Screw w/Spring Lock Washer, 1/4-20 X 1/2 C-Z Hex Hd Mach

$

$

Not available

10

Cub Cadet KH-235652

Baffle, Housing Side Air

$

$

Not available

11

Cub Cadet IH-263515-R91

Clip, Throttle Cable

$

$

Currently unavailable

Cub Cadet IH-9409106

Screw w/Spring Lock Washer, 1/4-20 X 1/2 C-Z Hex Hd Mach

$

$

Not available

12

Cub Cadet KH-235603

Clip, Choke Cable

$

$

Not available

13

Cub Cadet KH-A-237559

Bracket, Throttle Cable
(Superseded to KH-A-237559-S)

$

$

Not available

Cub Cadet KH-X-131-1

Screw w/Int Tooth Lock Washer, 10-24 X 3/8 C-Z Slt Rd Hd Mach

$

$

Not available

14

Cub Cadet KH-235603

Clip, Throttle Cable

$

$

Not available

15

Cub Cadet KH-A-236919

Bracket, Choke

$

$

Not available

Cub Cadet 736-0463

Washer, 9/32 X 5/8 X .062 C-Z

$4.49

$

In Stock, Qty 20+

0

16

Block, Cylinder

Note: (Order short block KH-45-522-41)

$

$

Not available

Screw w/Spring Lock Washer, 3/8-16 X 1-1/2 C-Z Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

17

Cub Cadet KH-234866

Bearing, Needle

Note: (Governor cross shaft)

$

$

Not available

18

Cub Cadet KH-235007-S

Guide, Valve

$

$

Not available

19

Cub Cadet KH-230265

Insert, Exhaust Valve

$

$

Not available

20

Cub Cadet KH-235125-S

Shaft, Governor

$87.99

$

Usually ships in 2-5 days

0

21

Cub Cadet IH-172548

Plug, 1-1/8 Expansion (Crankcase)

$

$

Currently unavailable

22

Cub Cadet KH-45-156-03

Plate, Crankcase Bearing

$

$

Not available

Screw w/Spring Lock Washer 3/8-16 X 1 C-Z Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

23

Cub Cadet IH-370535-R1

Clip, Cable

$

$

Not available

24

Cub Cadet IH-ST436

Bearing, Crankcase Ball
(Superseded to IH-ST436P)

$97.99

$

Usually ships in 3-6 days

0

25

Cub Cadet KH-47-032-06

Seal, Front Plate Oil

$

$

Not available

26

Cub Cadet KH-235070

Gasket, Bearing Plate, .010

$

$

Not available

27

Cub Cadet KH-47-032-07

Seal, Crankcase Rear Oil

$

$

Not available

28

Cub Cadet KH-237620

Dipstick

$

$

Not available

29

Cub Cadet KH-237623

Cover, Camshaft

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 5/8 C-Z Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

30

Cub Cadet KH-235025

Gasket, Camshaft Cover
(Superseded to KH-235025-S)

$10.99

$

In Stock, Qty 6

0

31

Cub Cadet KH-230265

Insert, Intake Valve

$

$

Not available

32

Cub Cadet KH-275144

Gasket, Valve Cover

$

$

Not available

33

Cub Cadet KH-47-199-09

Base, Oil Pan

$

$

Not available

Cub Cadet 710-0514

Screw, 3/8-16 X 1 Znd Hex Hd Cap

$4.49

$

In Stock, Qty 20+

0

Cub Cadet KH-X-708-1

Plug, Drain

$

$

Not available

34

Cub Cadet KH-235353

Gasket, Oil Pan Base

$11.99

$

In Stock, only 1 left!

0

35

Cub Cadet KH-A-235418-S

Cover, Breather

$

$

Not available

36

Cub Cadet KH-235048

Gasket, Breather

$

$

Not available

37

Cub Cadet KH-275220

Stud, Breather Cover

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 17

0

Washer, 1/4 Med Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

38

Cub Cadet KH-235631

Plate Assy, Breather

$

$

Not available

39

Cub Cadet KH-235047

Reed, Breather
(Superseded to KH-47-402-01-S)

$37.99

$

In Stock, only 1 left!

0

40

Cub Cadet KH-231032

Seal, Breather

$

$

Not available

41

Cub Cadet KH-235118

Filter, Breather

$

$

Not available

42

Cub Cadet KH-235117

Baffle, Breather

$

$

Not available

43

Carburetor Assy

Note: (For components see list of parts under details of carburetor)

$

$

Not available

Cub Cadet KH-X-770-1

Screw w/Internal Tooth Lock Washer, 5/16-18 X 1 Slt Hex Hd Cap

$

$

Not available

44

Cub Cadet KH-271030

Gasket, Carburetor

$7.49

$

Usually ships in 2-5 days

0

45

Cub Cadet IH-401967-R1

Elbow, Carburetor to Fuel Line

$

$

Not available

46

Cub Cadet KH-45-142-25

Crankshaft

$

$

Not available

47

Cub Cadet IH-532004-R1

Key, 3/16 X 3/8 Sq Parallel
(Superseded to KH-X-286-17)

$

$

Not available

48

Cub Cadet KH-237297

Flywheel

$

$

Not available

49

Cub Cadet KH-231591

Pulley w/Clutch Drive Plate, Flywheel

$

$

Not available

50

Cub Cadet KH-X-60-50

Screw, Flywheel Pulley Set

$

$

Not available

51

Cub Cadet IH-452779-R1

Key, 1/4 X 7/8 Sq Parallel
(Superseded to IH-452779-R2)

$

$

Not available

52

Cub Cadet KH-41-071-03

Cup Assy, Flywheel Drive

$

$

Not available

~NLA

Screw, 1/4-20 X 5/8 Truss Hd Mach

$

$

Not available

Cub Cadet 736-0222

Washer, 1/4 Int Tooth Lock

$5.99

$

In Stock, only 3 left!

0

~NLA

Washer, Grass Screen

$

$

Not available

Cub Cadet IH-125267

Nut, 5/8-18 C-Z Slt Hex

$

$

Not available

Cub Cadet KH-X-25-76

Washer, 5/8

$

$

Currently unavailable

Screw, 8-32 X 1/4 C-Z Type F Hex Hd Tap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

53

Cub Cadet KH-47-755-17

Screen, Drive Cup Grass

$

$

Not available

54

Cub Cadet IH-385293-R1

Pin, Flywheel Drive Cup
(Superseded to KH-X-56-7)

$

$

Not available

55

Cub Cadet KH-45-067-22

Rod Assy, Connecting, Std

$

$

Not available

Cub Cadet KH-45-067-23

Rod Assy, Connecting, .010 U/S

$

$

Not available

56

Washer, Connecting Rod Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

57

Cub Cadet 736-0140

Washer, Connecting Rod

$7.49

$

In Stock, Qty 6

0

58

Cub Cadet IH-117116-C1

Screw, Connecting Rod

$

$

Not available

59

Cub Cadet KH-45-874-01

Piston Assy, Std

$

$

Not available

Cub Cadet KH-45-874-03

Piston Assy, .010 O/S

$

$

Not available

Cub Cadet KH-45-874-04

Piston Assy, .020 O/S

$

$

Not available

Cub Cadet KH-45-874-05

Piston Assy, .030 O/S

$

$

Not available

60

Pin, Piston

Note: (Not serviced separately, order piston assy)

$

$

Not available

61

Cub Cadet KH-47-018-01

Retainer, Piston Pin

$

$

Not available

62

Cub Cadet KH-45-108-06

Ring Set, Piston, Std

$

$

Not available

Cub Cadet KH-45-108-07

Ring Set, Piston, .010 O/S

$

$

Not available

Cub Cadet KH-45-108-08

Ring Set, Piston, .020 O/S

$

$

Not available

Cub Cadet KH-45-108-09

Ring Set, Piston, .030 O/S

$

$

Not available

63

Ring, Top Compression

Note: (Order ring set)

$

$

Not available

64

Ring, Center Compression

Note: (Order ring set)

$

$

Not available

65

Ring, Oil Control

Note: (Order ring set)

$

$

Not available

66

Cub Cadet KH-45-015-09

Head, Cylinder

$

$

Not available

Cub Cadet IH-138542

Washer, 3/8 Int Tooth Lock

$

$

Not available

Nut, 3/8-16 Hex

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 712-0342

Nut, 3/8-16 Hex Jam
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

Cub Cadet KH-X-400-89

Spacer

$

$

Not available

Cub Cadet KH-X-400-71

Spacer, Pipe
(Superseded to KH-25-112-14-S)

$

$

Not available

Cub Cadet KH-237522

Stud, Cylinder Head
(Superseded to KH-237522-S)

$

$

Not available

Washer, 3/8 Hv Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

67

Cub Cadet KH-270889

Washer, Cylinder Head

$

$

Not available

68

Cub Cadet KH-45-041-17

Gasket, Cylinder Head

$

$

Not available

69

Cub Cadet KH-47-010-09

Camshaft Assy

$

$

Not available

70

Cub Cadet KH-47-089-01

Spring, Camshaft Actuating

$

$

Not available

71

Cub Cadet KH-47-380-09

Pin, Camshaft

$

$

Not available

72

Cub Cadet KH-275066

Shim, Camshaft, .005

$

$

Not available

Cub Cadet KH-275067

Shim, Camshaft, .010

$

$

Not available

73

Cub Cadet KH-D-235327

Tappet Assy, Valve

$

$

Not available

74

Cub Cadet KH-235582

Valve, Intake

$

$

Not available

75

Cub Cadet KH-237672

Valve, Exhaust

$

$

Not available

76

Cub Cadet KH-235168

Spring, Valve

$

$

Not available

77

Cub Cadet KH-52-413-01

Rotator, Valve

$

$

Not available

78

Cub Cadet IH-46209D

Key, Valve Spring

Note: (Order in sets of two)

$

$

Currently unavailable

79

Cub Cadet KH-235011

Retainer, Valve Spring Upper
(Superseded to KH-235011-S)

$6.49

$

In Stock, only 2 left!

0

80

Cub Cadet KH-47-755-01

Kit, Spacer
(Superseded to KH-47-755-01-S)

$70.99

$

Usually ships in 2-5 days

0

81

Cub Cadet KH-A-237653

Lever, Governor

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 17

0

Screw, 1/4-20 X 1-1/4 Znd Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0463

Washer, 9/32 X 5/8 X .062 C-Z

$4.49

$

In Stock, Qty 20+

0

82

Cub Cadet KH-235496

Spring, Governor

$

$

Not available

83

Cub Cadet KH-235086

Bracket, Speed Control

$

$

Not available

84

Cub Cadet KH-48-755-10

Clamp, Control Bracket

$22.99

$

Usually ships in 2-5 days

0

85

Cub Cadet KH-235084

Bracket, Adjusting Screw

$

$

Not available

Screw w/Lock Washer, 1/4-20 X 1-1/4 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet KH-X-25-63

Washer, 17/64 X 1/2 X .062 C-Z

$

$

Not available

86

Cub Cadet KH-235085

Spacer, Adjusting Screw
(Superseded to KH-235085-S)

$

$

Not available

87

Cub Cadet KH-275690

Washer, Adjusting Screw Spacer

$

$

Not available

88

Cub Cadet KH-A-235743-S

Gear Assy, Governor

$79.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-237022

Spacer, Shim

$

$

Not available

89

Cub Cadet KH-231355

Pin, Governor Stop
(Superseded to KH-231355-S)

$10.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-12

Washer, 17/64 X 1/2 X .062, Copper

$

$

Not available

90

Cub Cadet KH-A-235256-S

Shaft Assy, Governor Cross

$46.99

$

Usually ships in 2-5 days

0

91

Cub Cadet KH-235476

Bushing, Cross Shaft

$

$

Not available

Cub Cadet IH-55095-C1

Spacer
(Superseded to KH-25-112-17-S)

$9.49

$

Usually ships in 2-5 days

0

92

Cub Cadet KH-235277

Rod, Ball Joint Throttle

$

$

Not available

93

Cub Cadet BS-93307

Retainer, Throttle Rod

$5.99

$

In Stock, only 3 left!

0

94

Cub Cadet IH-19726-R1

Joint, 10-32 X 1/4 Ball
(Superseded to IH-19726-R2)

$

$

Not available

Cub Cadet 712-0349

Nut, 10-32 Znd Hex Mach Screw

$4.99

$

In Stock, Qty 5

0

Washer, No. 10 Med Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

95

Cub Cadet KH-45-043-03

Gear Assy, Crankshaft Balance

Note: (Order spacer kit IH-61147-C91 when replacement spacers are required)

$

$

Not available

Cub Cadet IH-106347-C1

Spacer, Balance Gear

$

$

Not available

96

Cub Cadet KH-231281

Coil, Ignition
(Superseded to KH-41-519-21-S)

$149.99

$

In Stock, only 1 left!

0

Screw w/Spring Lock Washer, 1/4-20 X 3/8 Znd Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0173

Washer, 17/64 X 3/4 X .062 C-Z

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0463

Washer, 9/32 X 5/8 X .062 Znd

$4.49

$

In Stock, Qty 20+

0

97

Cub Cadet IH-62188-C1

Condenser, Ignition Coil
(Superseded to KH-230722-S)

$31.99

$

In Stock, only 1 left!

0

98

Cub Cadet KH-237625

Cable Assy, Condenser to Breaker

$

$

Not available

99

Cub Cadet KH-275303

Clip, Condenser to Breaker Cable

$

$

Not available

100

Not used in this application

$

$

Not available

101

Cub Cadet IH-62189-C1

Breaker Contact Set
(Superseded to KH-47-150-03)

$

$

Not available

Screw w/Washer, 8-32 X 1/4 Znd Slt Pan Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

102

Cub Cadet KH-47-150-03

Bracket, Breaker Point

$

$

Not available

103

Cub Cadet KH-47-411-04

Rod, Breaker

$

$

Not available

104

Cub Cadet KH-232535

Cover, Breaker
(Superseded to KH-232535-S)

$

$

Not available

Cub Cadet KH-X-131-1

Screw w/Internal Tooth Lock Washer, 10-24 X 3/8 C-Z Slt Rd Hd Mach

$

$

Not available

105

Cub Cadet KH-52-041-11

Gasket, Breaker Cover
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 3 left!

0

106

Cub Cadet IH-H10C

Plug, Spark (Champion)
(Superseded to 759-3333)

$5.99

$

In Stock, only 3 left!

0

107

Cub Cadet KH-238057

Kit, Hi-Tension Cable Lead
(Superseded to KH-238057-S)

$

$

Not available

108

Motor Generator

Note: (For components see list of parts under details of motor generator)

$

$

Not available

Cub Cadet 710-0376

Screw, 5/16-18 X 1 Znd Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-23060-R1

Washer, 5/16 Znd Int Tooth Lock

$

$

Currently unavailable

109

Cub Cadet IH-532184-R91

Bearing Assy, Needle
(Superseded to IH-532184-R92)

$44.99

$

Usually ships in 3-6 days

0

110

Cub Cadet KH-235373

Bracket, Motor Generator Mounting

$

$

Not available

Screw, 3/8-16 X 1-1/8 Znd Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Washer, 3/8 Med Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet KH-231149

Shim, Mounting Bolt

$

$

Not available

~NLA

Shim, Mounting Bolt

$

$

Not available

111

Cub Cadet KH-231273

Brace, Motor Generator Adjusting
(Superseded to KH-231273-S)

$63.99

$

Usually ships in 2-5 days

0

Cub Cadet 710-0376

Screw, 5/16-18 X 1 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Screw, 3/8-16 X 7/8 Znd Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Washer, 5/16 Med Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-20893-R1

Washer, 11/32 X 1 X 11 Ga C-Z

$

$

Currently unavailable

Cub Cadet IH-138542

Washer, 3/8 Int Tooth Lock

$

$

Not available

Washer, 5/16 C-Z Int Tooth Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

112

Cub Cadet KH-231278

Pulley, Motor Generator Drive
(Superseded to KH-231278-S)

$72.99

$

Usually ships in 2-5 days

0

113

Cub Cadet IH-401960-R1

Belt, Motor Generator Drive

$17.99

$

In Stock, only 4 left!

0

114

Cub Cadet IH-61274-C1

Muffler, Exhaust

$

$

Not available

Cub Cadet 710-0376

Screw, 5/16-18 X 1 Znd Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Washer, 5/16 X 3/4 X .062 C-Z

Note: (Common Hardware, Purchase Locally)

$

$

Not available

115

Cub Cadet KH-45-054-04

Elbow, Exhaust

$

$

Not available

116

~NLA

Baffle, Heat

$

$

Not available

Cub Cadet 736-0140

Washer, .406 X .812 X .065 Znd

$7.49

$

In Stock, Qty 6

0

Cub Cadet 712-0798

Nut, 3/8-16 Znd Reg Lock

$4.49

$

In Stock, Qty 6

0

117

~NLA

Strap, Lifting

$

$

Not available

118

Cub Cadet KH-236559

Pin, Crankshaft

$

$

Not available

Cub Cadet IH-22824-R1

Retainer

$

$

Currently unavailable

119

Cub Cadet KH-235757

Gasket, Bearing Plate

$

$

Not available

120

Cub Cadet 726-3016

Clamp, Muffler

$

$

Not available

Cub Cadet 710-0342

Bolt, 3/8-16 X 1-1/4 Znd Hex Hd Mach
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0798

Nut, 3/8-16 Znd Hex

$4.49

$

In Stock, Qty 6

0

Cub Cadet KH-47-755-01

Kit,
(Superseded to KH-47-755-01-S)

Note: Includes Balanced Gear Spacer Retainer Spacer .020 Spacer .005 Spacer .010 Spacer

$70.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-45-004-03

Kit, Engine Gasket Gasket, Air Horn

$

$

Not available

Cub Cadet KH-235757

Gasket, Bearing Plate

$

$

Not available

Cub Cadet KH-52-041-11

Gasket, Breaker Cover
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 3 left!

0

Cub Cadet KH-235025

Gasket, Camshaft Cover
(Superseded to KH-235025-S)

$10.99

$

In Stock, Qty 6

0

Cub Cadet KH-45-041-17

Gasket Kit,

Note: Includes Cylinder Head Gasket, Exhaust Gasket, Fuel Pump Gasket, Oil Fill

$

$

Not available

Cub Cadet KH-235353

Gasket, Oil Pan

$11.99

$

In Stock, only 1 left!

0

Cub Cadet KH-275144

Gasket, Valve Cover

$

$

Not available

Cub Cadet KH-231032

Seal, Breather

$

$

Not available

Cub Cadet KH-235070

Gasket, Bearing Plate

$

$

Not available

Cub Cadet KH-41-041-03

Gasket, Oil Pan

$

$

Not available

Cub Cadet KH-271030

Gasket, Carburetor

$7.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-230048

Gasket, Valve Cover

$

$

Not available
