16890 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY (MODEL NO. 16880) Parts Diagram

Walk-Behind Mower

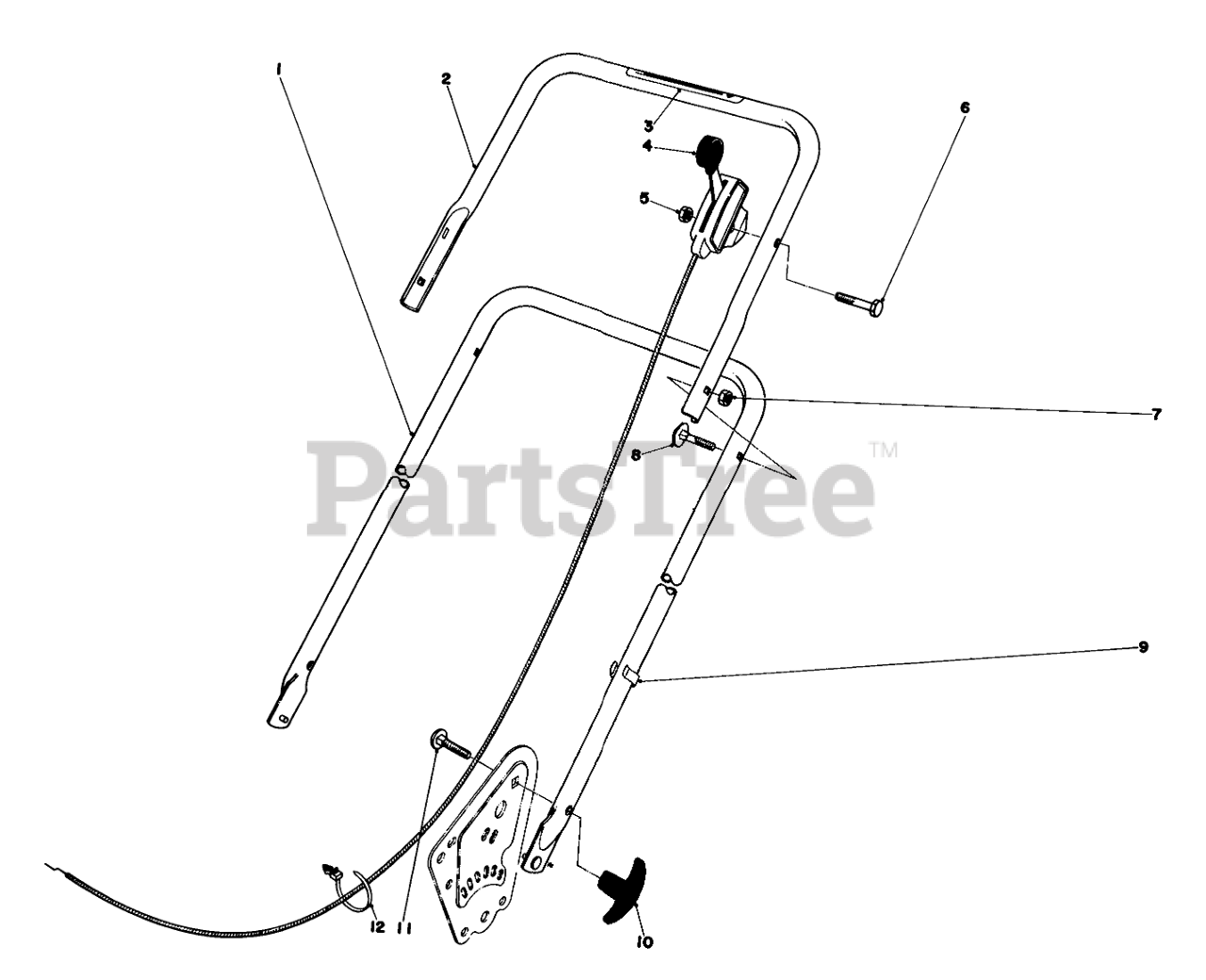

HANDLE ASSEMBLY (MODEL NO. 16880) Parts Diagram

  • Title
1

Toro 38-0810

Lower Handle

$

$

Not available

2

Toro 38-0620

Upper Handle

$

$

Not available

3

Toro 29-6290

Decal

$

$

Not available

4

Toro 33-2563

Throttle Control
(Superseded to 46-6040)

$

$

Not available

5

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

6

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

8

Toro 6-6330

HANDLE SCREW

$

$

Not available

9

$

$

Not available

10

$

$

Not available

11

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

12

Toro 3290-410

TIE-MOUNT, PUSH

$

$

Not available

Toro 8-9989

Loose Parts Bag

Note: Not illustrated

$

$

Not available
