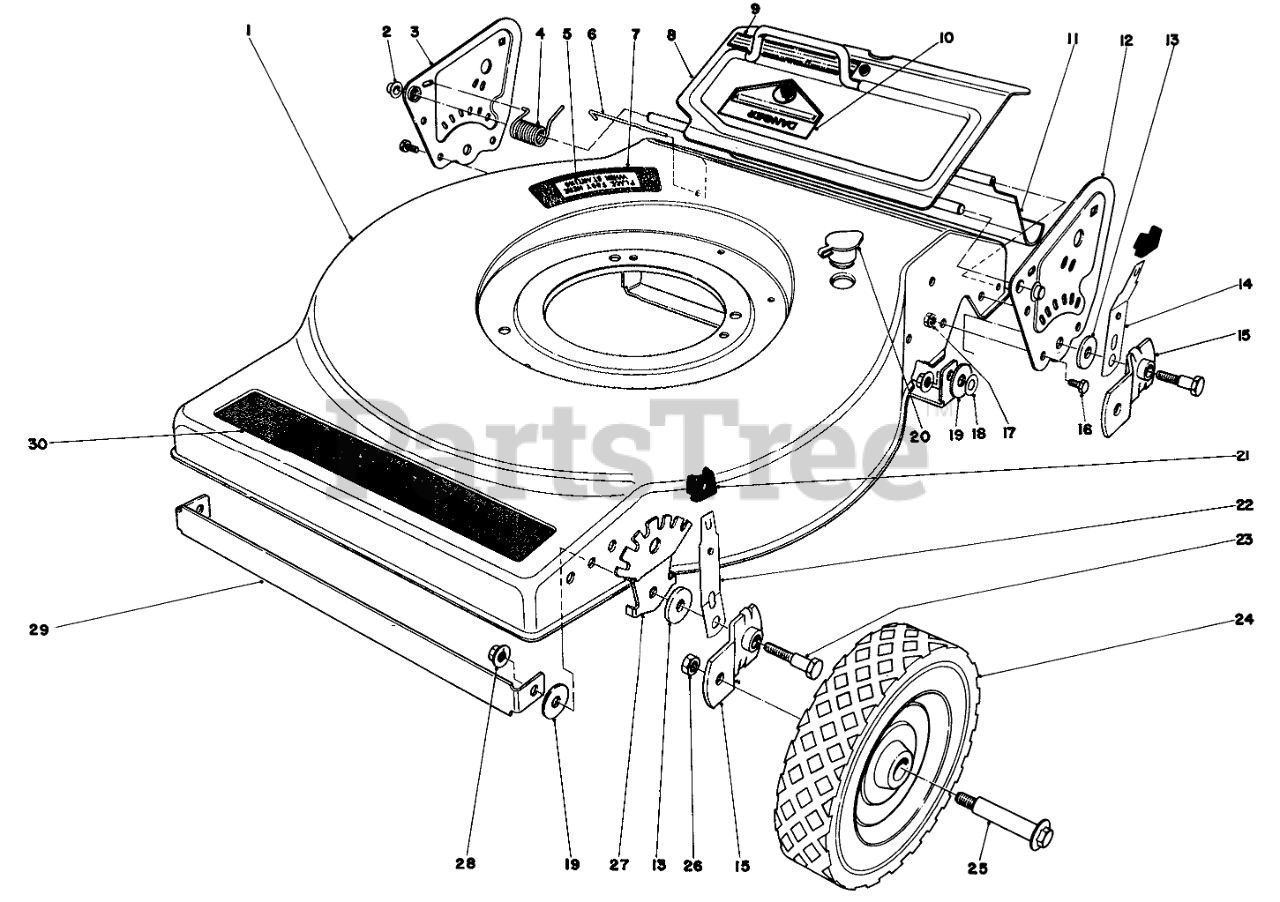

16890 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) MOWER HOUSING (MODEL NO. 16880) Parts Diagram

Walk-Behind Mower

MOWER HOUSING (MODEL NO. 16880) Parts Diagram

  • Title

1

Toro 8-7799

Housing

$

$

Not available

2

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

Usually ships in 3-6 days

0

3

Toro 37-4380

Side Plate R.H.

$

$

Not available

4

Toro 37-9420

TORSION SPRING

$

$

Not available

5

Toro 36-2820

Decal Step Pad

$

$

Not available

6

Toro 33-3204

SHIELD ROD

$

$

Not available

7

Toro 37-0030

PAD STEP

$

$

Not available

8

Toro 38-0700

Rear Door

$

$

Not available

9

Toro 39-9090

Decal-Door

$

$

Not available

10

Toro 39-5770

DECAL-DANGER

$9.49

$

In Stock, Qty 8

0

11

Toro 36-6330

SAF SHIELD REAR

$

$

Not available

12

Toro 37-4390

Side Plate L.H.

$

$

Not available

13

Toro 33-0390

PIVOT WASHER

$4.49

$

In Stock, only 2 left!

0

14

Toro 37-4830

Spring Arm
(Superseded to 44-1020)

$

$

Not available

15

Toro 24-7710

PIVOT ARM ASM A

$156.99

$

Usually ships in 3-6 days

0

Toro 23-9120

PIVOT ARM ASM B

Note: Not illustrated

$

$

Not available

16

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

17

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 5-1350

WASHER
(Superseded to 5-4460)

$8.49

$

In Stock, Qty 20+

0

20

Toro 6-4500

WASHOUT PLUG

$

$

Not available

21

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 20+

0

22

Toro 25-8000

SPRING ARM ASM

$

$

Not available

23

Toro 36-6670

PIVOT SCREW

$

$

Not available

24

Toro 12-2620

Wheel Assembly
(Superseded to 99-5256)

$

$

Not available

25

Toro 3-2652

Bolt

$

$

Not available

26

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

27

Toro 36-6780

Quadrant

$

$

Not available

28

Toro 32128-30

NUT

$3.49

$

Usually ships in 3-6 days

0

29

Toro 36-6830

DECK SUPPORT

$

$

Not available

30

Toro 39-9060

Decal-Deck

$

$

Not available
