16890 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) ENGINE ASSEMBLY (MODEL NO. 16890) Parts Diagram

Walk-Behind Mower

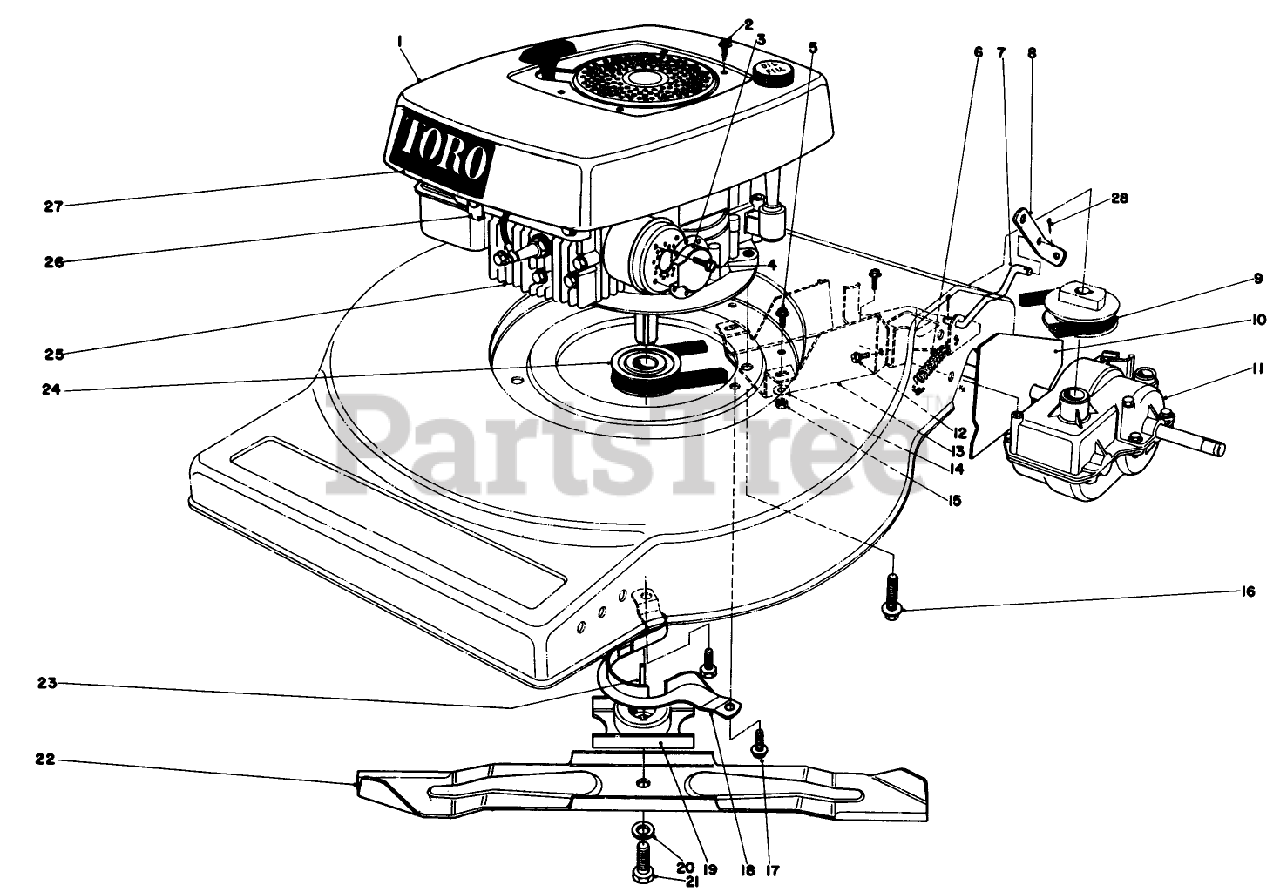

ENGINE ASSEMBLY (MODEL NO. 16890) Parts Diagram

  • Title

1

Toro 28-6772

SHROUD

$

$

Not available

2

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

3

Toro 2210-184

Deflector

$

$

Not available

4

Toro 2210-173

SCREW W/ENGINE

$

$

Not available

5

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

6

Toro 23-7750

IDLER SPRING

$34.99

$

Usually ships in 3-6 days

0

7

Toro 38-9160

Link Clutch

$

$

Not available

8

Toro 38-9140

Bracket Clutch Pivot

$

$

Not available

9

Toro 38-0480

V-BELT

$

$

Not available

10

Toro 38-7740

GRASS SHIELD

$

$

Not available

11

Toro 8-7819

Gear Case Assembly Complete

$

$

Not available

12

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 38-0510

COVER-BELT

$

$

Not available

14

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

16

Toro 11-4590

PAD-BUMPER

$

$

Currently unavailable

17

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

18

Toro 39-1840

BELT GUIDE

$

$

Not available

19

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

20

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

21

Toro 3-5246

SPECIAL SCREW

$

$

Not available

22

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

23

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

24

Toro 21-5580

DRIVER PULLEY

$

$

Not available

25

Toro 221-599

Engine

$

$

Currently unavailable

26

Toro 38-7580

Bracket Control

$

$

Not available

27

Toro 39-9050

Decal Shroud
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

28

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0
